Tractor · 2011Unverified
Kioti DS3510
Kioti DS3510 — DS Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1314 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Final drivesmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Daedong 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)25.4 kWReference
Daedong 3A165LWDReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)25.4 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque106.0 NmReference
Torque RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)20.6 kWReference
Typeopen centerReference
Total flow48.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1015 kgReference
Rear PTOliveReference
Clutchtwo-stage dry discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1314 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight484 kgReference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front8.50-15Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear15-19.5Reference
Length287 cmReference
Width131 cmReference
Height (ROPS)225 cmReference
Ground clearance27 cmReference
Front tread110 cmReference
Rear tread102 to 126 cmReference
Kioti DS3510 attachments

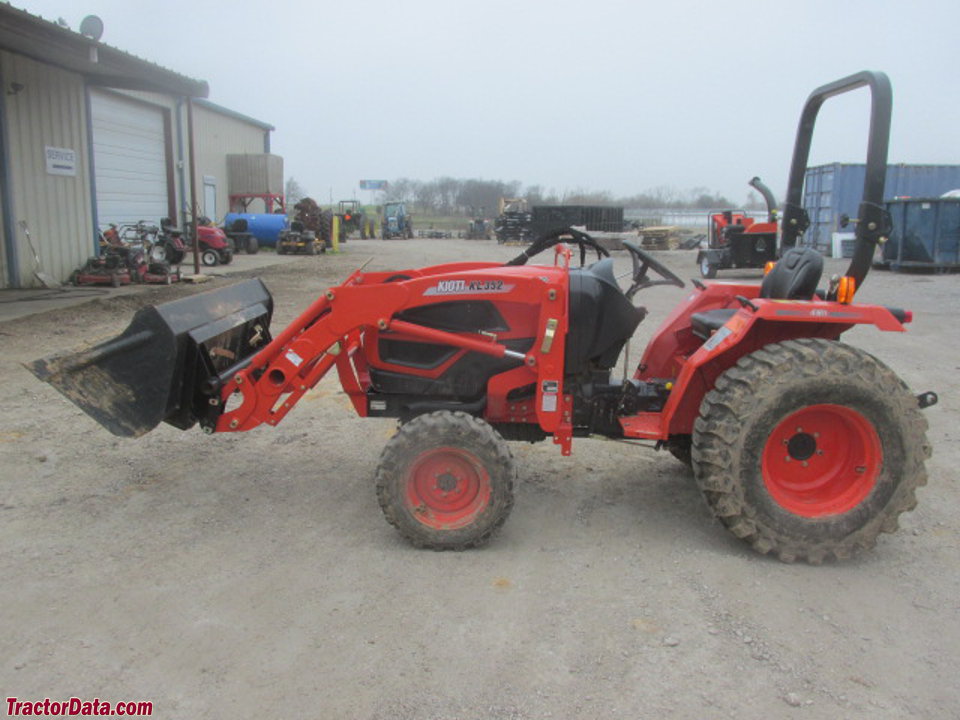

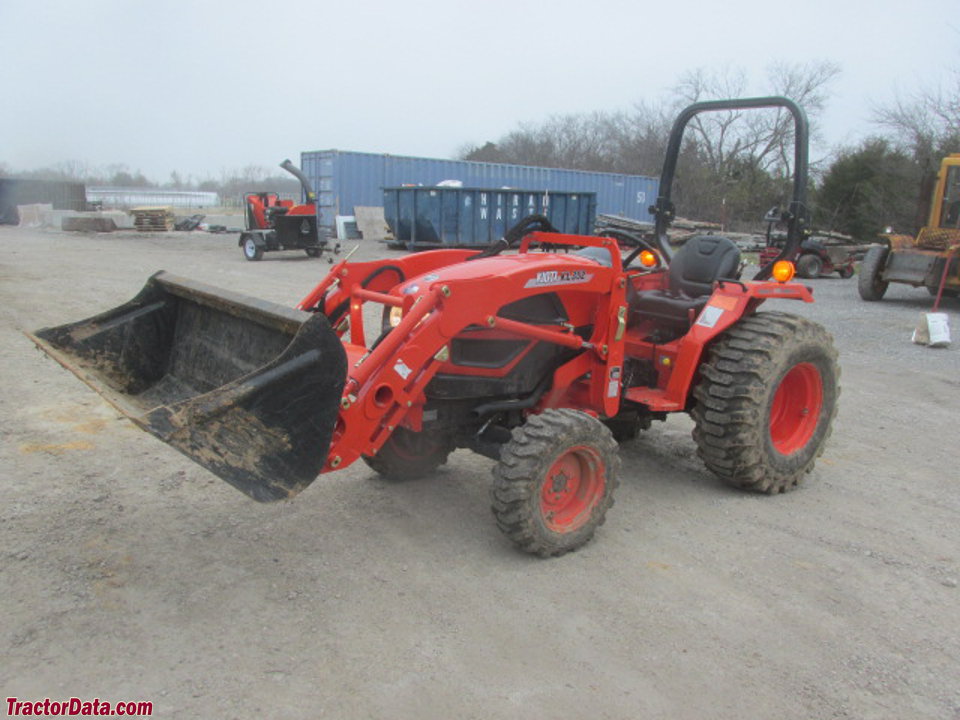

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2475 Backhoe
Backhoe typeKioti KB2475 BackhoeReference
Transport height212 cmReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
