Tractor · 2009Unverified

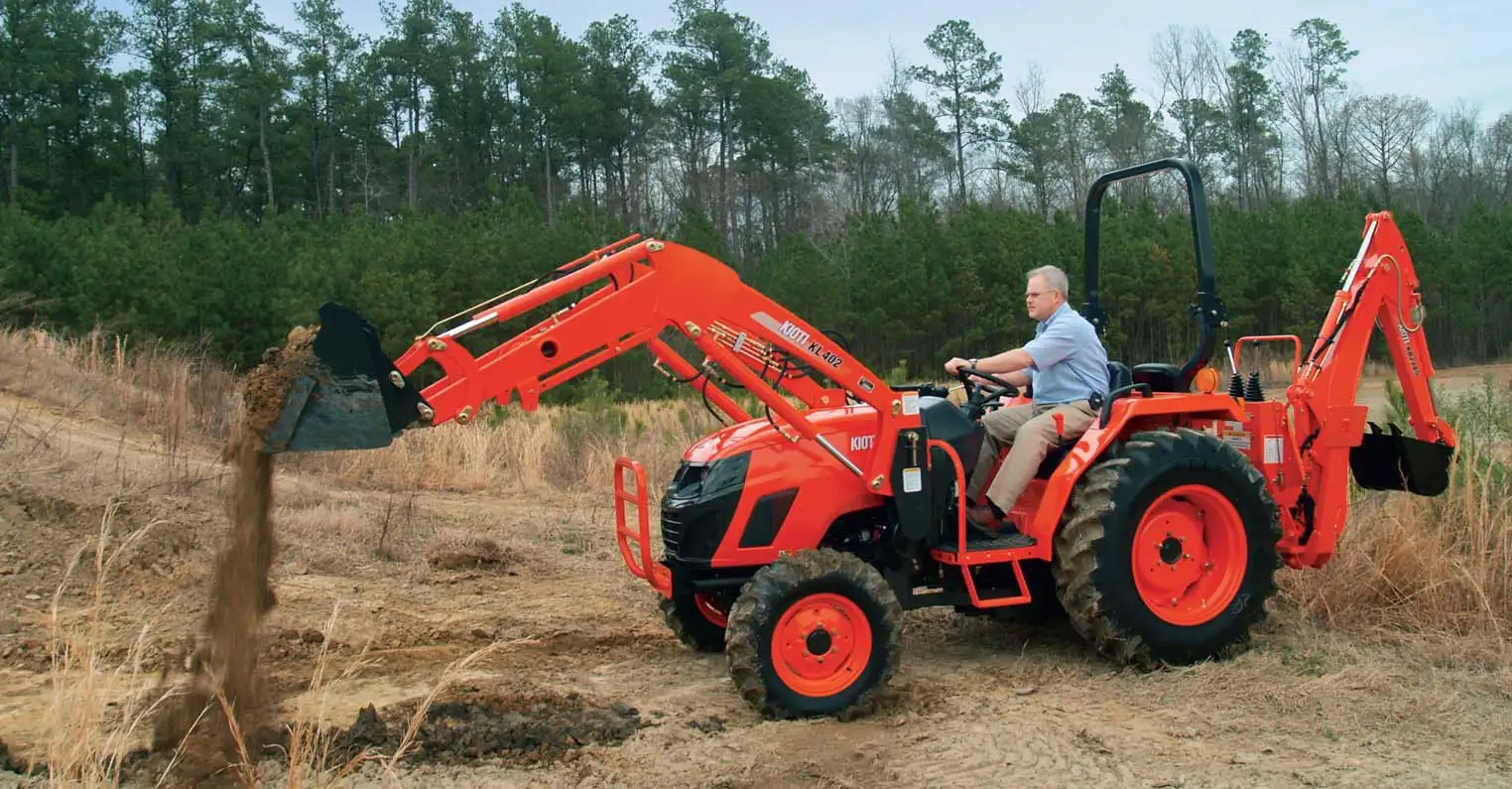

Kioti DS4110
Kioti DS4110 — DS Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
1599 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Foldable ROPS. Optional canopy.Reference
Engine
Daedong 2.0L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)30.6 kWReference
Daedong 4A200LWMReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.0 LReference
Bore/Stroke83 x 92 mmReference
EmissionsInterim Tier IVReference
Power (gross)30.6 kWReference
Air cleanerdry cartridgeReference
Rated RPM2600Reference
Torque129.8 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.4 kWReference
Typeopen centerReference
Valves0 to 2Reference
Total flow49.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase184 cmReference
Weight1599 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Weight499 kgReference
Ag front8-16Reference
Ag rear13.6-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length312 cmReference
Width176 cmReference
Height (ROPS)258 cmReference
Ground clearance36 cmReference
Front tread138 cmReference
Rear tread127 to 147 cmReference
Kioti DS4110 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
