Tractor · 2009Unverified

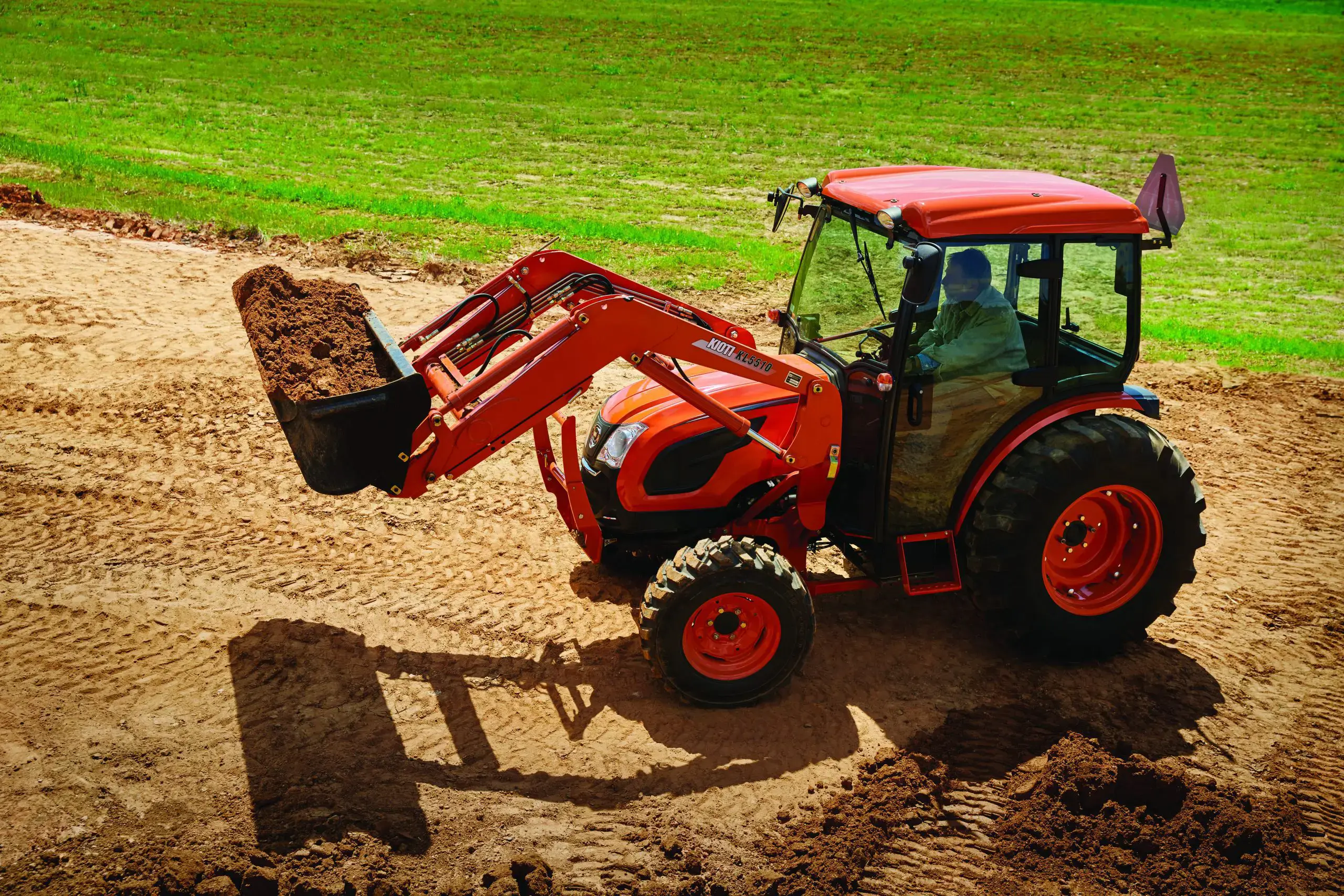

Kioti DS5010

Name: Kioti DS5010
Brand: Kioti

Kioti DS5010 — Compact Utility tractor · 45 hp. Reference specifications; pending source verification.

The Kioti DS5010 is a tractor model with a rated power of 45 hp, categorising it within the lighter end of its class. This model was manufactured in 2009. It features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and an 8-speed gearbox. The Kioti DS5010 has an operating weight of 1609 kg and is suited to operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Max power

45 hp

Weight

1609 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

45 hp

Recorded weight

1609 kg

Transmissions

8-speed hydraulic shuttle

Production years

2009-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Daedong 2.2L 4-cyl dieselReference

Fuel tank42.0 LReference

Engine (gross)33.6 kWReference

Daedong 4A220LWMReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)33.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.43x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed hydraulic shuttleReference

Typehydraulic shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Transmission TypePower ShuttleReference

forward and reverse optionsHydraulic Shuttle : 8 F and 8 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Valves1 or 2Reference

Total flow50.0 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)1099 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Wheelbase184 cmReference

Weight1609 kgReference

Front tire8-16Reference

Rear tire13.6-24Reference

Weight499 kgReference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length316 cmReference

Width157 cmReference

Height (ROPS)252 cmReference

Ground clearance34 cmReference

Front tread124 cmReference

Rear tread117 to 148 cmReference

Kioti DS5010 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kioti KB2485 Backhoe

Backhoe typeKioti KB2485 BackhoeReference

Transport height235 cmReference

2-Foot flat digging depth239 cmReference

Reach from pivot345 cmReference

Loading height203 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1700 kgReference

Dipperstick force1000 kgReference

General

Make & ModelKioti (a part of Daedong)Reference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerSouth KoreaReference

Capacities

Capacity134.1 ciReference

Power

Max Power45 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)13.2 gpmReference

Hydraulics Typeopen centerReference

Remote Valves1 or 2 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS252.2 cmReference

Overall Length316.7 cmReference

Overall Width157.5 cmReference

Overall weight1,609.3 kgReference

Wheels & tyres

Rear Wheel TypeRear: 13.6-24Reference

Rear wheel tread range46.1 to 58.3 inchesReference

Front Wheel TypeFront: 8-16.Reference

Front Wheel tread range124.7 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
