Tractor · 2011Unverified

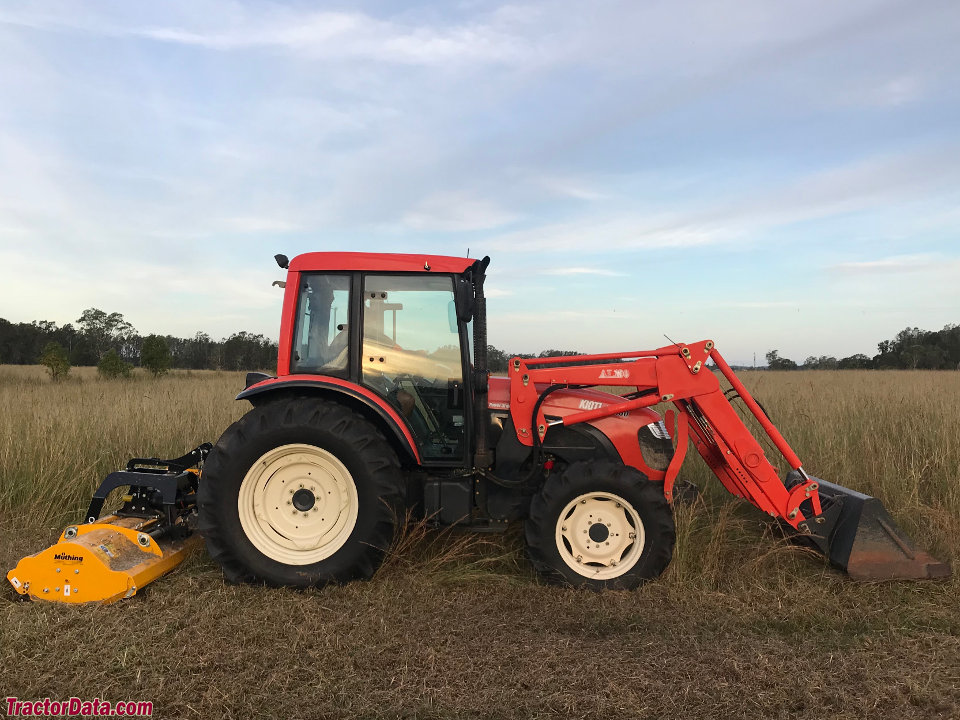

Kioti DX100

Name: Kioti DX100
Brand: Kioti

Kioti DX100 — Utility tractor · 99 hp. Reference specifications; pending source verification.

The Kioti DX100 is a tractor model with a rated output of 99 horsepower, positioning it in the middle of its class for power. It was manufactured from 2011 to 2013 and features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a 16-speed gearbox and four-wheel drive system. The listed weight of the DX100 is 3629 kilograms. It is designed for use on plots of around 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

99.2 hp

Weight

3629 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

99 hp

Recorded weight

3629 kg

Transmissions

16-speed power shuttle

Production years

2011-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank124.9 LReference

Engine (gross)74.0 kWReference

Perkins 1104C-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power (gross)74.0 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.135x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed power shuttleReference

Typepower shuttleReference

Gears16 forward and reverseReference

Clutchwet discReference

Transmission TypePower ShuttleReference

forward and reverse optionsPower Shuttle : 16 F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)63.6 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow48.4 lpmReference

Total flow83.6 lpmReference

Steering flow35.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2399 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase230 cmReference

Weight3629 kgReference

Front tire12.4-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference

Length411 cmReference

Width199 cmReference

Height (cab)281 cmReference

Ground clearance49 cmReference

Front tread151 to 171 cmReference

Rear tread155 to 195 cmReference

Kioti DX100 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelKioti (a part of Daedong)Reference

SCV controlJoystickReference

Country of manufacturerSouth KoreaReference

Capacities

Capacity268.5 ciReference

Power

Max Power99.2 hpReference

PTO

PTO Power85.3 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)22.1 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 or 3 ValvesReference

Steering & Implements flow9.3 gpm (12.8 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,400 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab281.9 cmReference

Overall Length412 cmReference

Overall Width199.9 cmReference

Overall weight3,629.6 kgReference

Wheels & tyres

Rear wheel tread range61.3 to 77 inchesReference

Front Wheel tread range59.5 to 67.4 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
