Tractor · 2008Unverified

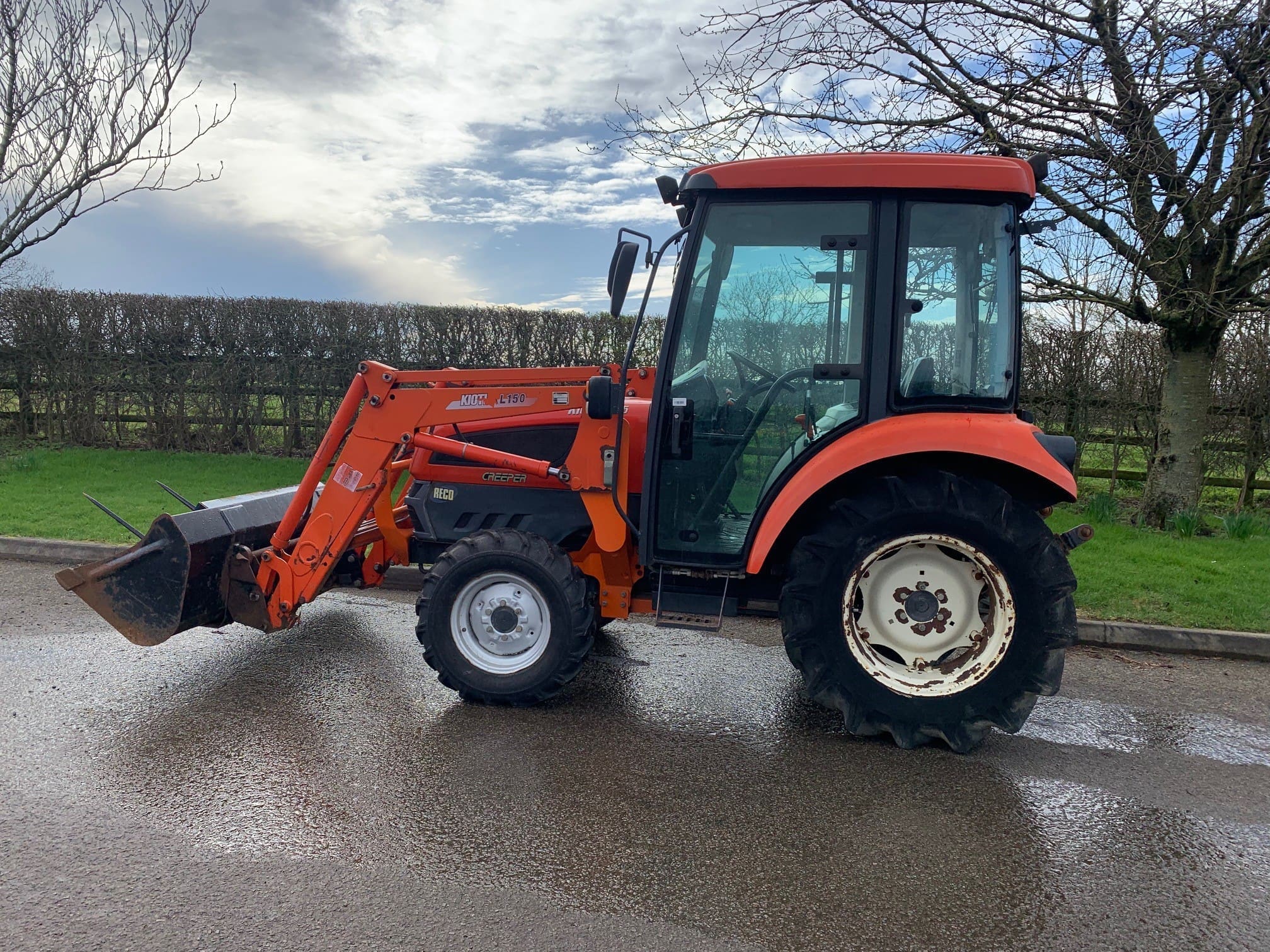

Kioti EX35
Kioti EX35 — EX Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
4131 to 4138 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)28.3 kWReference
Daedong 3B183LWMReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)28.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)20.5 kWReference
Hydro PTO (claimed)19.5 kWReference
Typeopen centerReference
Pump flow57.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)2583 kgReference
Rear lift (at 24"/610mm)2383 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase176 cmReference
Weight4131 to 4138 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x10.5-15Reference
Industrial rear43x16-20Reference
Length327 cmReference
Width161 cmReference
Height (cab)242 cmReference
Shuttle Weight1876 kgReference
Hydro Weight1873 kgReference
Ground clearance36 cmReference
Front tread124 cmReference
Rear tread123 to 134 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
