Tractor · 2008Unverified

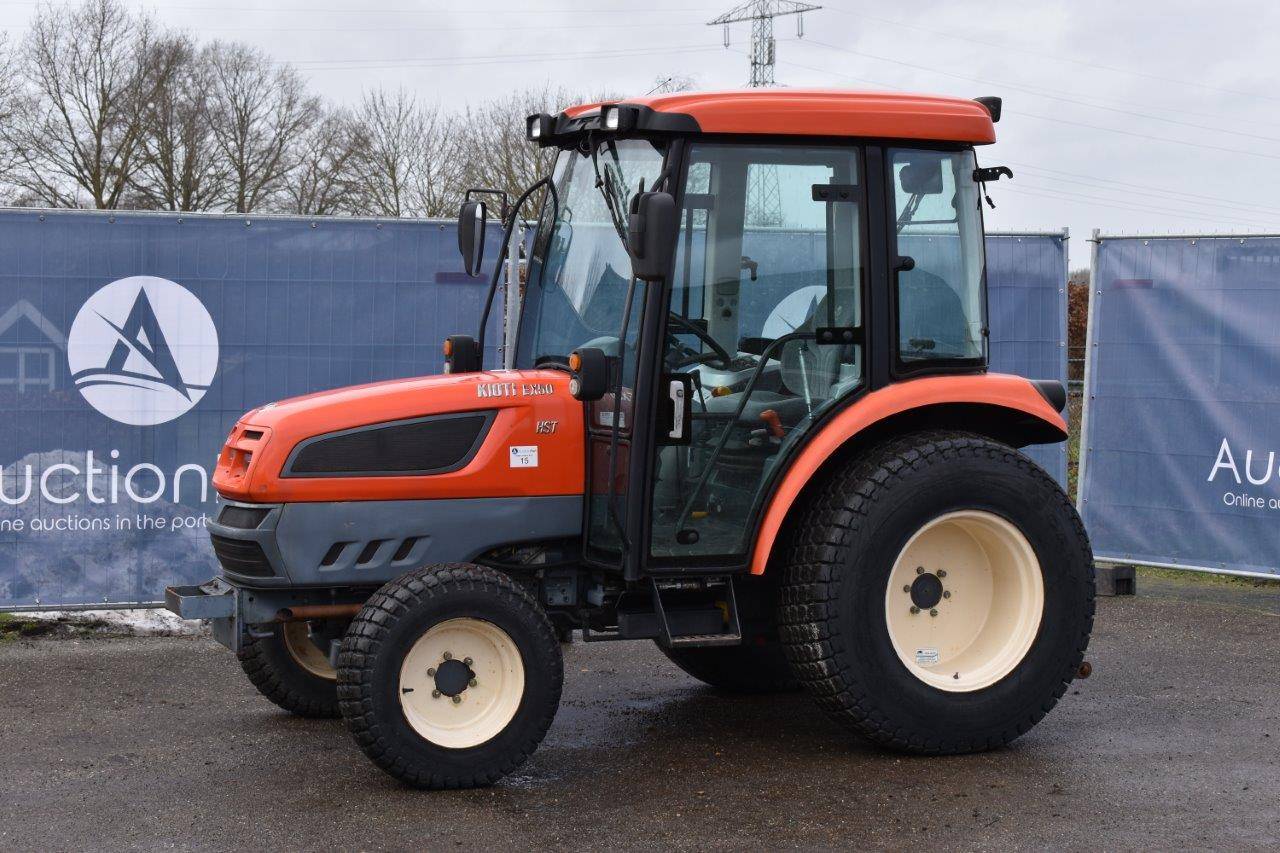

Kioti EX50
Kioti EX50 — EX Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
4398 to 4431 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Daedong 2.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)36.5 kWReference
Daedong 4B243LWMReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)36.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)28.6 kWReference
Hydro PTO (claimed)26.5 kWReference
Typeopen centerReference
Pump flow57.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)2940 kgReference
Rear lift (at 24"/610mm)2493 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase187 cmReference
Weight4398 to 4431 poundsReference
Front tire9.5-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-26Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear21.5Lx16.1Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length340 cmReference
Width175 cmReference
Height (cab)248 cmReference
Shuttle Weight2009 kgReference
Hydro Weight1994 kgReference
Ground clearance40 cmReference
Front tread136 cmReference
Rear tread136 to 151 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
