Tractor · 2021Unverified
Kioti HX1151
Kioti HX1151 — HX Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
4640 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Daedong 3.8L 4-cyl dieselReference
Fuel tank168.8 LReference
Exhaust fluid (DEF)17.8 LReference
Engine (gross)85.8 kWReference
Daedong 4JTReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke103 x 115 mmReference
Power (gross)85.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shuttleReference
Typepower shuttleReference
Gears24 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Typeopen centerReference
Valves3 or 4Reference
Pump flow74.9 lpmReference
Total flow121.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3629 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase241 cmReference
Weight4640 kgReference
Front tire13.6-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Industrial front340/85R24Reference
Industrial rear460/85R34Reference
Length433 cmReference
Width225 cmReference

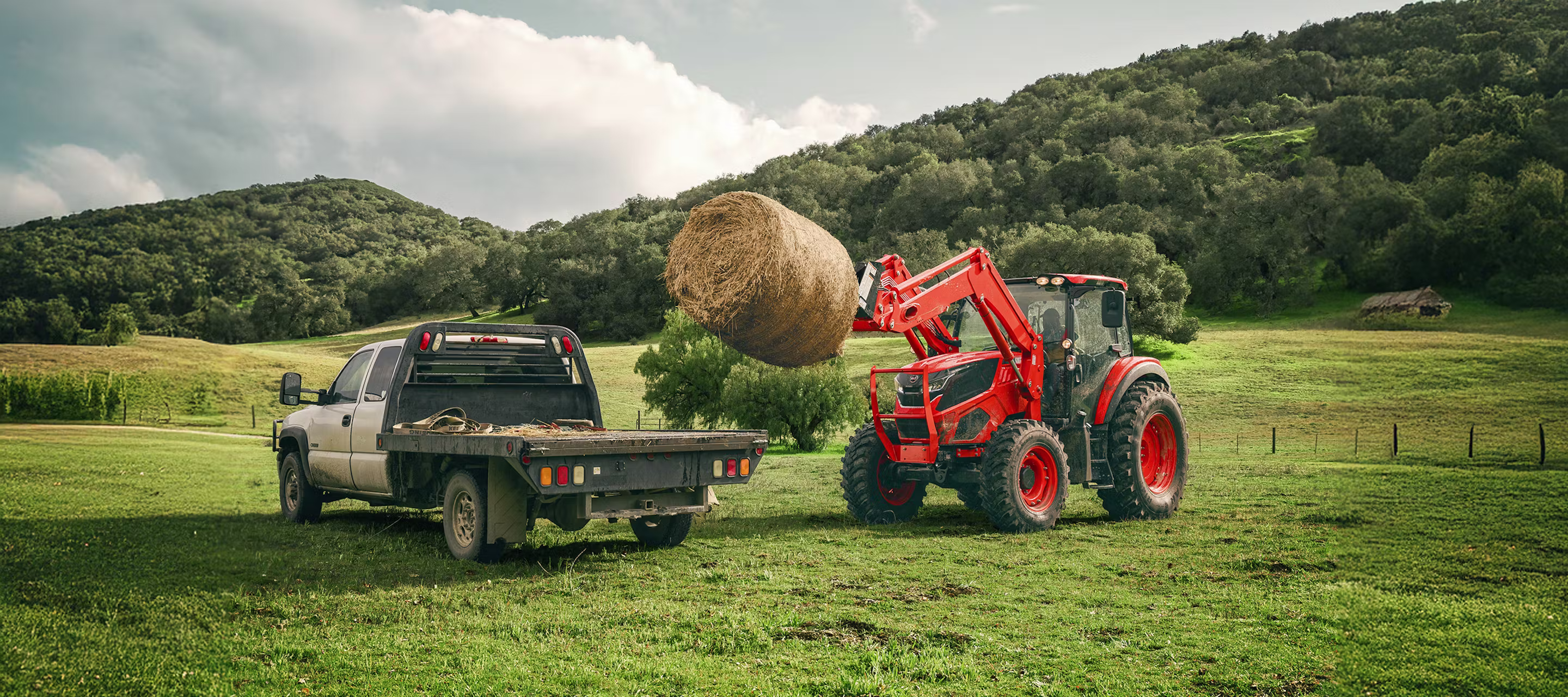

Kioti HX1151 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
