Tractor · 2021Unverified

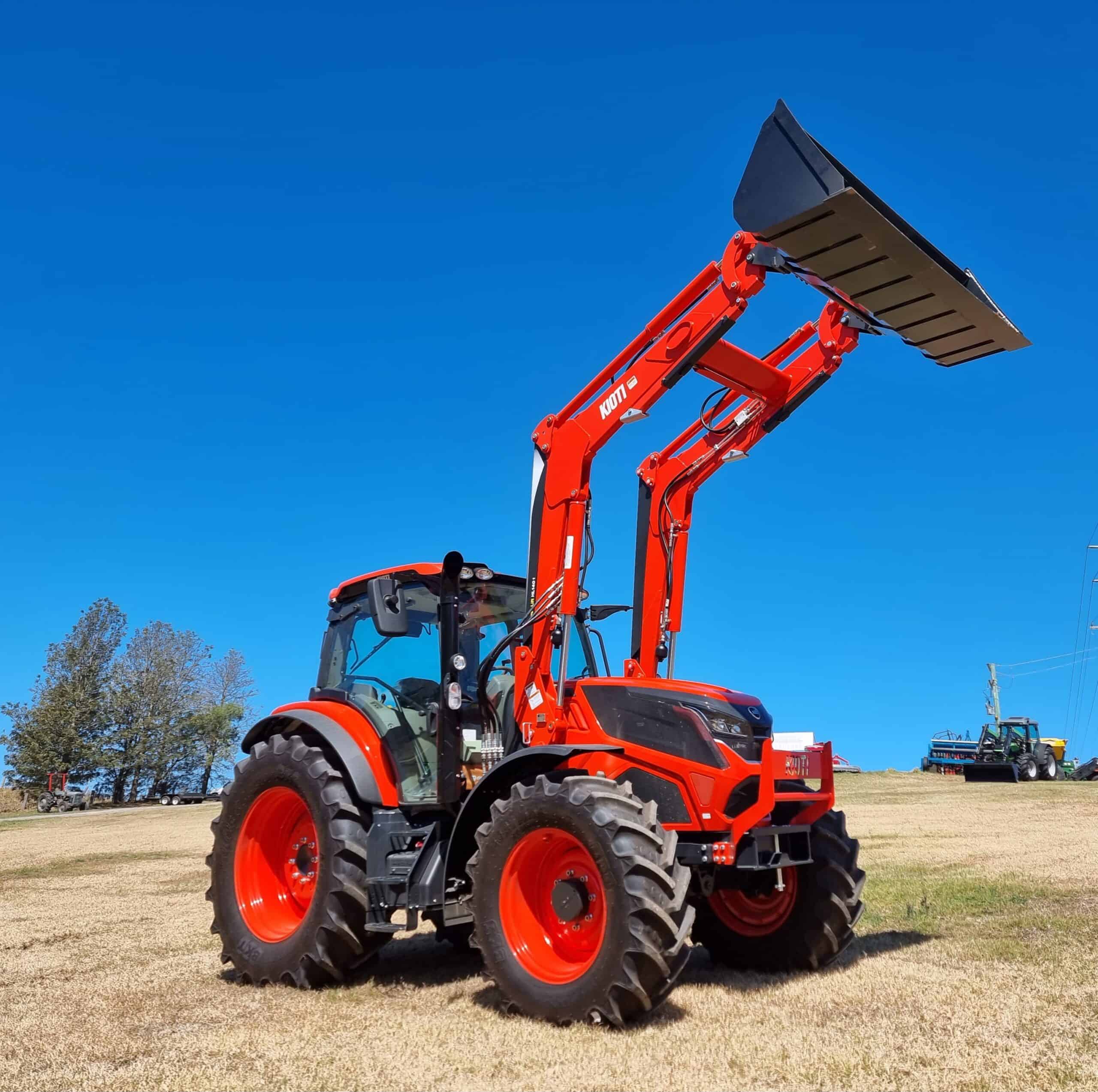

Kioti HX1301
Kioti HX1301 — HX Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
4853 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Daedong 3.8L 4-cyl dieselReference
Fuel tank230.1 LReference
Engine (gross)96.9 kWReference
Daedong 4J243TIReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke103 x 115 mmReference
Power (gross)96.9 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed power shuttleReference
Typepower shuttleReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)81.3 kWReference
Typeclosed center load-sensingReference
Valves4Reference
Pump flow118.1 lpmReference
Total flow165.4 lpmReference
Steering flow47.3 lpmReference
Rear TypeIIReference
Rear lift4852 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase260 cmReference
Weight4853 kgReference
Front tire420/70/28Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70/28. Rear: 520/70R38Reference
Length299 cmReference
Width226 cmReference
Height (cab)300 cmReference
Ground clearance49 cmReference
Front tread185 cmReference
Rear tread180 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
