Tractor · 2021Unverified

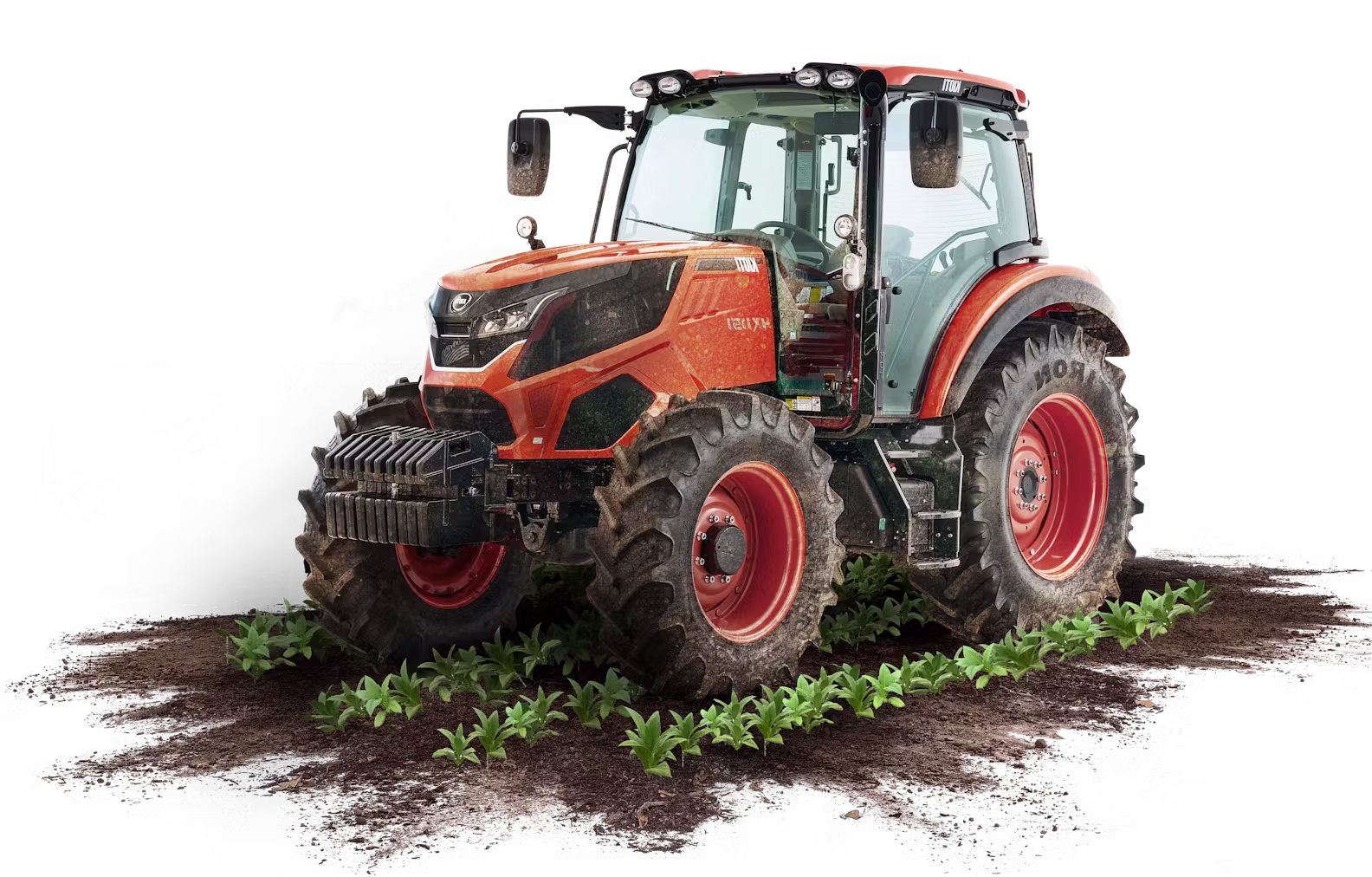

Kioti HX9010

Name: Kioti HX9010
Brand: Kioti

Kioti HX9010 — HX Series · 90 hp. Reference specifications; pending source verification.

The Kioti HX9010 is a tractor with a rated power of 90 hp, a mid-range figure for its class, and was manufactured in 2021. It features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a 24-speed gearbox. The tractor has an operating weight of 4640 kg and is suited for operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

90 hp

Weight

4640 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

90 hp

Recorded weight

4640 kg

Transmissions

24-speed power shuttle

Production years

2021-2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Daedong 3.8L 4-cyl dieselReference

Fuel tank168.8 LReference

Exhaust fluid (DEF)17.8 LReference

Engine (gross)67.1 kWReference

Daedong 4JTReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooled inlineReference

Displacement3.8 LReference

Bore/Stroke103 x 115 mmReference

Power (gross)67.1 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

Rated engine speed2,200 rpmReference

AspirationIntercularReference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

Clutchwet discReference

forward and reverse options24 F x24 RReference

forward speed range1.9 km/hReference

reverse speed range1.8 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

Typeopen centerReference

Valves3 or 4Reference

Pump flow74.9 lpmReference

Total flow121.1 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3629 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase241 cmReference

Weight4640 kgReference

Front tire13.6-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

Industrial front340/85R24Reference

Industrial rear460/85R34Reference

Length433 cmReference

Width225 cmReference

Kioti HX9010 attachments

front-end loaderReference

General

Make & ModelKioti (a part of Daedong) @ 4J243TA-TP5BReference

Capacities

Capacity233.9 ciReference

Power

Max Power90 hpReference

PTO

PTO Power70 hpReference

Rear PTO RPM1,000 rpmReference

Steering & brakes

BrakesWet Disc TypeReference

Steering typeHydrostaticReference

Hydraulics

Pump Rated Output (total)32 gpmReference

Remote ValvesOption 1: 1\\nOption 2: 3Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing TypeElectronicReference

Dimensions & weight

Overall Length433.8 cmReference

Overall Width225 cmReference

Turning radius386.8 cmReference

Overall weight4,640.2 kgReference

Wheels & tyres

Rear Wheel TypeOption 1: 18.4-34 (REAR AG)\\nOption 2: 460/85R34 (R14)Reference

Front Wheel TypeOption 1: 13.6-24 (FRONT AG)\\nOption 2: 340 / 85 / R24 (r14)Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
