Tractor · 1988Unverified

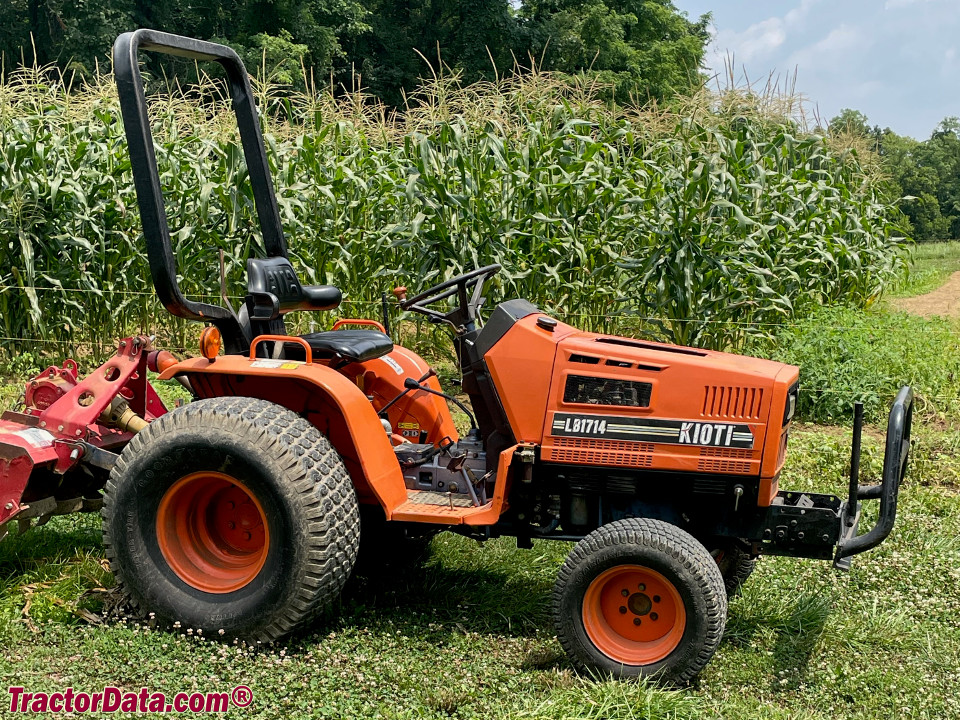

Kioti LB1714
Kioti LB1714 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
861 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
SteeringmanualReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Daedong 0.9L 3-cyl dieselReference
Engine12.7 kWReference
Daedong TD 950Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Power12.7 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partial synchromesh with mechanical shuttleReference
Typepartial synchromesh with mechanical shuttleReference
Gears8 forward and 7 reverseReference
ClutchdryReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear TypeIReference
Rear lift (at ends)453 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2405Reference
Engine RPM1000@2400Reference
Front PTOengineReference
Front PTO Type2600Reference
Dimensions
Wheelbase142 cmReference
Weight861 kgReference
Front tire6-12Reference
Rear tire9.5-20Reference
Ag front6-12Reference
Ag rear9.5-20Reference
Ag rear12.4-16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear36x13.50-15Reference
Length249 cmReference
Width112 cmReference
Height (exhaust)190 cmReference
Ground clearance27 cmReference
Front tread86 cmReference
Rear tread87 to 93 cmReference
LB1714 Serial Numbers
Location:On the tractor's transmission housing ahead of the clutch pedal.Reference
1988400001Reference
1989500001Reference
1990600001Reference
1991700001Reference
1992800001Reference
1993900001Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
