Tractor · 1995Unverified

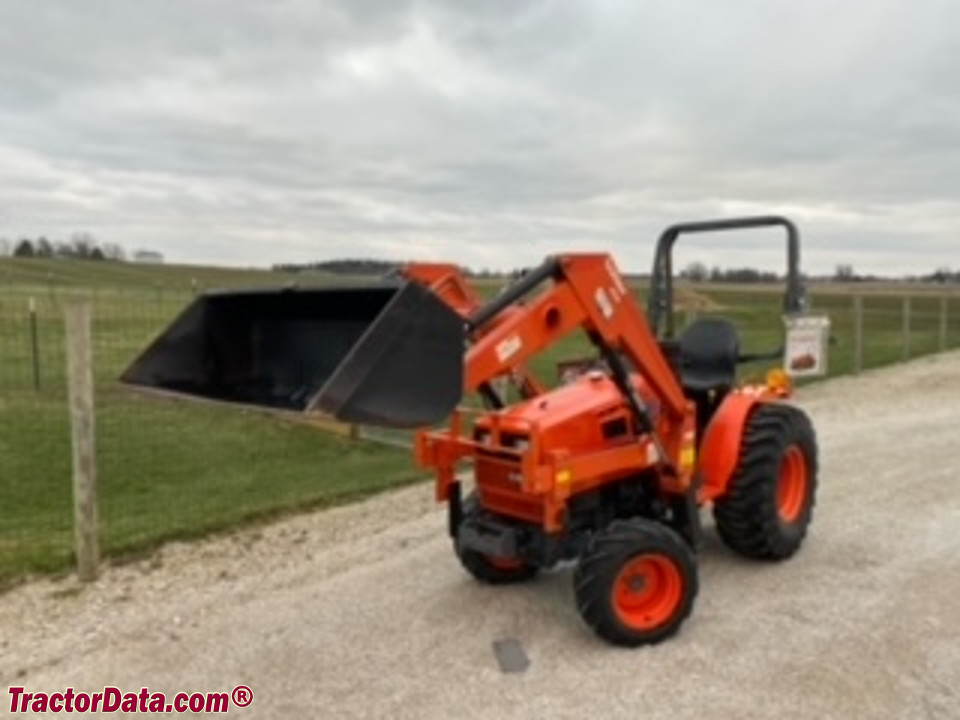

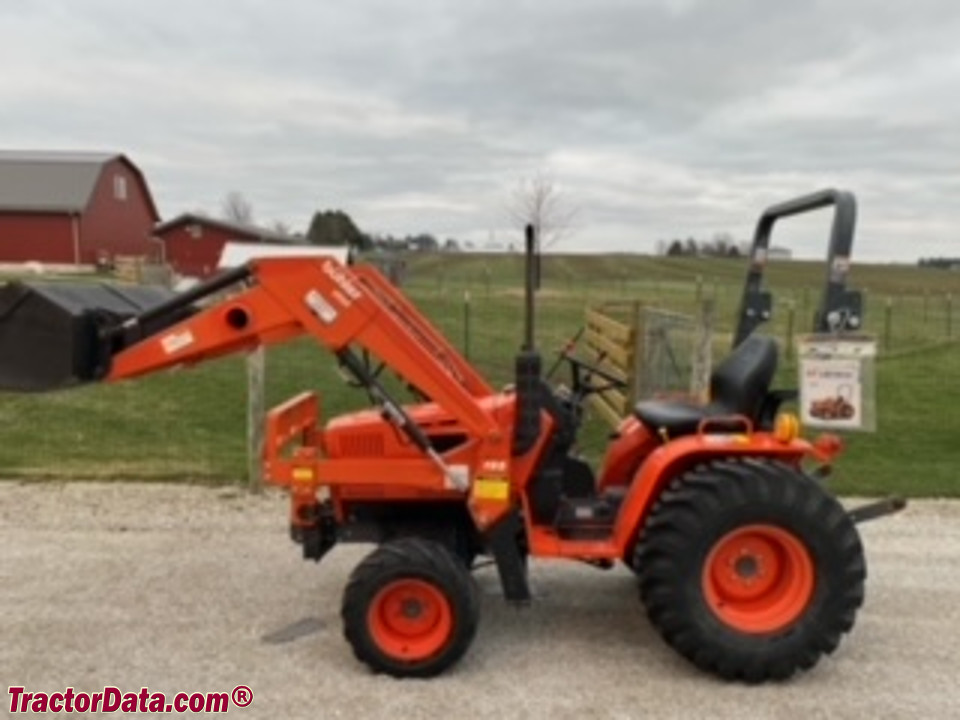

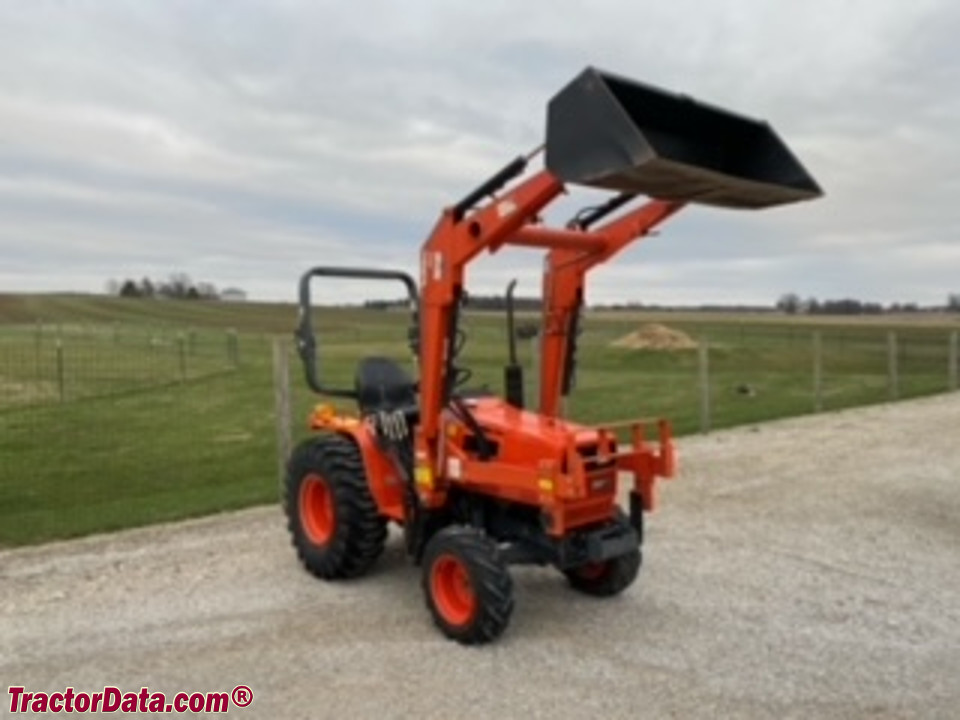

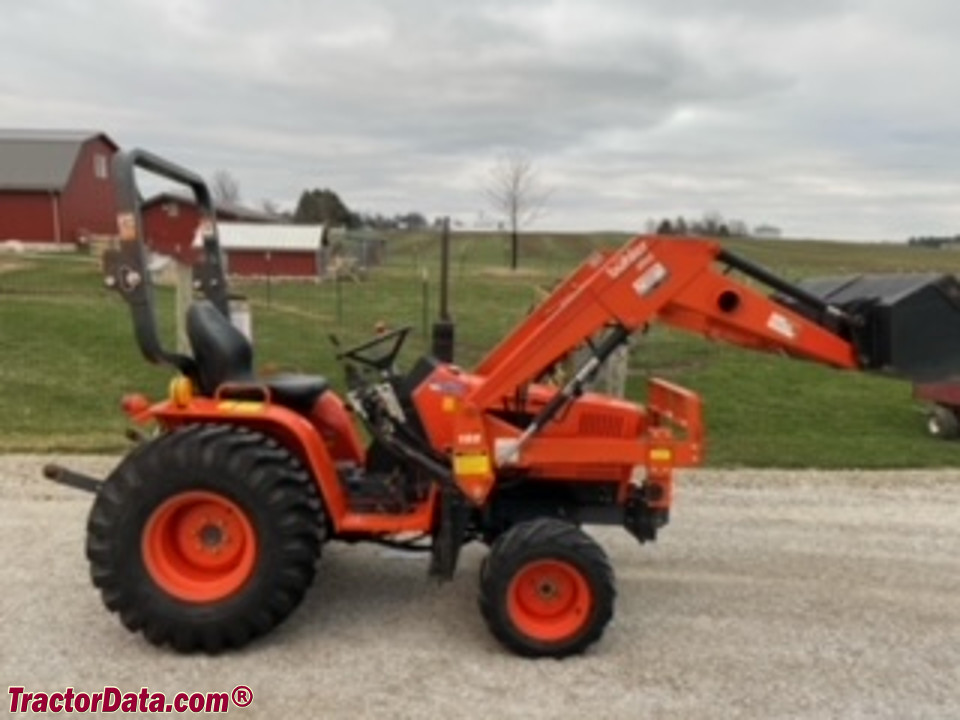

Kioti LB1914
Kioti LB1914 — LB Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
967 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price was $11,000 in 2006Reference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS. Canopy optional.Reference
Engine
Daedong 0.9L 3-cyl dieselReference
Fuel tank20.8 LReference
Engine (gross)14.5 kWReference
Daedong 3C093DReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke75 x 70 mmReference
Power (gross)14.5 kWReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Four speeds with high/low range, and shuttle.Reference
PTO & Hydraulics
PTO (claimed)12.7 kWReference
Typeopen centerReference
Pump flow22.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)662 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2405Reference
Engine RPM1000@2400Reference
Front PTO Type2800Reference
Dimensions
Wheelbase142 cmReference
Weight967 kgReference
Front tire6-12Reference
Rear tire9.5-20Reference
Weight356 kgReference
Ag front6-12Reference
Ag rear9.5-20Reference
Ag rear12.4-16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear36x13.5-15Reference
Industrial front23x8.5-12Reference
Industrial rear12.4-16Reference
Length282 cmReference
Width118 cmReference
Height (ROPS)212 cmReference
Height (Folded ROPS)163 cmReference
Ground clearance27 cmReference
Front tread86 cmReference
Rear tread87 to 93 cmReference
Kioti LB1914 attachments
front-end loaderReference
backhoeReference
LB1914 Serial Numbers
Location:Serial number on the tractor's transmission housing ahead of the clutch pedal.Reference
1990600001Reference
1991700001Reference
1992800001Reference
1993900001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2365 Backhoe
Backhoe typeKioti KB2365 BackhoeReference
Transport height185 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth194 cmReference
Reach from pivot267 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
