Tractor · 1987Unverified

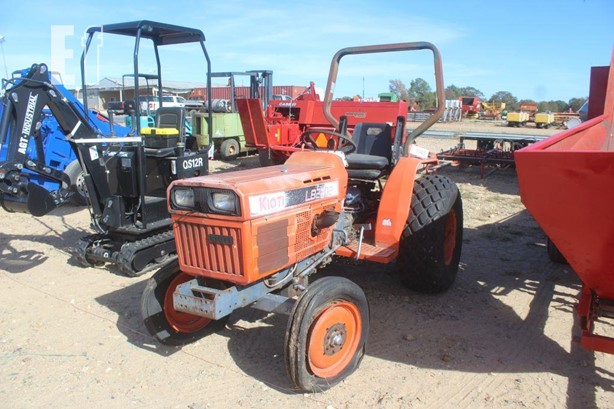

Kioti LB2202
Kioti LB2202 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
938 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price was $8,000 in 1999Reference
Two-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower optionalReference
Wet disc brakesReference
Two-post ROPSReference
Variants
LB22022WDReference
LB22044WDReference
Engine
Daedong 1.1L 3-cyl dieselReference
Engine16.4 kWReference
Daedong DH 1101-BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power16.4 kWReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
ClutchdryReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Typeopen centerReference
Total flow25.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift567 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2430Reference
Engine RPM1000@2430Reference
Front PTOengineReference
Front PTO Type2500Reference
Dimensions
Wheelbase164 cmReference
Weight938 kgReference
Front tire5.00-15Reference
Rear tire9.5-24Reference
Ag front5.00-15Reference
Ag rear9.5-24Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length273 cmReference
Width130 cmReference
Height (exhaust)198 cmReference
Ground clearance30 cmReference
Front tread99 cmReference
Rear tread98 to 121 cmReference
LB2202 Serial Numbers
Location:On the tractor's transmission housing ahead of the clutch pedal.Reference
1987300001Reference
1988400001Reference
1989500001Reference
1990600001Reference
1991700001Reference
1992800001Reference
1993900001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
