Tractor · 1988Unverified

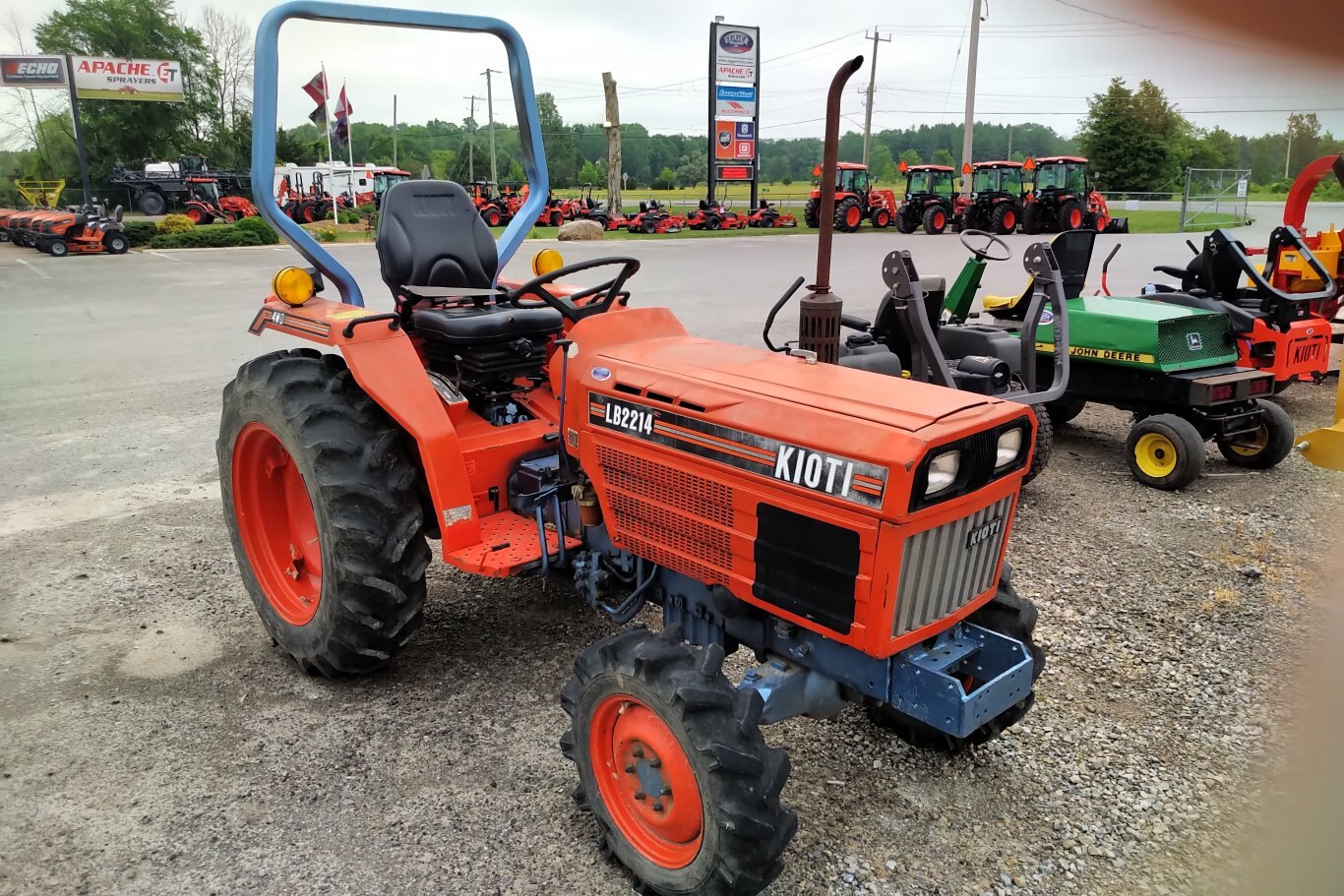

Kioti LB2214
Kioti LB2214 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1043 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price was $11,000 in 1992Reference
Four-wheel driveReference
Two-post fixed ROPS.Reference
Engine
Daedong 1.1L 3-cyl dieselReference
Engine16.4 kWReference
DaedongReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power16.4 kWReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
TypeopenReference
Pump flow28.8 lpmReference
Rear TypeIReference
Rear lift952 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1043 kgReference
Front tire6-14Reference
Rear tire9.5-24Reference
Ag front6-14Reference
Ag rear9.5-24Reference
LB2214 Serial Numbers
Location:On the tractor's transmission housing ahead of the clutch pedal.Reference
1990600001Reference
1991700001Reference
1992800001Reference
1993900001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
