Tractor · 1998Unverified

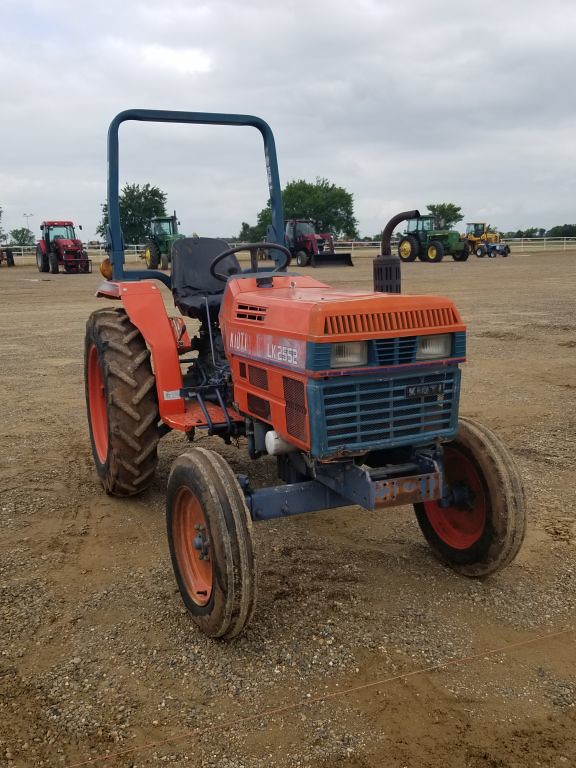

Kioti LK2552
Kioti LK2552 — LK Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1086 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price was $11,250 in 1999Reference
Two-wheel driveReference
Wet disc brakesReference
Two-post ROPS. Fixed ROPS on early models, folding on late models.Reference
Variants
LK25522WDReference
LK25544WDReference
Engine
Daedong 1.3L 3-cyl dieselReference
Engine (gross)18.2 kWReference
Daedong TD1300F-1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 82 mmReference
Power (gross)18.2 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)14.9 kWReference
Typeopen centerReference
Pump flow27.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift952 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2430Reference
Engine RPM1000@2430Reference
Dimensions
Wheelbase164 cmReference
Weight1086 kgReference
Front tire5.00-15Reference
Rear tire9.5-24Reference
Ag front5.00-15Reference
Ag rear9.5-24Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear13.6-16.1Reference
Lawn/turf rear41-14.00-20Reference
Length284 cmReference
Width133 cmReference
Height (exhaust)191 cmReference
Ground clearance28 cmReference
Front tread107 to 148 cmReference
Rear tread99 to 122 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
