Tractor · 1994Unverified

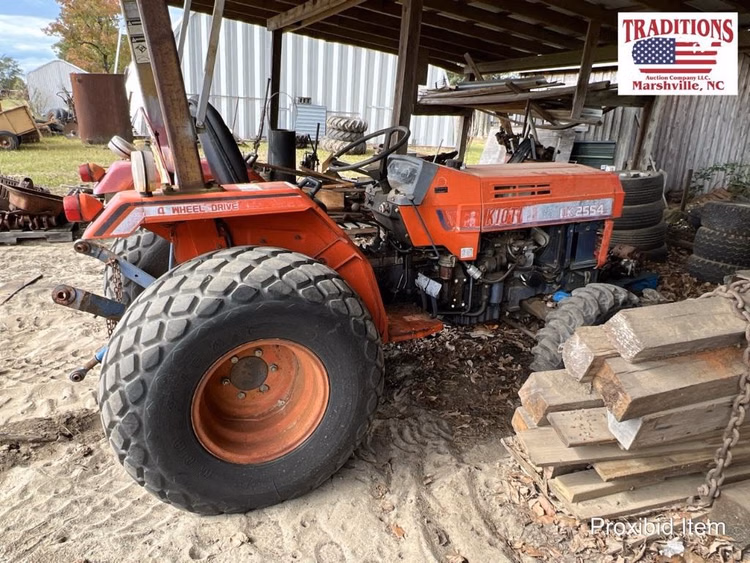

Kioti LK2554
Kioti LK2554 — LK Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1201 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price$12,000Reference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS. Fixed ROPS on early models, folding on late models.Reference
Variants
LK25522WDReference
LK25544WDReference
Engine
Daedong 1.3L 3-cyl dieselReference
Fuel tank28.4 LReference
Engine (gross)18.2 kWReference
Daedong TD1300F-1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 82 mmReference
Power (gross)18.2 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)14.9 kWReference
Typeopen centerReference
Pump flow26.5 lpmReference
Rear TypeIReference
Rear lift (at ends)952 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1201 kgReference
Front tire6-14Reference
Rear tire9.5-24Reference
Weight356 kgReference
Weight387 kgReference
Ag front6-14Reference
Ag rear9.5-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Length277 cmReference
Width129 cmReference
Height (exhaust)198 cmReference
Ground clearance29 cmReference
Kioti LK2554 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2365 Backhoe
Backhoe typeKioti KB2365 BackhoeReference
Transport height185 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth194 cmReference
Reach from pivot267 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Kioti KB2375 Backhoe
Backhoe typeKioti KB2375 BackhoeReference
Transport height172 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth294 cmReference
Reach from pivot294 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
