Tractor · 2007Unverified

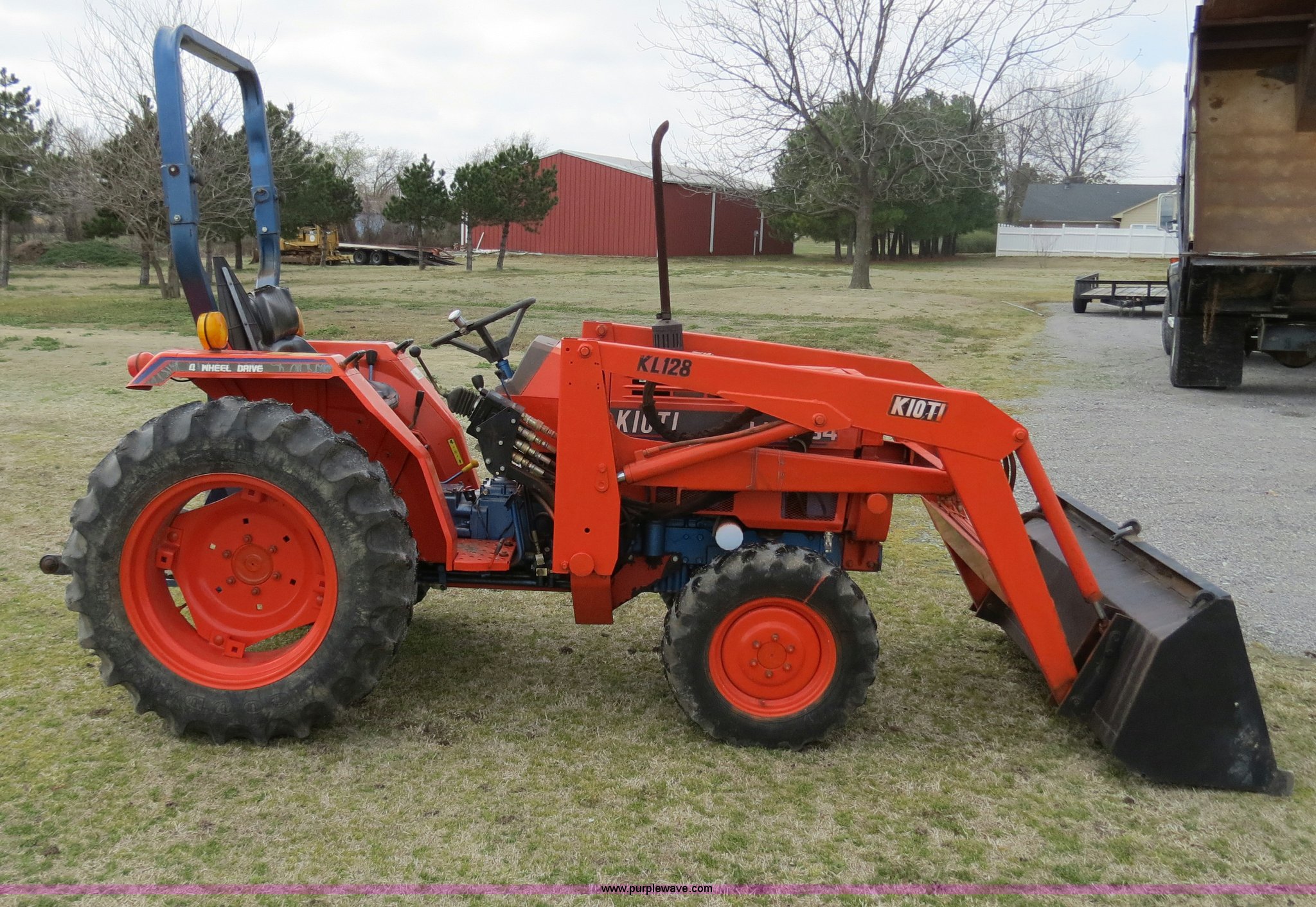

Kioti LK30

Name: Kioti LK30
Brand: Kioti

Kioti LK30 · 30 hp. Reference specifications; pending source verification.

The Kioti LK30 is a compact tractor model with a rated output of 30 hp. It was manufactured in 2007. The tractor features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system with hydrostatic transmission. Its listed weight is 1314 kg, and it is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Max power

30 hp

Weight

1314 kg

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

30 hp

Recorded weight

1314 kg

Transmissions

8-speed synchronized shuttle

Production years

2007-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Built in Daegu, South KoreaReference

Four-wheel driveReference

Differential lockstandardReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Foldable ROPS. Canopy optional.Reference

Engine

Daedong 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)22.4 kWReference

Daedong 3A150LWBReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Power (gross)22.4 kWReference

Air cleanerdual stage cartridgeReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchronized Shuttle : 8 F and 8 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)17.2 kWReference

Valves0 or 1Reference

Total flow48.1 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase164 cmReference

Weight1314 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14-20Reference

Industrial front25x8.5-14Reference

Industrial rear15-19.5Reference

Length282 cmReference

Width130 cmReference

Height (ROPS)225 cmReference

Ground clearance27 cmReference

Front tread110 cmReference

Rear tread102 to 126 cmReference

Kioti LK30 attachments

front-end loaderReference

backhoeReference

Attachment overview

Front-end loaderReference

BackhoeReference

Kioti KB2376 Backhoe

Backhoe typeKioti KB2376 BackhoeReference

General

Make & ModelKioti (a part of Daedong)Reference

Rollover protective structureFoldable ROPS.Reference

Country of manufacturerSouth KoreaReference

Capacities

Capacity91.5 ciReference

Power

Max Power30 hpReference

PTO

PTO Power23 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)12.7 gpmReference

Remote Valves0 or 1 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over ROPS225 cmReference

Overall Length283 cmReference

Overall Width130.6 cmReference

Overall weight1,314.1 kgReference

Wheels & tyres

Rear wheel tread range40.2 to 49.9 inchesReference

Front Wheel tread range110.5 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
