Tractor · 1993Unverified

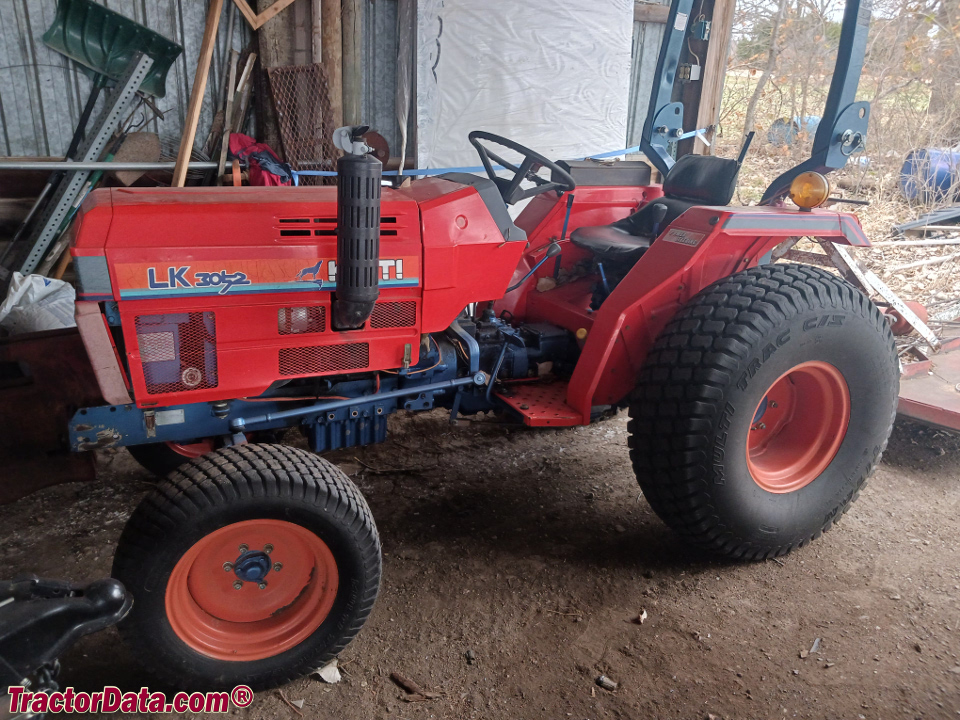

Kioti LK3052
Kioti LK3052 — LK Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1300 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Two-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
LK30522WDReference
LK30544WDReference
Engine
Daedong 1.4L 3-cyl dieselReference
Fuel tank28.4 LReference
Engine (gross)22.7 kWReference
Daedong TD1400Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke85 x 82 mmReference
Power (gross)22.7 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)18.3 kWReference
Typeopen centerReference
Pump flow26.5 lpmReference
Rear TypeIReference
Rear lift (at ends)975 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Front PTO Type2600Reference
Dimensions
Wheelbase164 cmReference
Weight1300 kgReference
Front tire5.50-16Reference
Rear tire11.2-24Reference
Ag front5.50-16Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Length282 cmReference
Width131 cmReference
Height (steering wheel)203 cmReference
Ground clearance27 cmReference
Front tread102 to 148 cmReference
Rear tread102 to 126 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
