Tractor · 1993Unverified

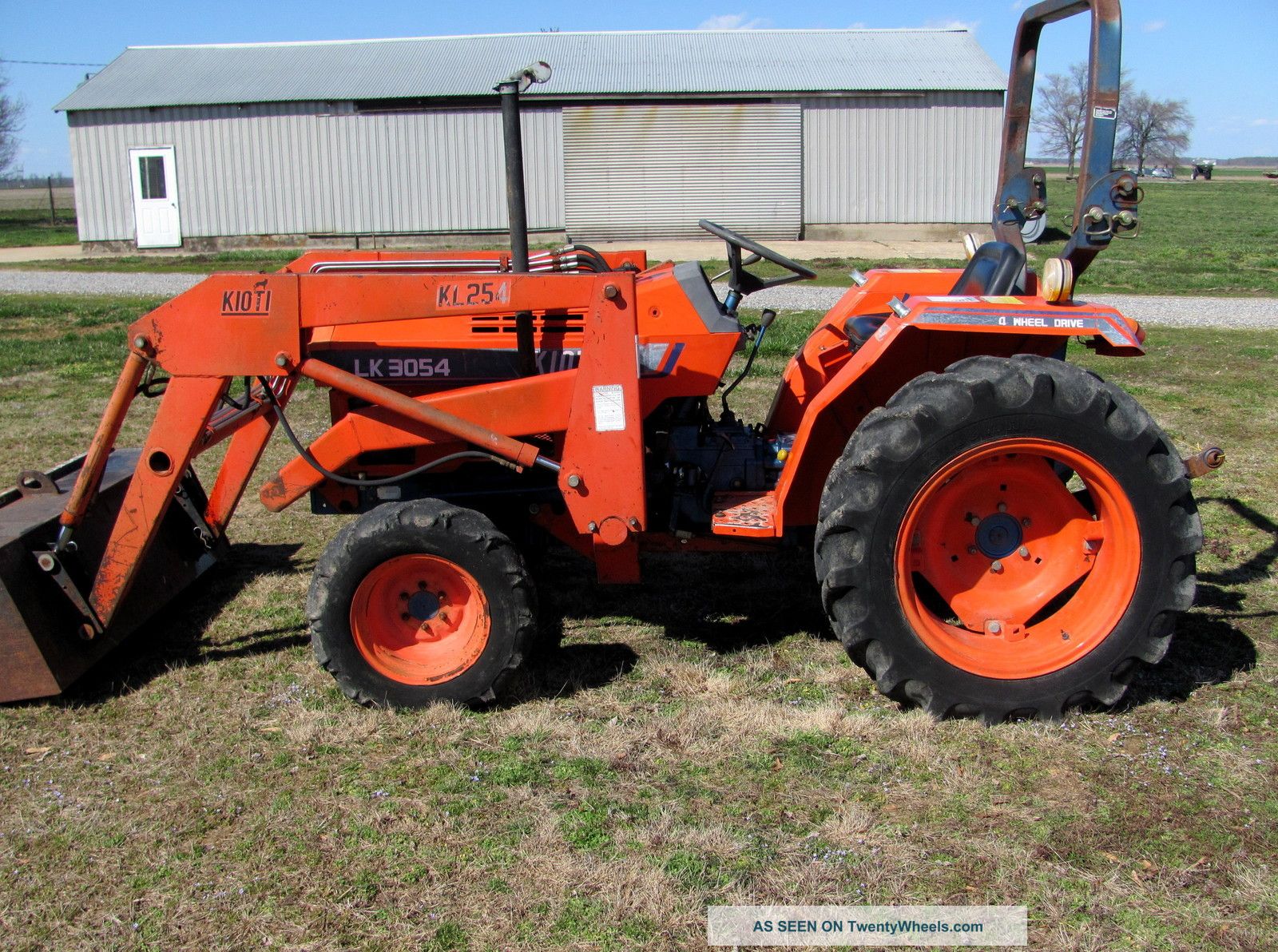

Kioti LK3054
Kioti LK3054 — LK Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1170 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Original price$14,000Reference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
LK30522WDReference
LK30544WDReference
Engine
Daedong 1.4L 3-cyl dieselReference
Fuel tank28.4 LReference
Engine (gross)22.7 kWReference
Daedong TD1400Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke85 x 82 mmReference
Power (gross)22.7 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)18.3 kWReference
Typeopen centerReference
Pump flow26.5 lpmReference
Rear TypeIReference
Rear lift (at ends)975 kgReference
Rear PTOliveReference
ClutchoverrunningReference
Rear PTO Type540/1000 (1.375)Reference
Front PTO Type2600Reference
Dimensions
Wheelbase164 cmReference
Weight1170 kgReference
Front tire6-14Reference
Rear tire9.5-24Reference
Ag front6-14Reference
Ag rear9.5-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear21.5x16.1Reference
Lawn/turf front12x16.5Reference
Lawn/turf rear17.5x24Reference
Length293 cmReference
Width141 cmReference
Height (exhaust)204 cmReference
Ground clearance27 cmReference
Front tread102 cmReference
Rear tread102 to 139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
