Tractor · 2004Unverified

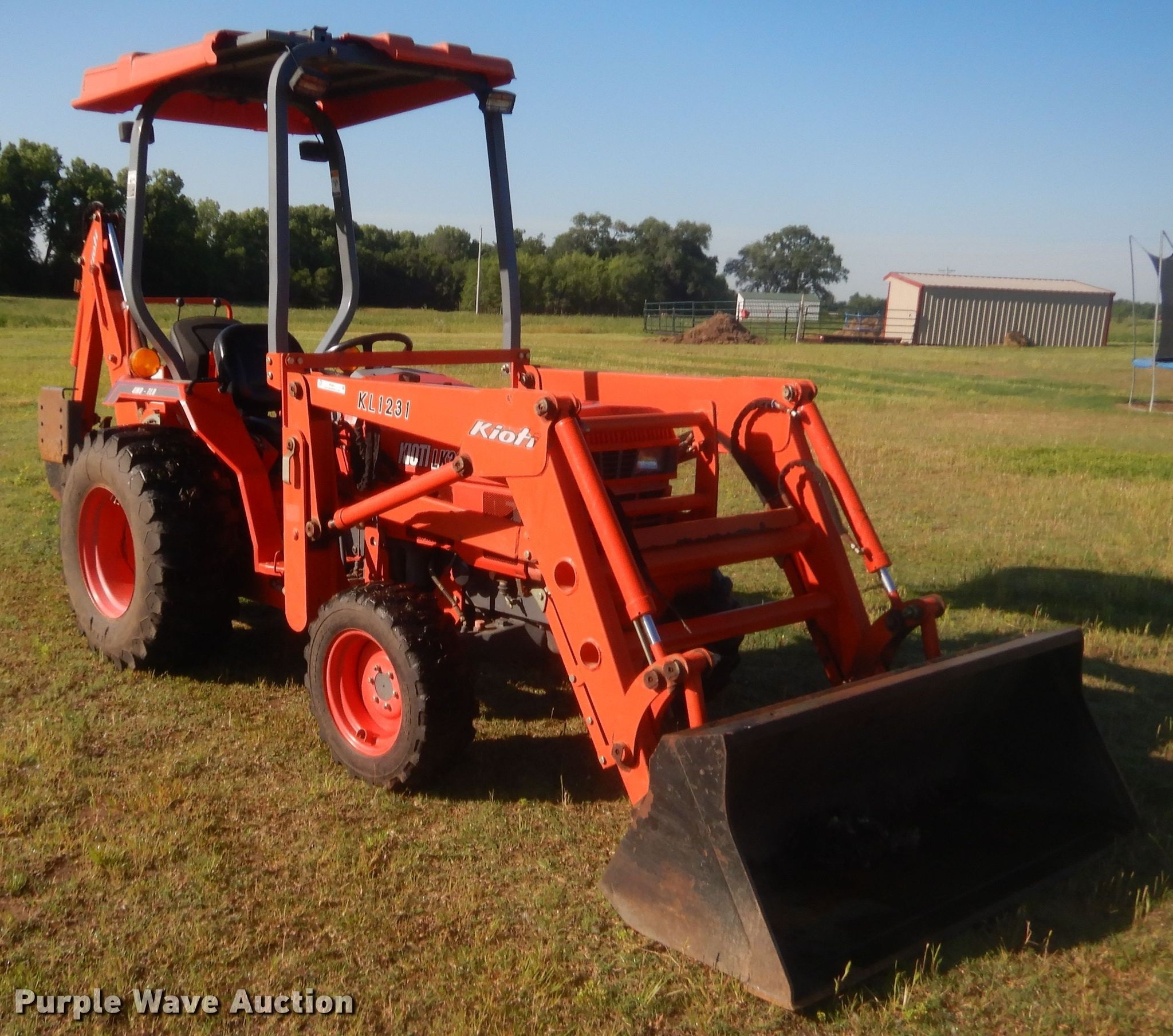

Kioti LK3054XS

Kioti LK3054XS — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.

The Kioti LK3054XS is a 31 hp tractor model, situated at the lower end of its class in terms of power. It was manufactured from 2004 to 2007. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, and is designed for four-wheel drive, paired with an 8-speed gearbox. Its operating weight is listed at 1349 kg, with a maximum operating capacity of 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
31 hp
Weight
1349 kg

Catalogue coverage

Variants represented
2
Richest spec table
75 rows
Recorded power
31 hp
Recorded weight
1349 kg
Transmissions
8-speed mechanical shuttle
Production years
2004-2007
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesmechanical rearReference
Wet disc brakesReference
Two-post foldable ROPS.Reference

Engine

Daedong 1.4L 3-cyl dieselReference
Fuel tank28.4 LReference
Engine (gross)22.7 kWReference
Daedong TD14008B-1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power (gross)22.7 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference

Transmission

8-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference

PTO & Hydraulics

PTO (claimed)18.3 kWReference
Typeopen centerReference
Rear valves1Reference
Total flow37.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2610Reference
Engine RPM1000@2626Reference

Dimensions

Wheelbase164 cmReference
Weight1349 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight356 kgReference
Weight387 kgReference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Optional tires (ag)Front: 7-16. Rear: 12.4-26Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16.1Reference
Industrial front25x8.5-14Reference
Industrial rear15-19.5Reference
Length282 cmReference
Width131 cmReference
Height (ROPS)203 cmReference
Ground clearance27 cmReference
Front tread114 cmReference
Rear tread102 to 126 cmReference

Kioti LK3054XS attachments

front-end loaderReference
backhoeReference

Electrical

GroundnegativeReference
Battery volts12Reference

Attachment overview

Front-end loaderReference
BackhoeReference

Kioti KL2365 Backhoe

Backhoe typeKioti KL2365 BackhoeReference
Transport height185 cmReference
Digging depth194 cmReference
Reach from pivot267 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force791 kgReference

Kioti KL2375 Backhoe

Backhoe typeKioti KL2375 BackhoeReference
Transport height172 cmReference
Digging depth228 cmReference
Reach from pivot294 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference

Speeds

With 11-2-24 rear tires. Reverse speeds are 9% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
