Tractor · 2022Unverified

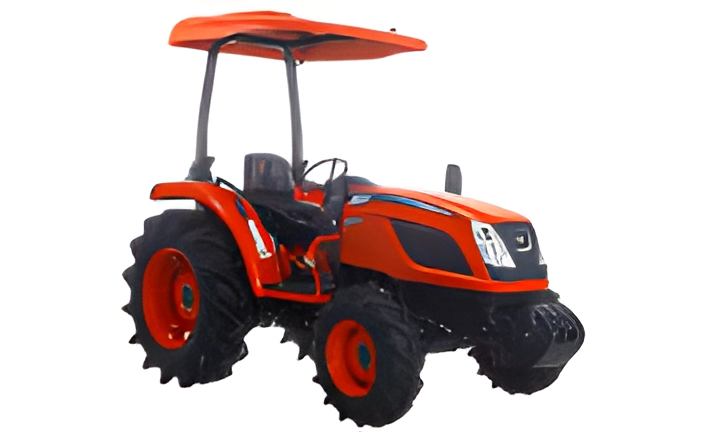

Kioti NS6010
Kioti NS6010 — NS Series · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
1826 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS. Cab optional.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)43.0 kWReference
DaedongReference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power (gross)43.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)36.0 kWReference
Hydro PTO (claimed)35.7 kWReference
Typeopen centerReference
Valves1 or 2Reference
Total flow62.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1130 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM2000Reference
Dimensions
Wheelbase191 cmReference
Weight1826 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Weight499 kgReference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear21.5-16.1Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length346 cmReference
Width170 cmReference
Height (ROPS)249 cmReference
Ground clearance34 cmReference
Front tread129 cmReference
Rear tread137 cmReference
Kioti NS6010 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
Transport height235 cmReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
