Tractor · 2014Unverified

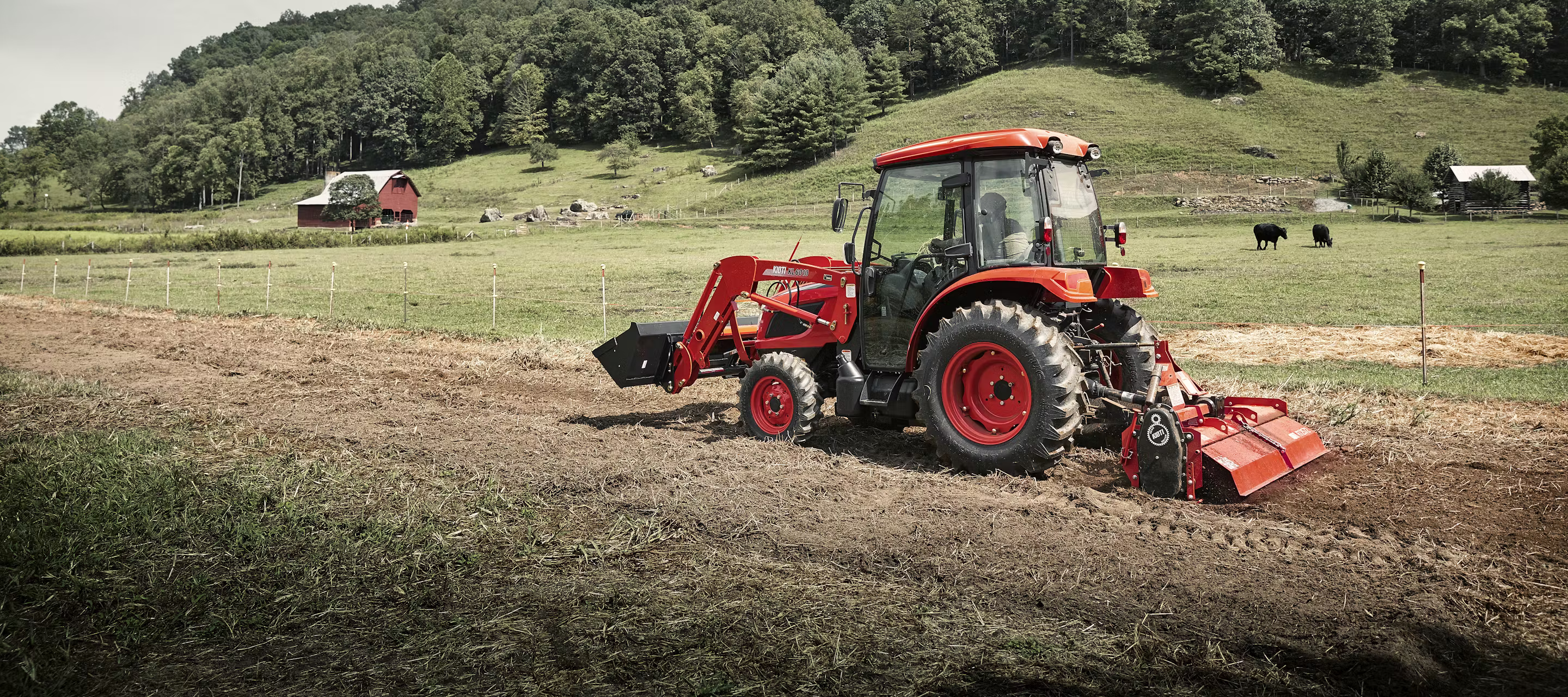

Kioti NX5510

Name: Kioti NX5510
Brand: Kioti

Kioti NX5510 — NX Series · 55 hp. Reference specifications; pending source verification.

The Kioti NX5510 is a tractor model with a rated power output of 55 horsepower, positioning it at the lighter end of its class. Built in 2014, the NX5510 is powered by a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the NX5510 ranges from 4211 to 4579 pounds, with capabilities suited to areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Max power

55 hp

Weight

4211 to 4579 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

55 hp

Transmissions

24-speed synchro shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet discs brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank56.0 LReference

Engine (gross)41.0 kWReference

Daedong 3F183TReference

turbocharged dieselReference

3-cylinder 6-valveReference

liquid-cooled inlineReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power (gross)41.0 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,600Reference

Transmission

24-speed synchro shuttleReference

hydrostaticReference

ROPS gear1915 kgReference

Cab gear2077 kgReference

Typesynchro shuttleReference

Gears24 forward and reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

forward and reverse options24 x 24Reference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)34.3 kWReference

Hydro PTO (claimed)32.1 kWReference

Typeopen center gear pumpReference

Valves0 to 2Reference

Gear Pump flow62.5 lpmReference

Hydro Pump flow67.8 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1441 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase192 cmReference

Weight4211 to 4579 poundsReference

Front tire9.5-16Reference

Rear tire13.6-28Reference

Ag front9.5-16Reference

Ag rear13.6-28Reference

Lawn/turf front29-12.5-15Reference

Lawn/turf rear21.5L-16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5-24Reference

Length354 cmReference

Width166 cmReference

Height (ROPS)261 cmReference

Height (cab)239 cmReference

Ground clearance39 cmReference

Front tread135 cmReference

Rear tread133 cmReference

ROPS hydro1910 kgReference

Cab hydro2062 kgReference

Kioti NX5510 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity111.4 cu in.Reference

Power

Max Power55 hpReference

PTO

PTO Power46 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 rpmReference

Mid PTO RPM2,000 rpmReference

General

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Steering & brakes

BrakesWet Multi DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)62.5 l/minReference

Remote Valves1Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category I & IIReference

Rear Hitch maximum lift capacity1,441.1 kgReference

Dimensions & weight

Height Over ROPS261.9 cmReference

Overall Length354.6 cmReference

Overall Width166.9 cmReference

Turning radius3 mReference

Overall weight1,909.2 kgReference

Wheels & tyres

Rear Wheel TypeRear AG. (Turf, Industrial):\\n16.9-24 (21.5L-16.1, 17.5-24)Reference

Rear wheel tread range132.3 cmReference

Front Wheel TypeFront AG. (Turf, Industrial): \\n9.5-16 (29-12.5-15, 10-16.5)Reference

Front Wheel tread range135.4 cmReference

Operator station

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
