Tractor · 2014Unverified

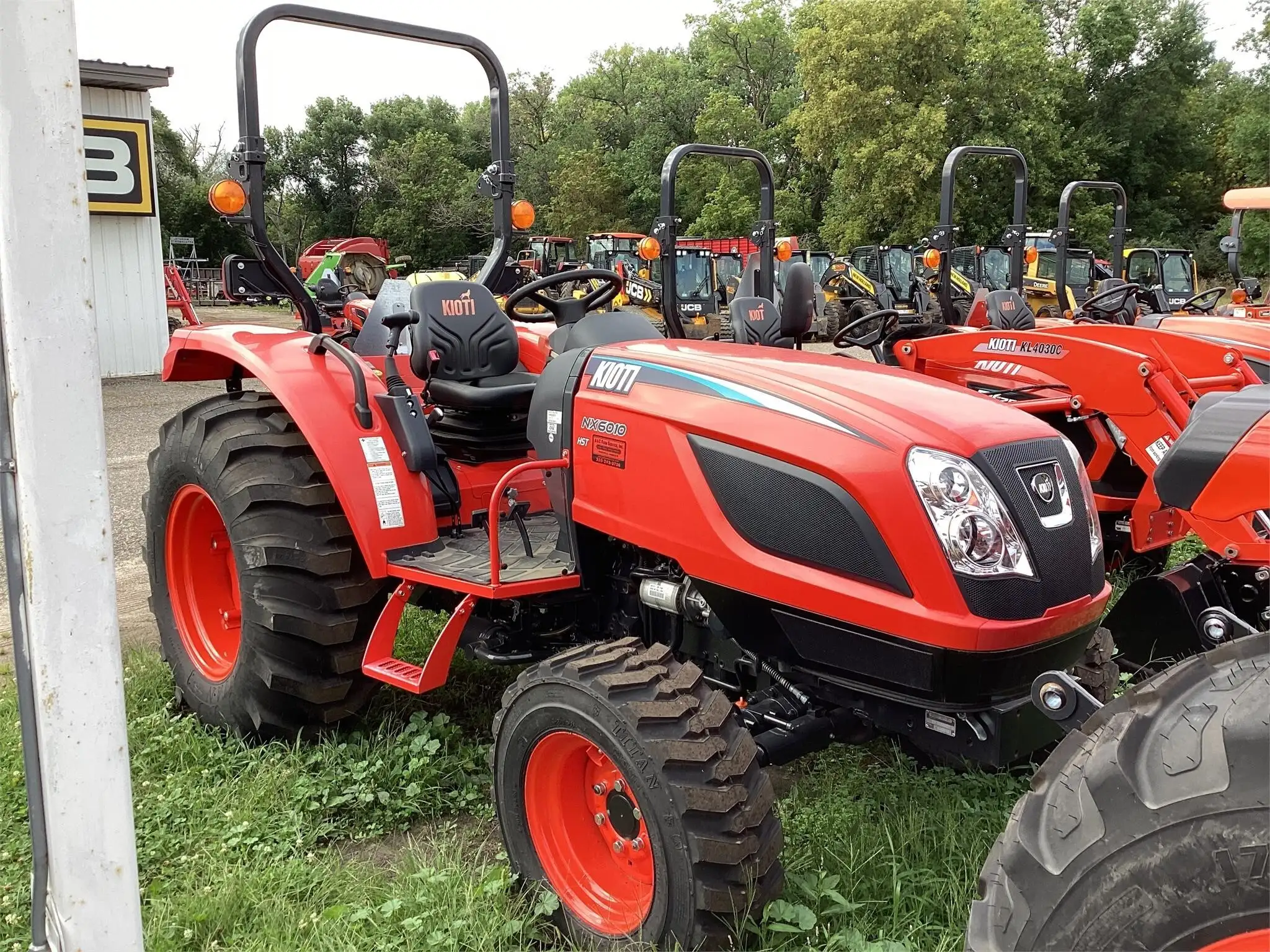

Kioti NX6010
Kioti NX6010 — NX Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
4211 to 4548 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet discs brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank56.0 LReference
Engine (gross)44.7 kWReference
Daedong 3F183TReference
turbocharged dieselReference
3-cylinder 6-valveReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power (gross)44.7 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)36.0 kWReference
Typeopen center gear pumpReference
Valves0 to 2Reference
Pump flow67.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1441 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase192 cmReference
Weight4211 to 4548 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Ag front9.5-16Reference
Ag rear13.6-28Reference
Lawn/turf front29-12.5-15Reference
Lawn/turf rear21.5L-16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5-24Reference
Length354 cmReference
Width166 cmReference
Height (ROPS)261 cmReference
Height (cab)239 cmReference
ROPS Weight1910 kgReference
Cab Weight2062 kgReference
Ground clearance39 cmReference
Front tread135 cmReference
Rear tread133 cmReference
Kioti NX6010 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
