Tractor · 2016Unverified

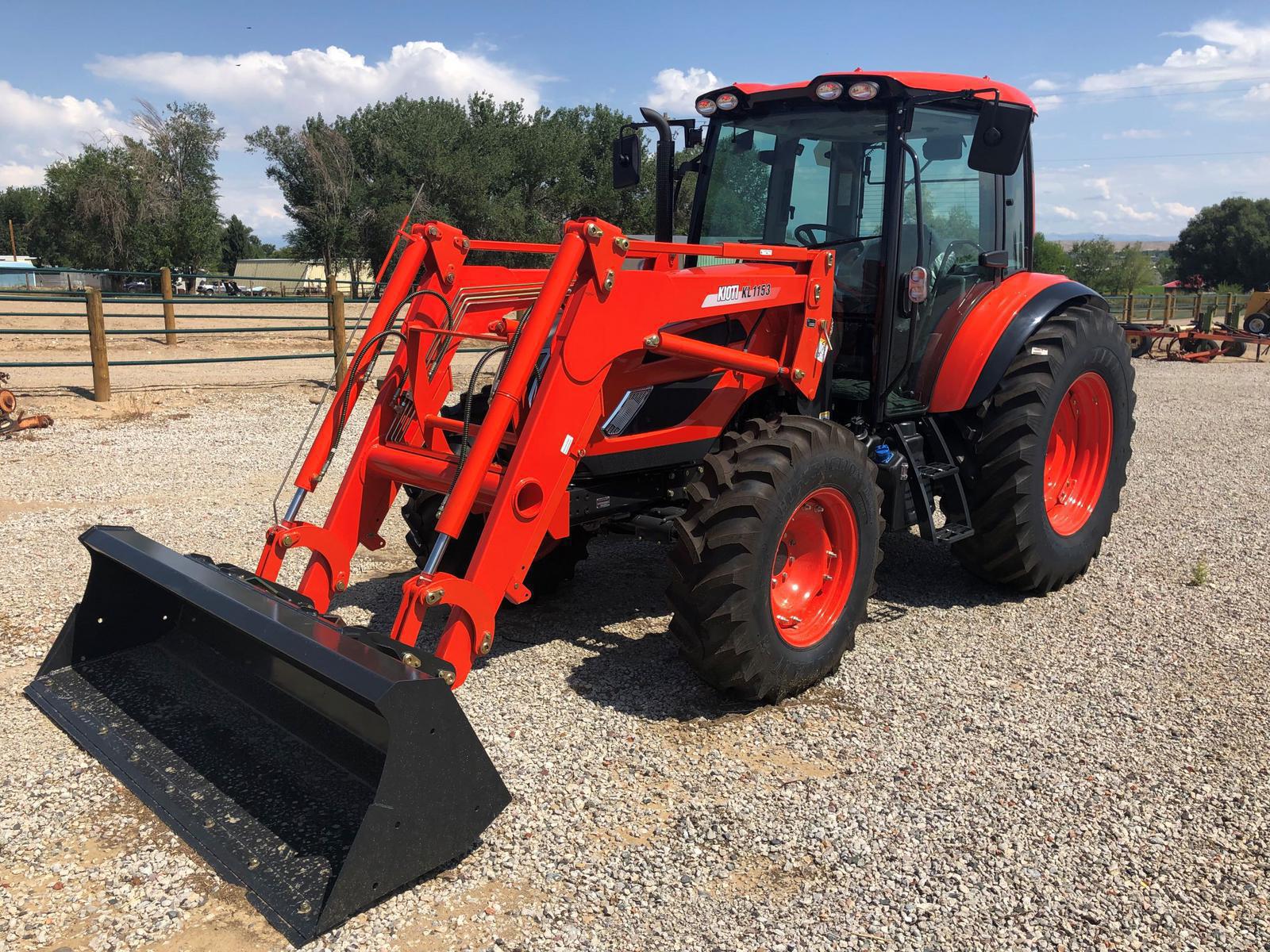

Kioti PX1053
Kioti PX1053 — PX Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
4111 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Doosan 3.4L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine (gross)76.8 kWReference
Doosan DL03-LEA08Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
Power (gross)76.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed power shuttleReference
Typepower shuttleReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)64.6 kWReference
Typeopen centerReference
Pump flow119.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)3629 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase236 cmReference
Weight4111 kgReference
Front tire13.6-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Length429 cmReference
Width225 cmReference
Height (cab)274 cmReference
Ground clearance49 cmReference
Kioti PX1053 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
