Tractor · 2016Unverified

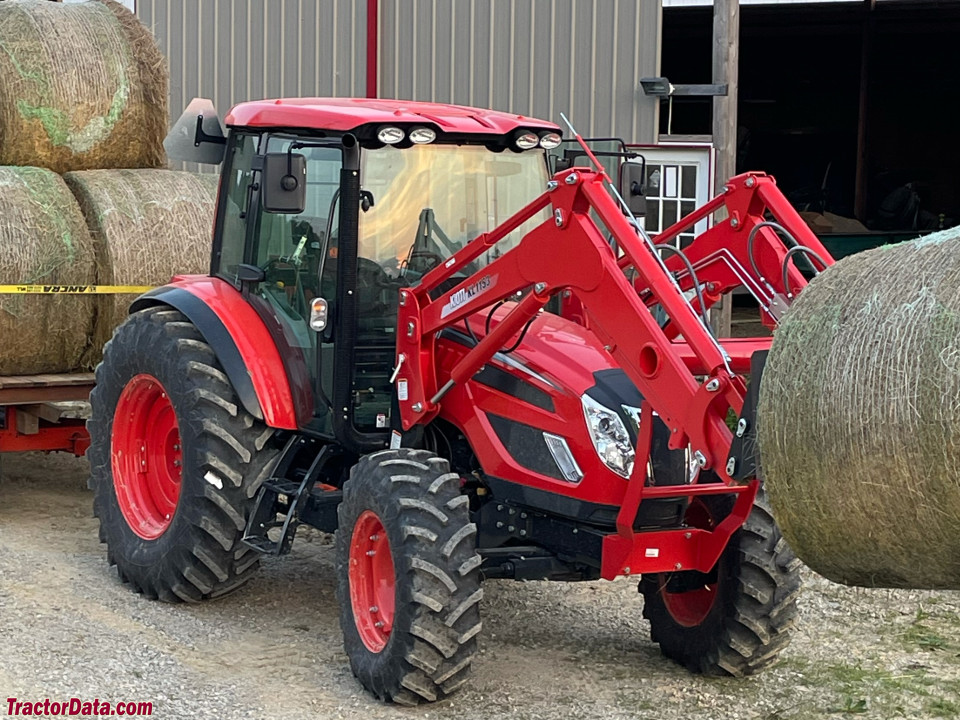

Kioti PX1153

Name: Kioti PX1153
Brand: Kioti

Kioti PX1153 — PX Series · 110 hp. Reference specifications; pending source verification.

The Kioti PX1153 is a tractor with a rated power output of 110 hp, a mid-range figure for its class. It was first introduced in 2016. The PX1153 is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a 32-speed gearbox. Its listed operating weight is 4111 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

4111 kg

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

110 hp

Recorded weight

4111 kg

Transmissions

32-speed power shuttle

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Doosan 3.4L 4-cyl dieselReference

Fuel tank129.8 LReference

Engine (gross)82.0 kWReference

Doosan DL03-LEA07Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.4 LReference

Bore/Stroke98 x 113 mmReference

Power (gross)82.0 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

32-speed power shuttleReference

Typepower shuttleReference

Gears32 forward and reverseReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)68.8 kWReference

Typeopen centerReference

Pump flow119.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)3629 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase236 cmReference

Weight4111 kgReference

Front tire13.6-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

Length429 cmReference

Width225 cmReference

Height (cab)274 cmReference

Ground clearance49 cmReference

Kioti PX1153 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
