Tractor · 2015Unverified

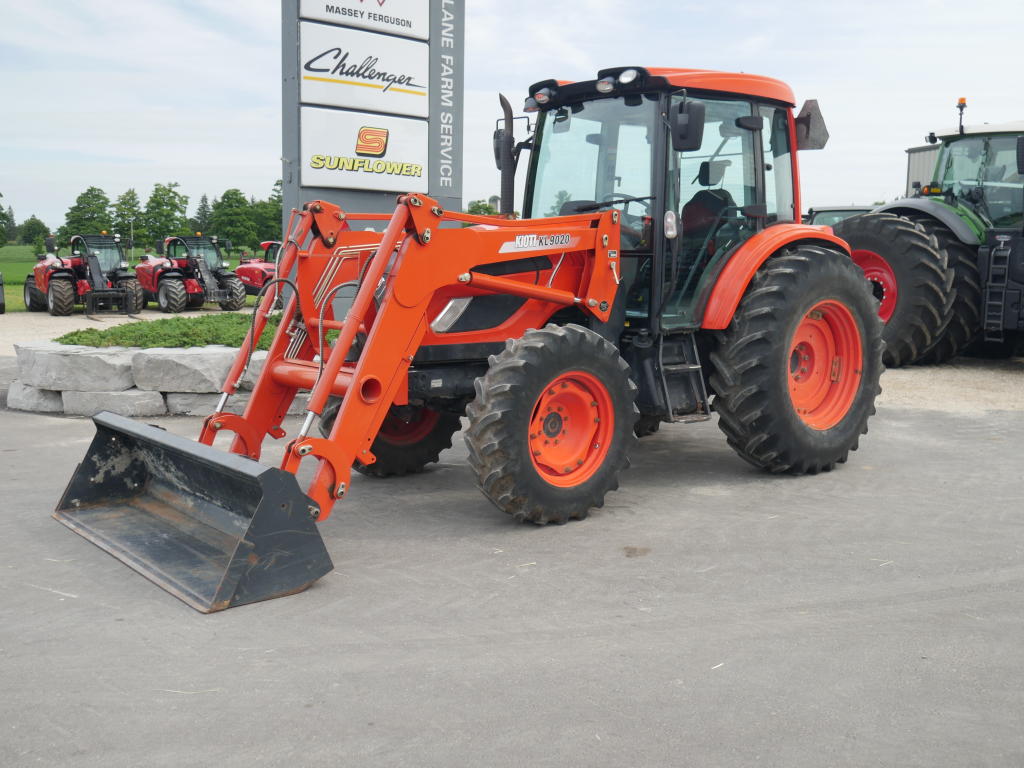

Kioti PX9020
Kioti PX9020 — PX Series · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
3615 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine (gross)68.0 kWReference
Perkins 1104D-44TReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)68.0 kWReference
Rated RPM2200Reference
Torque395.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed sychronized shuttleReference
16-speed power shuttleReference
Typesychronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
Clutchhydraulic discReference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
Typeopen centerReference
Valves2 or 3Reference
Total flow79.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase230 cmReference
Weight3615 kgReference
Front tire12.4-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length411 cmReference
Width199 cmReference
Height (cab)276 cmReference
Ground clearance49 cmReference
Front tread151 cmReference
Rear tread153 cmReference
Kioti PX9020 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
