Tractor · 2012Unverified

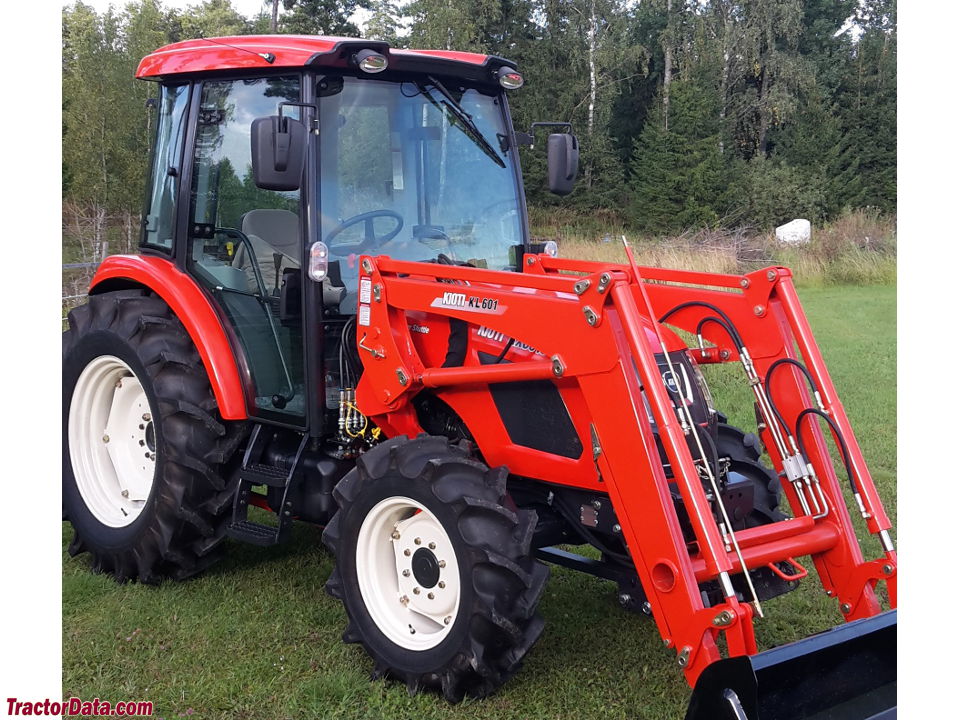

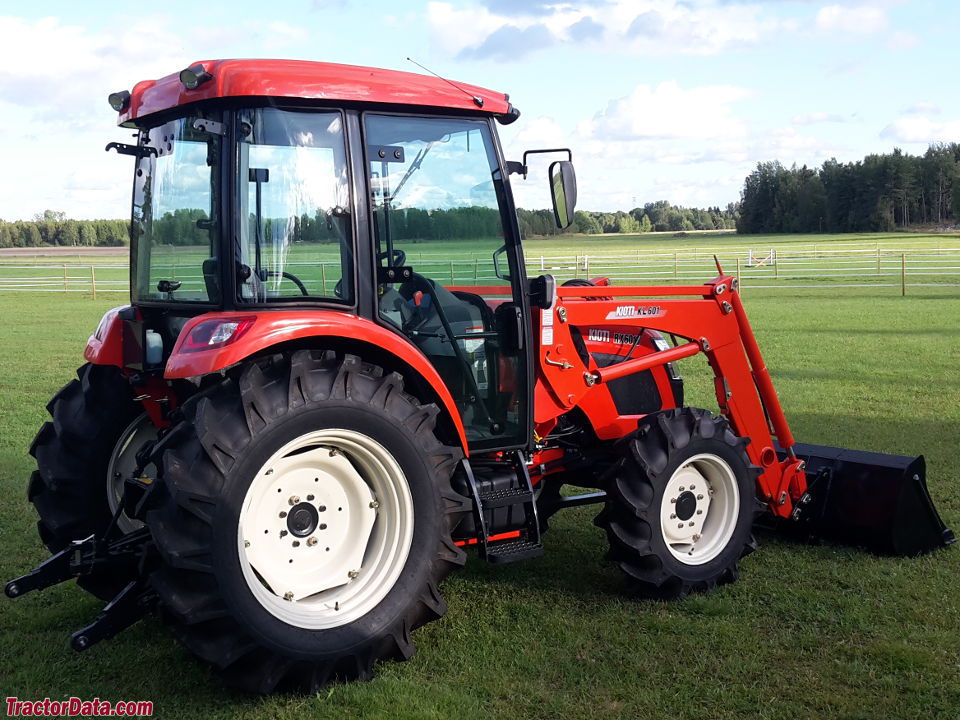

Kioti RX6010

Name: Kioti RX6010
Brand: Kioti

Kioti RX6010 — RX Series · 59 hp. Reference specifications; pending source verification.

The Kioti RX6010 is a tractor model with a rating of approximately 59 hp, positioning it at the lower end of its class. It was manufactured from 2012 to 2013. The RX6010 features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. Its listed operating weight is 2575 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Max power

59 hp

Weight

2575 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

59 hp

Recorded weight

2575 kg

Transmissions

12-speed synchro shuttle

Production years

2012-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockrear standardReference

Wet discs brakesReference

Cab standard with air-conditioning.Reference

Engine

Daedong 2.4L 4-cyl dieselReference

Fuel tank95.0 LReference

Engine (gross)44.0 kWReference

Daedong 4B243TLWMReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooled inlineReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power (gross)44.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.425x4.031 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchro shuttleReference

12-speed power shuttleReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchro Shuttle : 12 F and 12 R | Power Shuttle : 12 F and 12 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)36.6 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

Pump flow67.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1682 kgReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase210 cmReference

Weight2575 kgReference

Front tire9.5-20Reference

Rear tire14.9-28Reference

Weight499 kgReference

Ag front9.5-20Reference

Ag rear14.9-28Reference

Lawn/turf front31x13.5-15Reference

Lawn/turf rear44x18-20Reference

Industrial front12.5/80-18Reference

Industrial rear18.4-24Reference

Length370 cmReference

Width175 cmReference

Height (cab)261 cmReference

Ground clearance39 cmReference

Front tread137 cmReference

Rear tread137 cmReference

Kioti RX6010 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kioti KB2485 Backhoe

Backhoe typeKioti KB2485 BackhoeReference

2-Foot flat digging depth214 cmReference

Reach from pivot345 cmReference

Loading height203 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1700 kgReference

Dipperstick force1000 kgReference

General

Make & ModelKioti (a part of Daedong)Reference

Capacities

Capacity148.6 ciReference

Hydraulics

Capacity Valves8 ValvesReference

Hydraulics Typeopen center gear pumpReference

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition and draft controlReference

Power

Max Power59 hpReference

PTO

PTO Power49.1 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Dimensions & weight

Height Over Cab261.1 cmReference

Overall Length370.1 cmReference

Overall Width175.5 cmReference

Overall weight2,575 kgReference

Wheels & tyres

Rear wheel tread range137.4 cmReference

Front Wheel tread range137.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
