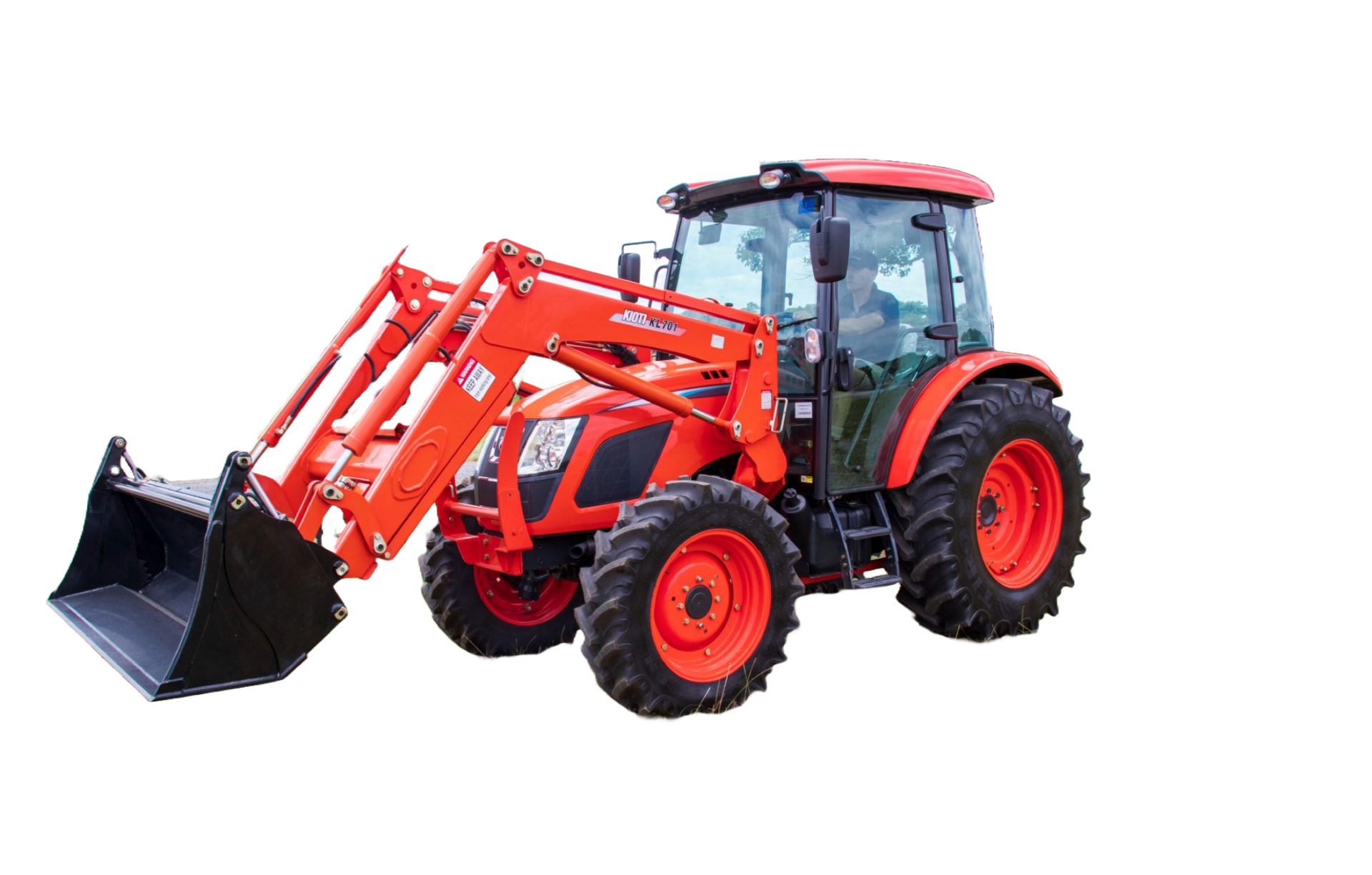

Kioti RX6030
Kioti RX6030 — Utility tractor · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
5203 to 5798 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
Daedong 2.4L 4-cyl dieselReference
ROPS Fuel tank85.2 LReference
Cab Fuel tank95.0 LReference
Engine (gross)43.3 kWReference
Daedong 4B243DTM-AReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)43.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
Typesynchro shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Typeopen centerReference
Pump flow41.6 lpmReference
Total flow67.8 lpmReference
Steering flow26.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2075 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase210 cmReference
Weight5203 to 5798 poundsReference
Front tire11.2-20Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 11.2-20. Rear: 14.9-30Reference
Length370 cmReference
Width180 cmReference
Height (ROPS)270 cmReference
Height (cab)262 cmReference
ROPS Weight2360 kgReference
Cab Weight2629 kgReference
Ground clearance41 cmReference
Kioti RX6030 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Kioti KL601 loaderReference
Kioti KL701 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
