Tractor · 2014Unverified

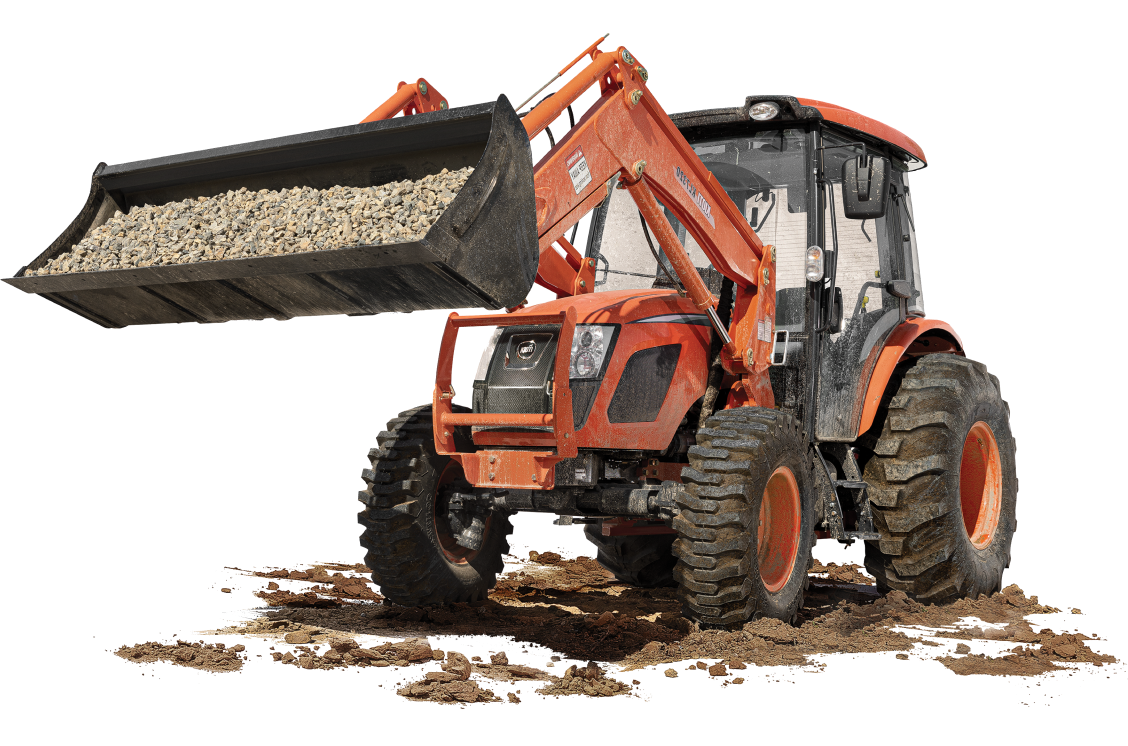

Kioti RX6620

Name: Kioti RX6620
Brand: Kioti

Kioti RX6620 — RX Series · 66 hp. Reference specifications; pending source verification.

The Kioti RX6620 is a tractor with an engine rating of approximately 66 horsepower, typical of mid-range models in its class. Produced in 2014, this model features a 4-cylinder turbocharged diesel liquid-cooled engine coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as between 5202 and 5798 pounds. It is suitable for operational areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Max power

66 hp

Weight

5202 to 5798 pounds

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

66 hp

Recorded weight

499 kg

Transmissions

12-speed synchro shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet discs brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Daedong 2.4L 4-cyl dieselReference

ROPS Fuel tank85.2 LReference

Cab Fuel tank94.6 LReference

Engine (gross)49.2 kWReference

Daedong 4F243TReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooled inlineReference

The owners of a 2021 RX6620 reports that his tractor's engine is labeled as a 4HT4.Reference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power (gross)49.2 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,600 rpmReference

Transmission

12-speed synchro shuttleReference

12-speed power shuttleReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

Transmission TypeSync ShuttleReference

forward and reverse options12F/12RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)43.0 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

Pump flow67.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1630 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase210 cmReference

Weight5202 to 5798 poundsReference

Front tire9.5-20Reference

Rear tire14.9-28Reference

Weight499 kgReference

Ag front9.5-20Reference

Ag rear14.9-28Reference

Lawn/turf front31x13.5-15/8Reference

Lawn/turf rear44x18-20/4Reference

Industrial front12.5/80-18Reference

Industrial rear18.4-24/8Reference

Length368 cmReference

Width180 cmReference

Height (ROPS)267 cmReference

Height (cab)263 cmReference

ROPS Weight2359 kgReference

Cab Weight2629 kgReference

Ground clearance41 cmReference

Front tread146 cmReference

Rear tread141 cmReference

Kioti RX6620 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kioti KB2485 Backhoe

Backhoe typeKioti KB2485 BackhoeReference

Transport height235 cmReference

Bucket width30 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth239 cmReference

Reach from pivot345 cmReference

Loading height203 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1700 kgReference

Dipperstick force1000 kgReference

General

Make & Model4F243TReference

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Capacities

Capacity148.6 cu. in.Reference

Fuel tank22.5 US gal.Reference

Power

Max Power66 hpReference

PTO

PTO Power57.6 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 / 540E rpmReference

Steering & brakes

BrakesWet Multi DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)67.8 l/minReference

Remote Valves1Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IIReference

Rear Hitch maximum lift capacity1,630.2 kgReference

Dimensions & weight

Height Over ROPS268 cmReference

Overall Length368.3 cmReference

Overall Width180.1 cmReference

Turning radius3.1 mReference

Overall weight2,359.6 kgReference

Wheels & tyres

Rear Wheel TypeRear AG. (Turf, Industrial): \\n14.9-28 (44X18X20/4, 18.4-24/8)Reference

Rear wheel tread range141.5 cmReference

Front Wheel tread range146.6 cmReference

Operator station

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
