Tractor · 2016Unverified

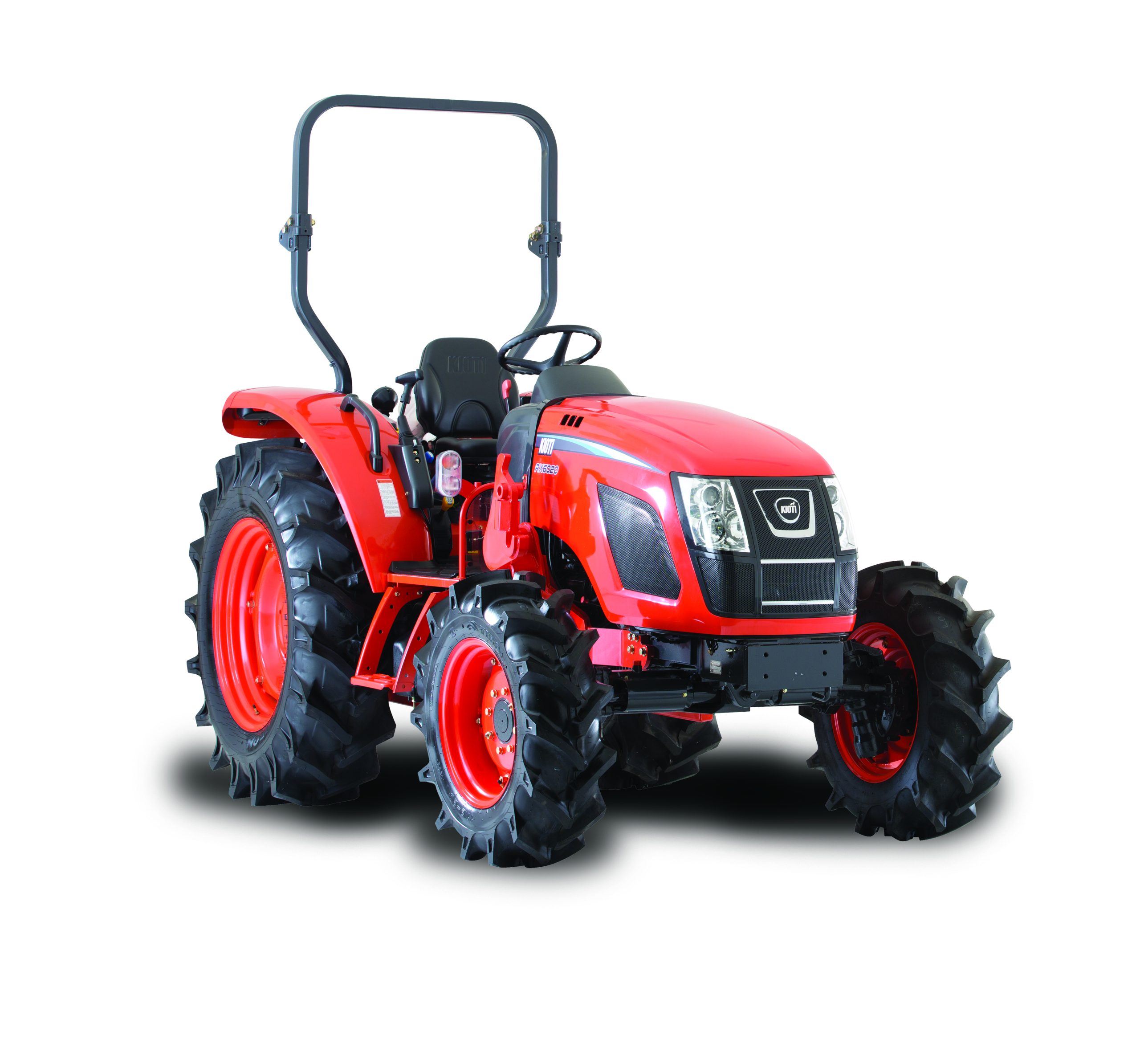

Kioti RX7030

Name: Kioti RX7030
Brand: Kioti

Kioti RX7030 — Utility tractor · 66 hp. Reference specifications; pending source verification.

The Kioti RX7030 is a tractor with an output of 66 hp, positioning it centrally within its class in terms of power. Manufactured in 2016, it features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive through a 24-speed gearbox. The RX7030 has a listed weight of 5203 to 5798 pounds. It is designed to handle tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

5203 to 5798 pounds

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

66 hp

Recorded weight

2360 kg

Transmissions

24-speed power shuttle

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Daedong 2.4L 4-cyl dieselReference

ROPS Fuel tank85.2 LReference

Cab Fuel tank95.0 LReference

Engine (gross)49.2 kWReference

Daedong 4F243DTP-AReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power (gross)49.2 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

Typeopen centerReference

Pump flow41.6 lpmReference

Total flow67.8 lpmReference

Steering flow26.1 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)2075 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Wheelbase210 cmReference

Weight5203 to 5798 poundsReference

Front tire11.2-20Reference

Rear tire14.9-30Reference

Standard tires (ag)Front: 11.2-20. Rear: 14.9-30Reference

Length370 cmReference

Width180 cmReference

Height (ROPS)270 cmReference

Height (cab)262 cmReference

ROPS Weight2360 kgReference

Cab Weight2629 kgReference

Ground clearance41 cmReference

Kioti RX7030 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Kioti KL601 loaderReference

Kioti KL701 loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
