Tractor · 2014Unverified

Kioti RX7320

Name: Kioti RX7320
Brand: Kioti

Kioti RX7320 — RX Series · 73 hp. Reference specifications; pending source verification.

The Kioti RX7320 is a tractor with a rated output of 73 hp, placing it in the middle of its class in terms of power. The model was introduced in 2014 and features a 4-cylinder turbocharged diesel liquid-cooled engine. Weights for this tractor range from 5600 to 6162 pounds, and it is suited to tasks covering around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

73 hp

Max power

73 hp

Weight

5600 to 6162 pounds

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

73 hp

Recorded weight

2540 kg

Transmissions

12-speed synchro shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet discs brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Daedong 2.4L 4-cyl dieselReference

ROPS Fuel tank85.2 LReference

Cab Fuel tank94.6 LReference

Engine (gross)54.4 kWReference

Daedong 4F243TReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooled inlineReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power (gross)54.4 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,600 rpmReference

Transmission

12-speed synchro shuttleReference

12-speed power shuttleReference

24-speed creeper power shuttleReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

Typecreeper power shuttleReference

Gears24 forward and reverseReference

Transmission TypeSync ShuttleReference

forward and reverse options12F/12RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)47.0 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

Pump flow72.7 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1768 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase213 cmReference

Weight5600 to 6162 poundsReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Ag front11.2-24Reference

Ag rear16.9-30Reference

Industrial front12.5/80-18Reference

Industrial rear18.4-24/8Reference

Length371 cmReference

Width196 cmReference

Height (ROPS)273 cmReference

Height (cab)265 cmReference

ROPS Weight2540 kgReference

Cab Weight2795 kgReference

Ground clearance43 cmReference

Front tread147 cmReference

Rear tread151 cmReference

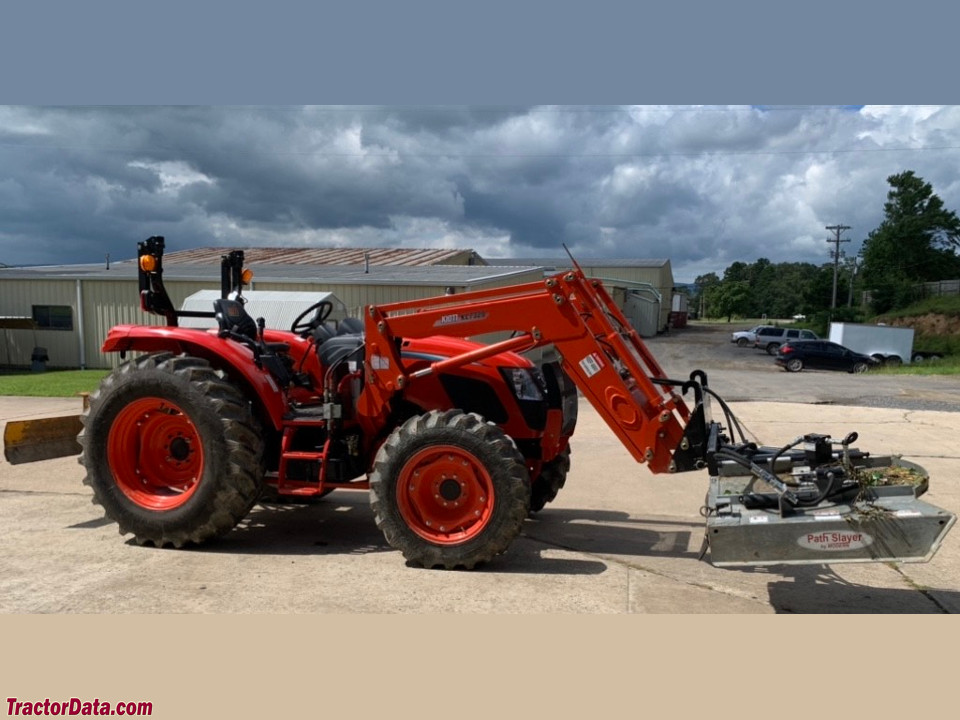

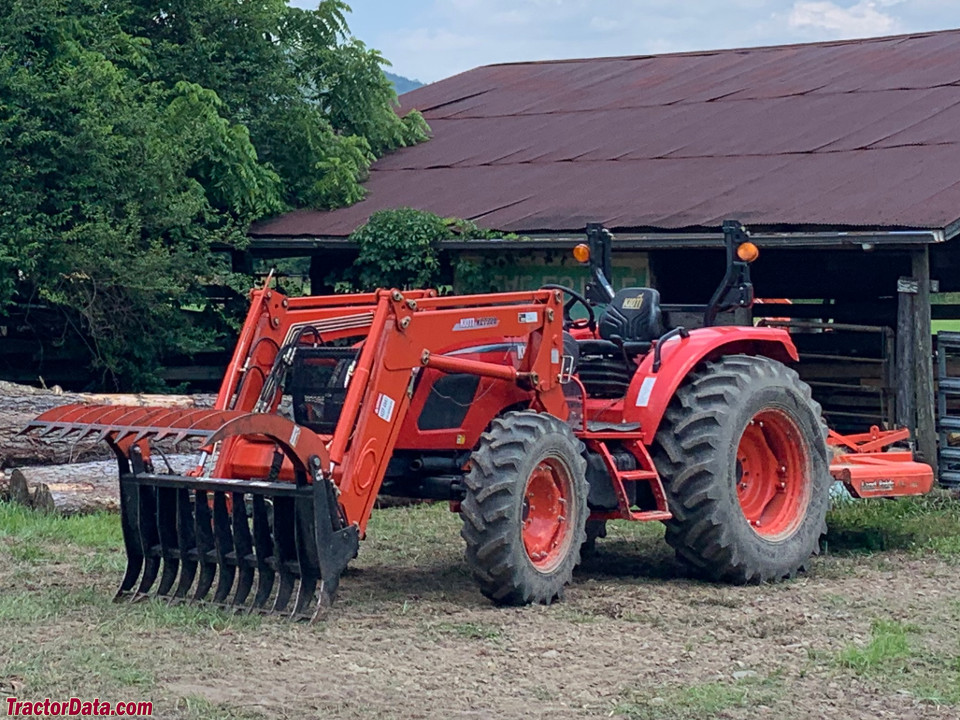

Kioti RX7320 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & Model4F243TReference

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Capacities

Capacity148.6 cu. in.Reference

Fuel tank22.5 US gal.Reference

Power

Max Power73 hpReference

PTO

PTO Power63 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 / 540E rpmReference

Steering & brakes

BrakesWet Multi DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)72.8 l/minReference

Remote Valves1Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IIReference

Rear Hitch maximum lift capacity1,768.1 kgReference

Dimensions & weight

Height Over ROPS273.1 cmReference

Overall Length371.6 cmReference

Overall Width196.1 cmReference

Turning radius3.4 mReference

Overall weight2,535.1 kgReference

Wheels & tyres

Rear Wheel TypeRear AG. (Turf, Industrial): \\n16.9-30 (N/A, 18.4-24/8)Reference

Rear wheel tread range151.4 cmReference

Front Wheel TypeFront AG. (Turf, Industrial): \\n11.2-24 (N/A, 12.5/80-18)Reference

Front Wheel tread range147.6 cmReference

Operator station

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
