Tractor · 2014Unverified

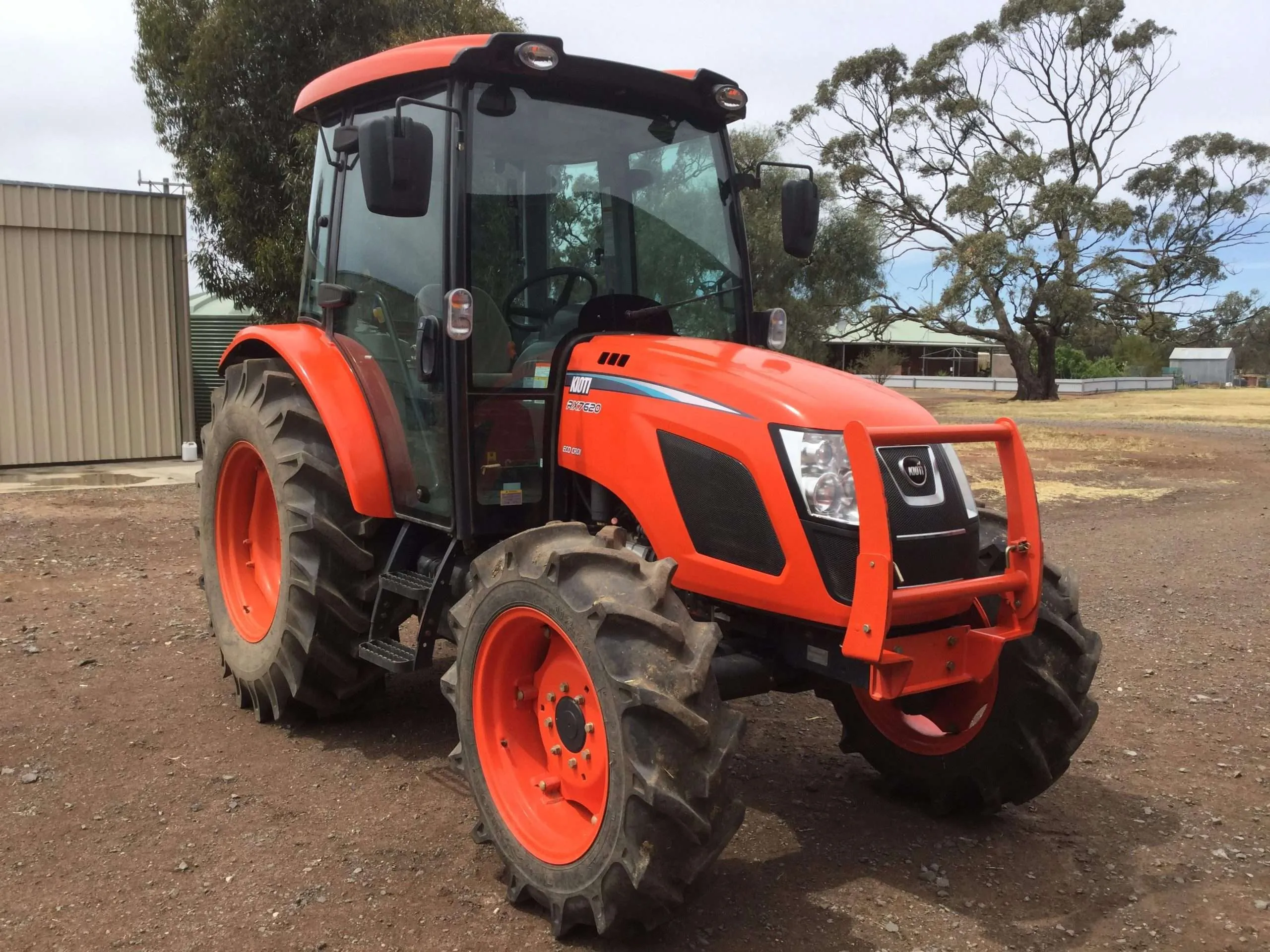

Kioti RX7620

Name: Kioti RX7620
Brand: Kioti

Kioti RX7620 — Utility tractor · 76 hp. Reference specifications; pending source verification.

The Kioti RX7620 is a mid-range tractor model rated at approximately 76 horsepower, a typical power output for its class. This model was produced in 2014. It features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a 24-speed gearbox, and has an operating weight of 5600 to 6162 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

5600 to 6162 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

76 hp

Recorded weight

2540 kg

Transmissions

24-speed power shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Daedong 2.4L 4-cyl dieselReference

ROPS Fuel tank85.2 LReference

Cab Fuel tank95.0 LReference

Engine (gross)56.7 kWReference

Daedong 4F243T-TP2Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power (gross)56.7 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

Typeopen centerReference

Valves2Reference

Pump flow41.6 lpmReference

Total flow72.7 lpmReference

Steering flow31.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1023 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Wheelbase213 cmReference

Weight5600 to 6162 poundsReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Length371 cmReference

Width196 cmReference

Height (ROPS)273 cmReference

Height (cab)265 cmReference

ROPS Weight2540 kgReference

Cab Weight2795 kgReference

Ground clearance43 cmReference

Kioti RX7620 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
