Tractor · 2010Unverified

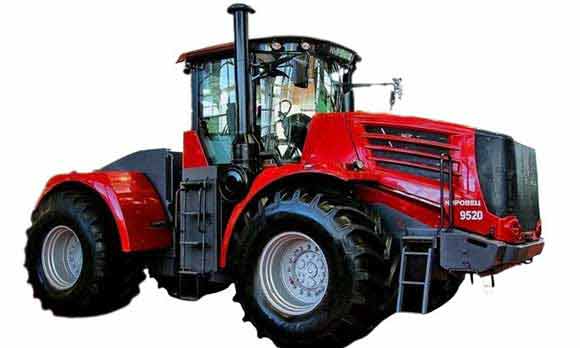

Kirovets K-9520
Kirovets K-9520 — K-9000 Series · 516 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
516 hp
Hover a source tag to verify
Overview
ManufacturerKirovetsReference
Four-wheel Drive (4WD) tractorReference
Built in Saint Petersburg, RussiaReference
Four-wheel driveReference
Articulated power steeringReference
Cab standard.Reference
Engine
Mercedes-Benz 15.9L 8-cyl dieselReference
Engine384.8 kWReference
Mercedes-Benz OM502LAReference
turbocharged dieselReference
8-cylinderReference
liquid-cooled inlineReference
Displacement15.9 LReference
Power384.8 kWReference
Starter typeelectricReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Capacities
Fuel1029.9 LReference
PTO & Hydraulics
Hydraulic system199.8 LReference
Typeclosed centerReference
Capacity199.8 LReference
Pump flow190.0 lpmReference
Rear PTO Type1000Reference
Dimensions
Front tire30.5R32Reference
Rear tire30.5R32Reference
Ag front30.5R32Reference
Ag rear30.5R32Reference
Length735 cmReference
Width307 cmReference
Height372 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
