Tractor · 1974Unverified

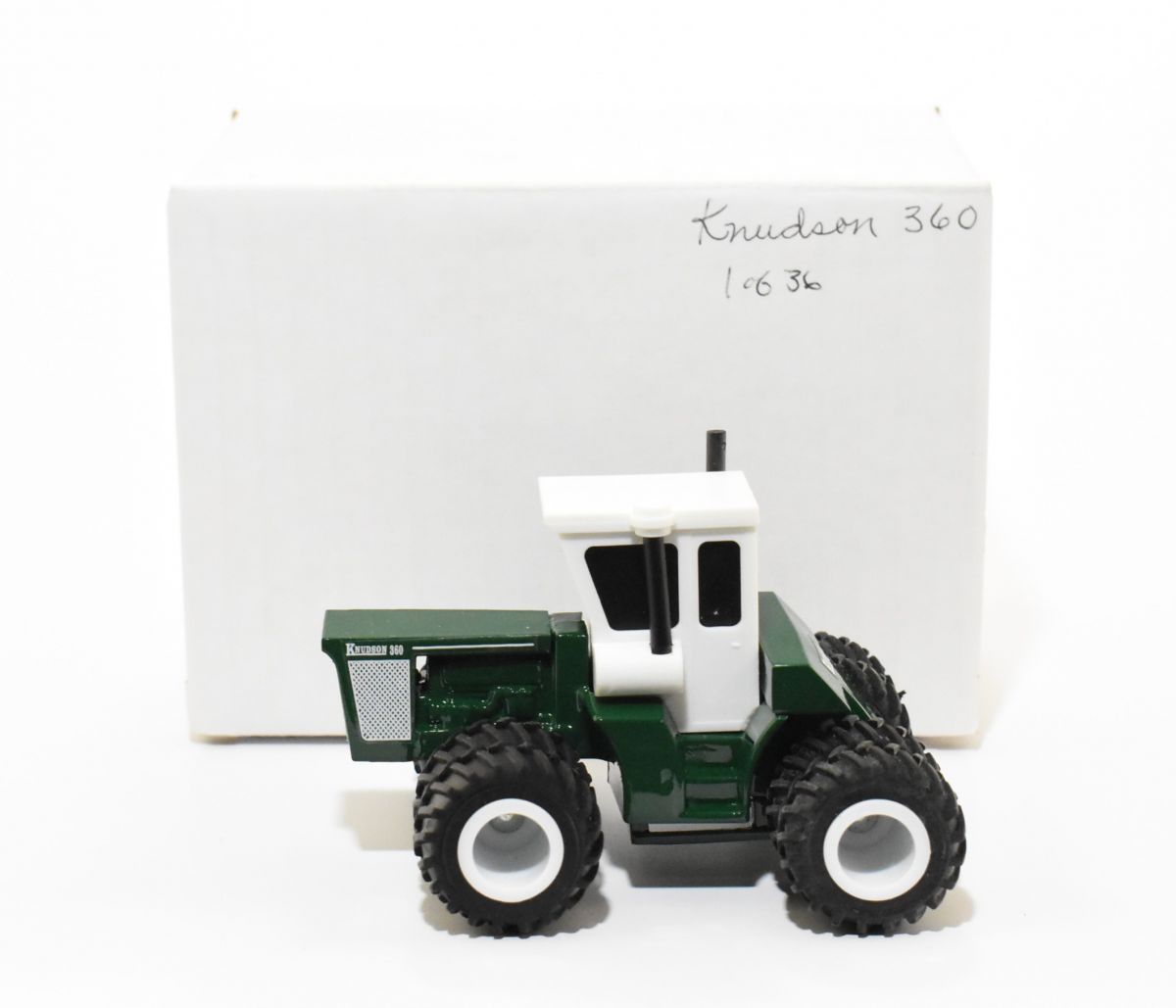

Knudson 360
Knudson 360 — Four-wheel Drive (4WD) tractor · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Weight
12700 kg
Hover a source tag to verify
Overview
ManufacturerKnudsonReference
Four-wheel Drive (4WD) tractorReference
Built in Crosby, North Dakota, USAReference
Drive4x4 4WDReference
Final drivesplanetaryReference
Power four-wheel steeringReference
Cab standard with air-conditioning.Reference
Variants
360Hhillside self-levelingReference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank2043.9 LReference
Engine268.5 kWReference
Cummins NT-855-360Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power268.5 kWReference
Air cleanerdryReference
Rated RPM2100Reference
Torque1342.4 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity39.7 LReference
Coolant capacity49.2 LReference
Transmission
12-speed gearReference
TransmissionSpicer-Dana 1262Reference
TypegearReference
Gears12 forward and 2 reverseReference
Clutch394mm cerametallic discsReference
1262 transmission with Rockwell T-228 two-speed transfer case.Reference
PTO & Hydraulics
Typeopen centerReference
Rear valves3Reference
Dimensions
Wheelbase365 cmReference
Weight12700 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Length665 cmReference
Width441 cmReference
Height345 cmReference
Max weight15876 kgReference
Electrical
Charging systemalternatorReference
Charging amps75Reference
Battery volts12Reference
Speeds
With 23.1-26 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
