Tractor · 1988Unverified

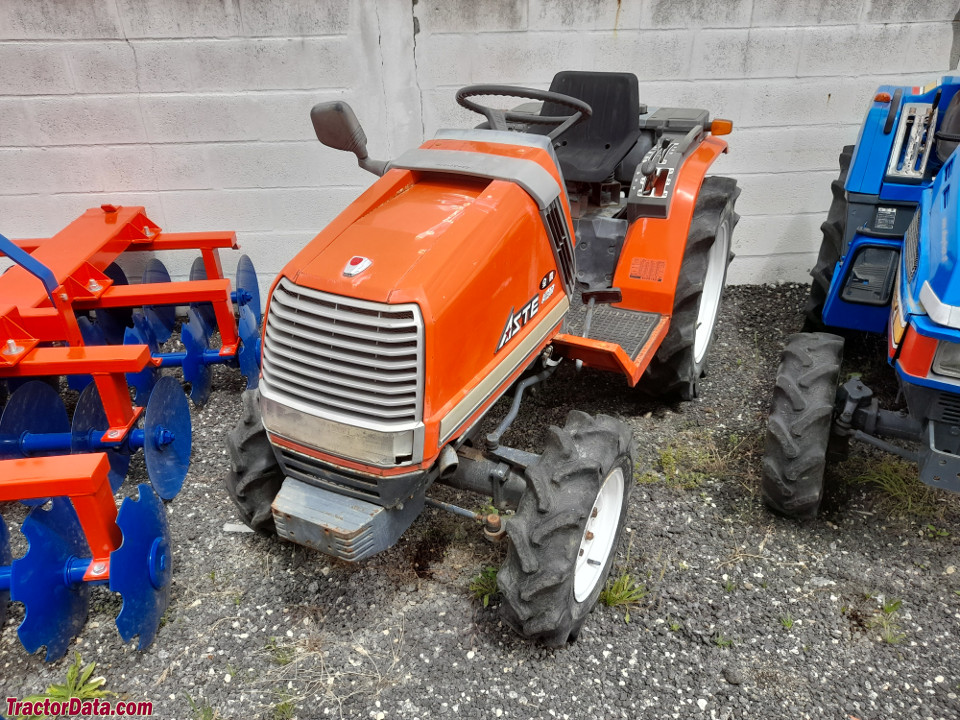

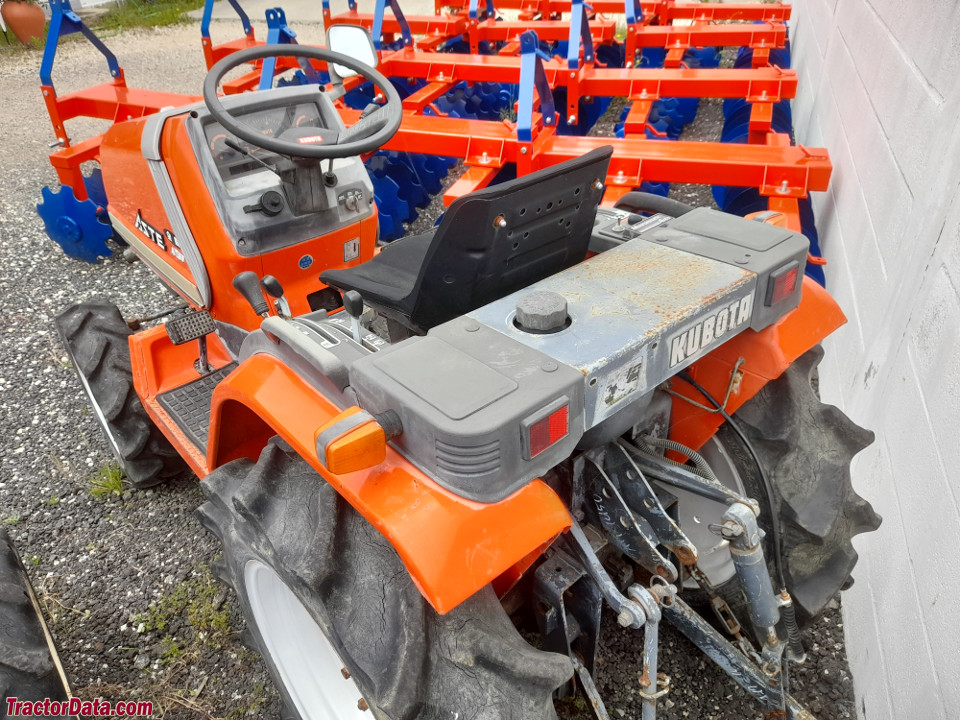

Kubota A-17
Kubota A-17 — Aste Series · 17 hp. Reference specifications; pending source verification.
The Kubota A-17 is a lightweight tractor model with a rated power output of 17 hp, positioned towards the lower end of its class. It was manufactured from 1988 to 1992 and features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 6-speed gearbox. The tractor's operating weight is specified at 659 kg, suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
659 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
17 hp
Recorded weight
659 kg
Transmissions
6-speed
Production years
1988-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank17.0 LReference
Engine12.5 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power12.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM453@2600Reference
Engine RPM799@2600Reference
Engine RPM1194@2600Reference
Dimensions
Wheelbase135 cmReference
Weight659 kgReference
Front tire6-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 6-12. Rear: 8-18Reference
Length253 cmReference
Width104 cmReference
Height125 cmReference
Ground clearance30 cmReference
Front tread82 cmReference
Rear tread81/89 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
