Tractor · 1992Unverified
Kubota A-195
Kubota A-195 — Aste Series · 19 hp. Reference specifications; pending source verification.
The Kubota A-195 is a tractor model rated at 19 hp — making it one of the more compact options in its class. This model was manufactured from 1992 to 1996. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 6-speed gearbox. Listed weight is 694 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
694 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
19 hp
Recorded weight
694 kg
Transmissions
6-speed
Production years
1992-1996
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Variants
A-195Fglide shiftReference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank17.0 LReference
Engine13.9 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power13.9 kWReference
Rated RPM2650Reference
StarterelectricReference
Starter volts12Reference

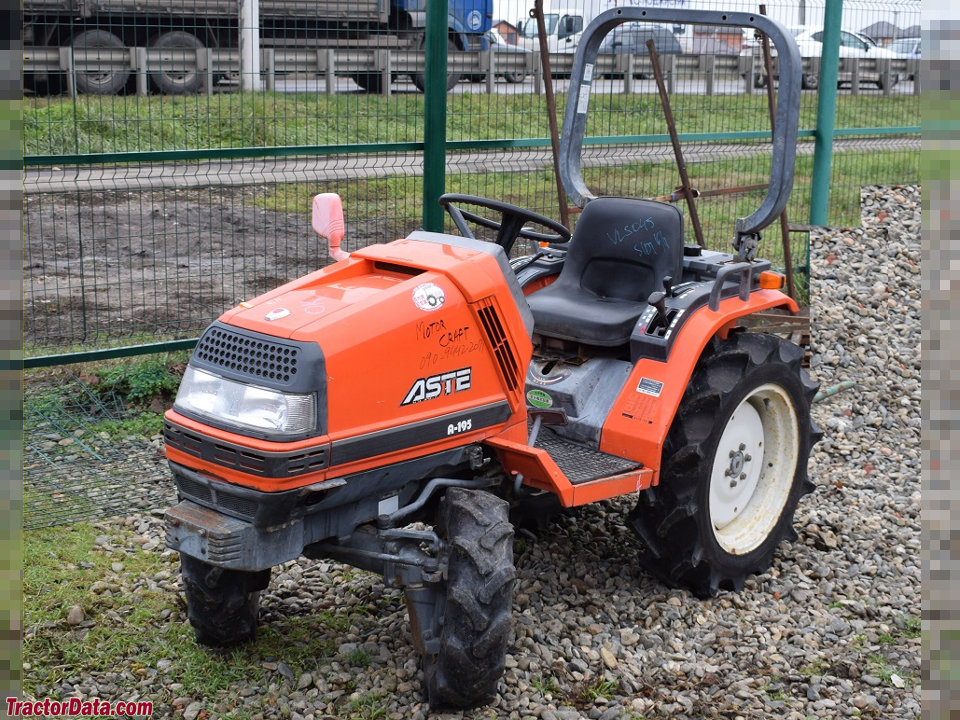

Image courtesy of Agro EngineeringReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM450@2650Reference
Engine RPM795@2650Reference
Engine RPM1187@2650Reference
Engine RPM-612@2650Reference
Dimensions
Wheelbase135 cmReference
Weight694 kgReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Length253 cmReference
Width104 cmReference
Height184 cmReference
Ground clearance30 cmReference
Front tread82 cmReference
Rear tread81/89 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
