Tractor · 1985Unverified

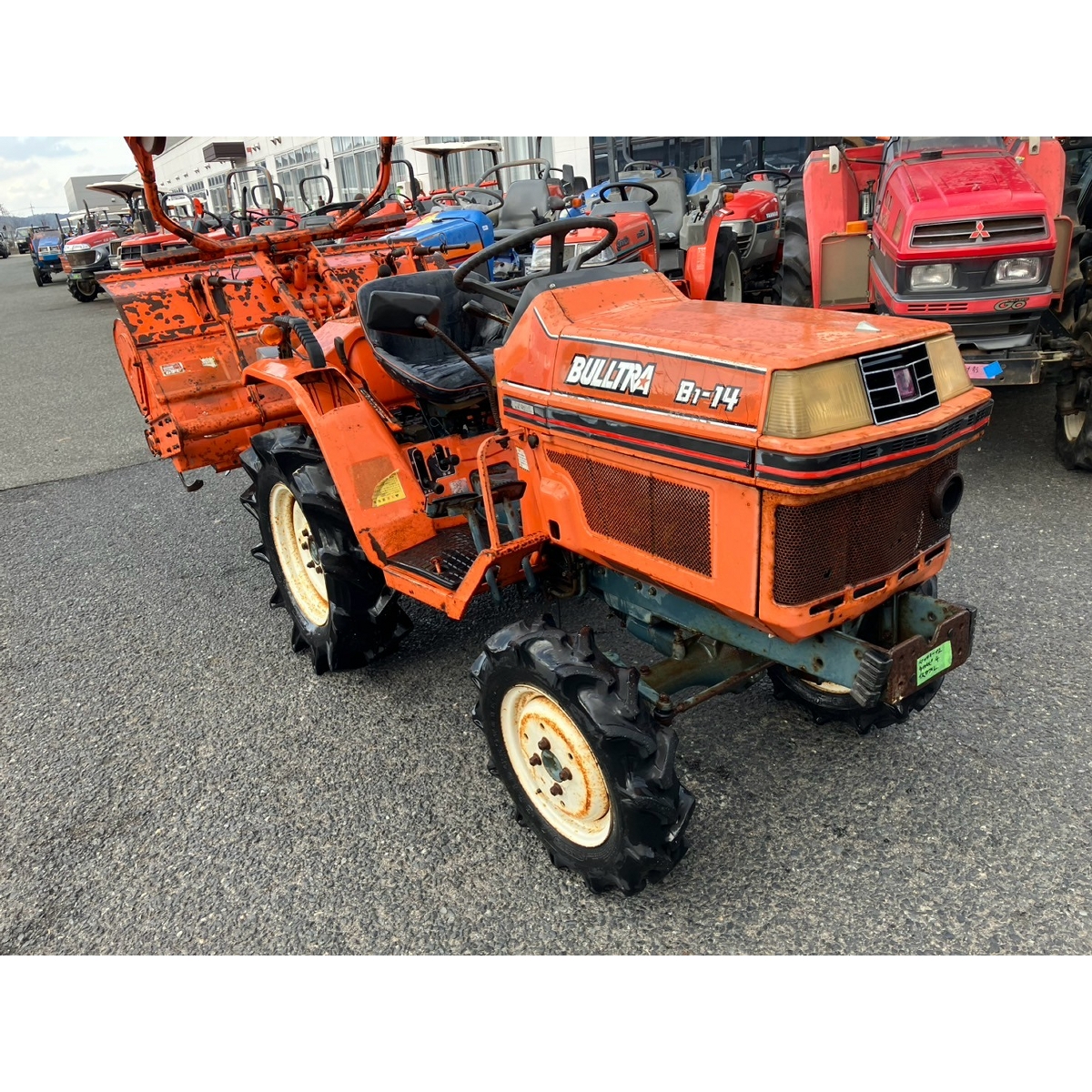

Kubota B1-14
Kubota B1-14 — Bulltra Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1202 to 1213 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
B1-14DT4WDReference
Engine
Kubota 0.9L 3-cyl dieselReference
Fuel tank17.0 LReference
Engine10.4 kWReference
Kubota D850Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Power10.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
2WD Wheelbase123 cmReference
4WD Wheelbase124 cmReference
Weight1202 to 1213 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Length214 cmReference
Width104 cmReference
2WD Height123 cmReference
4WD Height124 cmReference
2WD Weight545 kgReference
4WD Weight550 kgReference
Ground clearance23 cmReference
2WD Front tread71 cmReference
4WD Front tread76 cmReference
Rear tread81/89 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
