Tractor · 1985Unverified

Kubota B1-15

Name: Kubota B1-15
Brand: Kubota

Kubota B1-15 — Bulltra Series · 16 hp. Reference specifications; pending source verification.

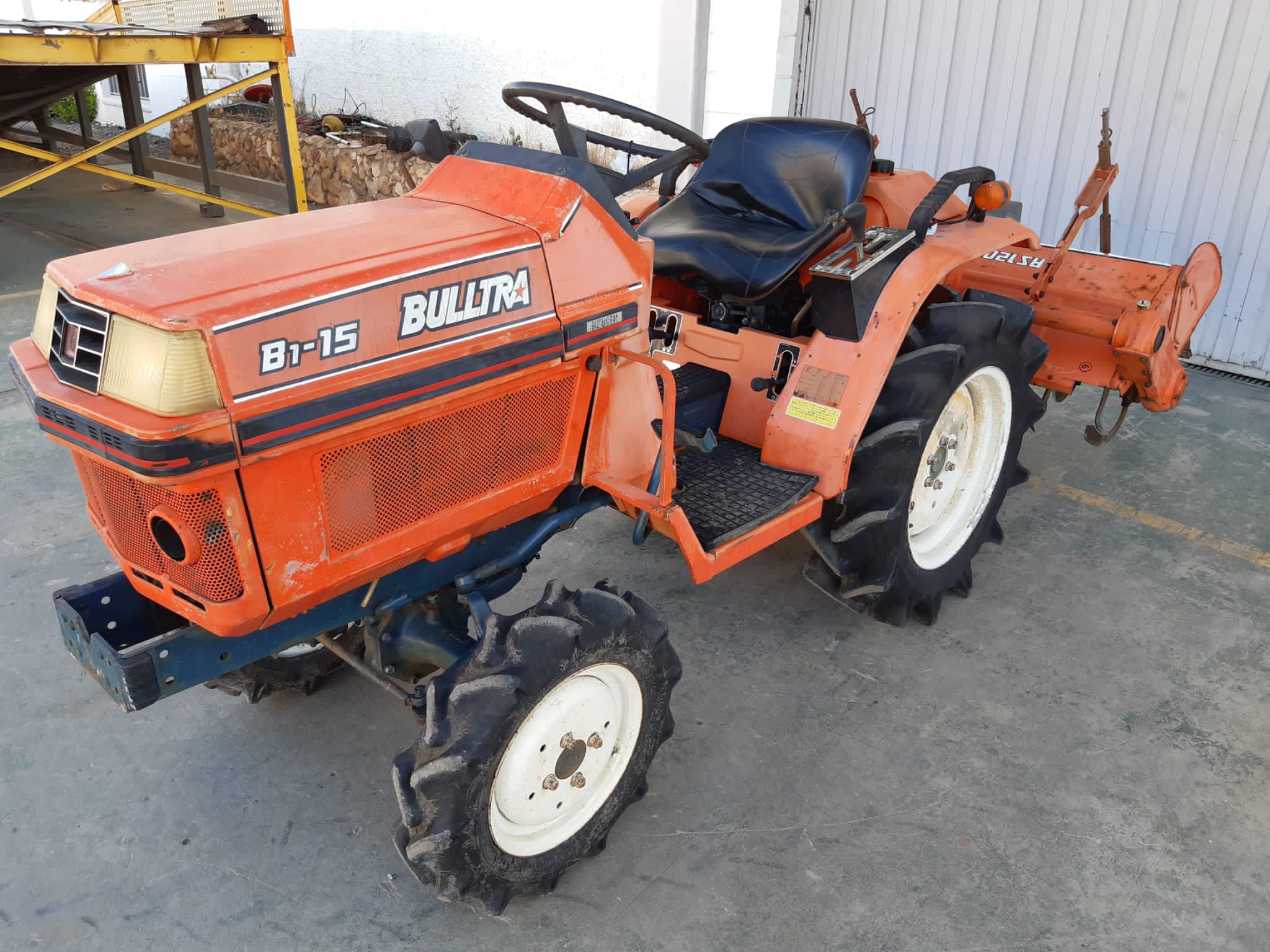

The Kubota B1-15 is a tractor with a power output of approximately 16 hp, situated at the lighter end of its class. This model was produced from 1985 to 1988. It features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 6-speed gearbox. The operating weight of the Kubota B1-15 ranges from 1235 to 1257 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

1235 to 1257 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

16 hp

Recorded weight

560 kg

Transmissions

6-speed unsynchronized gear

Production years

1985-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Built in JapanReference

Two- or four-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

B1-15DT4WDReference

Engine

Kubota 0.9L 3-cyl dieselReference

Fuel tank17.0 LReference

Engine11.9 kWReference

Kubota D850Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Bore/Stroke72 x 70 mmReference

Power11.9 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3-cylinderReference

Rated engine speed2,600Reference

Bore and stroke2.83x2.76 inchesReference

Cooling systemliquid-cooledReference

Transmission

6-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears6 forward and 2 reverseReference

forward and reverse options6 forward and 2 reverseReference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540/860/1000 (1.375)Reference

Dimensions

2WD Wheelbase123 cmReference

4WD Wheelbase124 cmReference

Weight1235 to 1257 poundsReference

Front tire4.50-10Reference

2WD Rear tire8-18Reference

2WD Standard tires (ag)Front: 4.50-10. Rear: 8-18Reference

4WD Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference

Length218 cmReference

Width105 cmReference

2WD Height124 cmReference

4WD Height124 cmReference

2WD Weight560 kgReference

4WD Weight570 kgReference

2WD Front tread71 cmReference

4WD Front tread76 cmReference

Rear tread81/89 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Country of manufacturerOption 1: Sub-Compact Utility tractor\\nOption 2: JapanReference

Capacities

Capacity52.18 ciReference

Power

Rated Power16 hpReference

PTO

Rear PTO PowerAvailableReference

Hydraulics

Rear Hitch category (SAE designation)Category 0Reference

Dimensions & weight

Overall Length218.9 cmReference

Overall Width105.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differential4WDReference

Steering & brakes

Steering typemanualReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
