Tractor · 2018Unverified

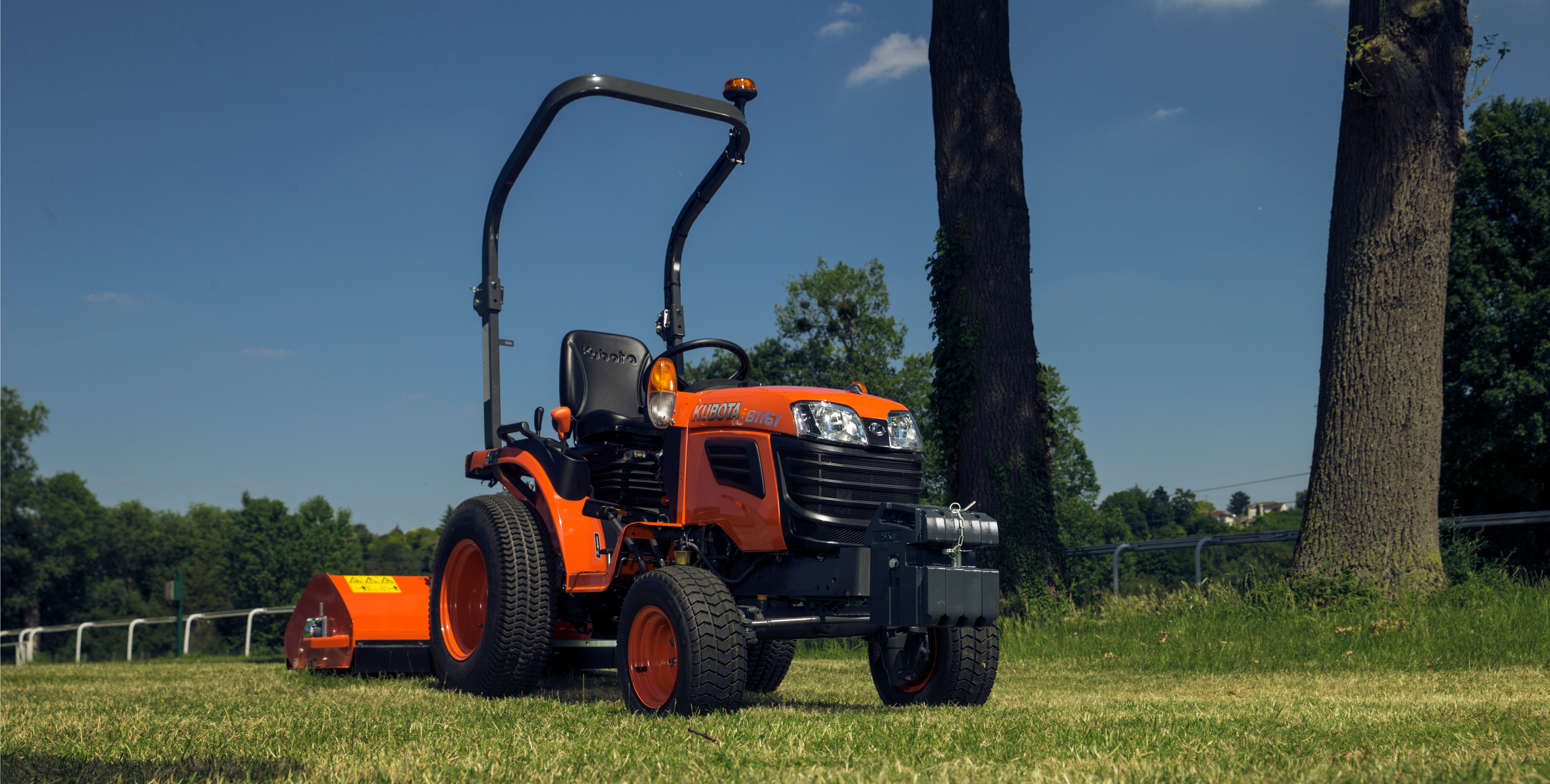

Kubota B1161
Kubota B1161 — B1 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
630 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine (net)11.0 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Rated Power (net)11.0 kWReference
Air cleanerdry elementReference
Rated RPM2900Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Pump flow14.4 lpmReference
Rear TypeIReference
Rear lift (at ends)540 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight630 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length235 cmReference
Width93 cmReference
Height (ROPS)221 cmReference
Ground clearance24 cmReference
Front tread76 to 86 cmReference
Rear tread75 to 100 cmReference
Kubota B1161 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
