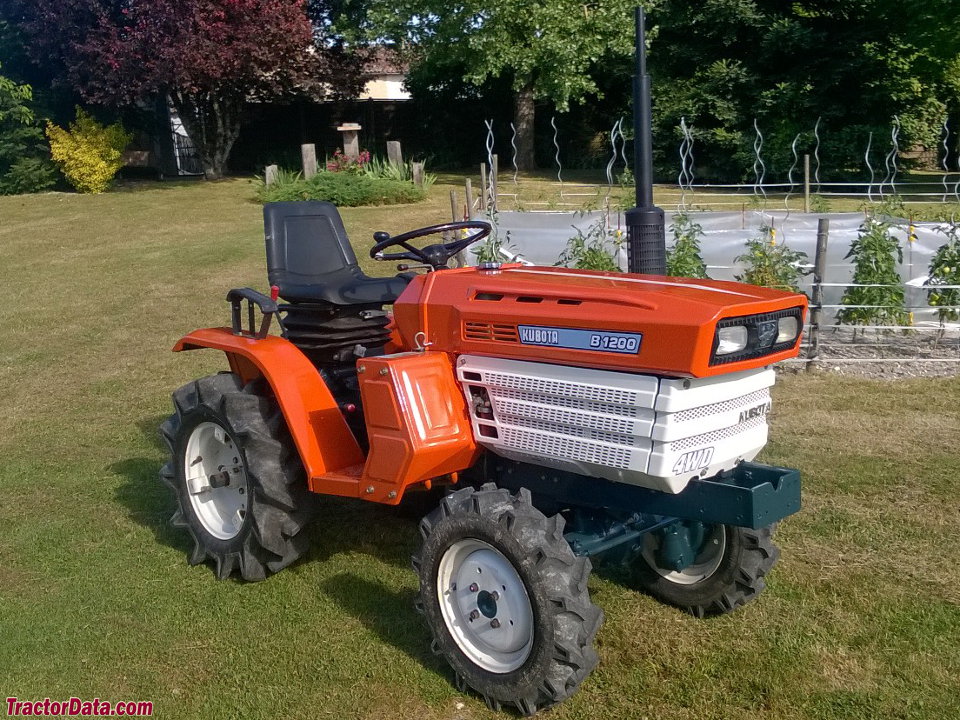

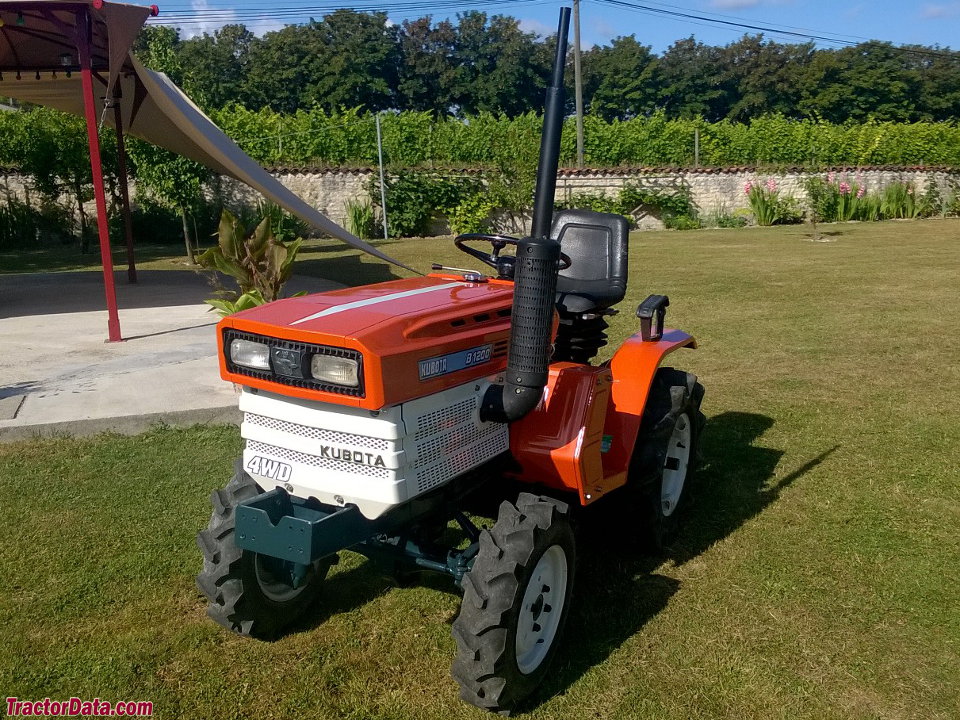

The Kubota B1200 is a tractor with an approximate engine output of 12 hp, positioning it within the lighter category of its class. It was manufactured from 1979 to 1982. The tractor features a 3-cylinder diesel liquid-cooled engine, combined with four-wheel drive and a 6-speed gearbox. Its operating weight is 480 kg, with a suitable operational area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
480 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
12 hp
Recorded weight
480 kg
Transmissions
6-speed unsynchronized gear
Production years
1979-1982
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
SteeringmanualReference
Open operator station. Two-post ROPS optional.Reference
Engine
Kubota 0.8L 3-cyl dieselReference
Engine11.9 kWReference
Kubota D750LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 70 mmReference
Power11.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)8.9 kWReference
Rear TypeIReference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
Wheelbase124 cmReference
Weight480 kgReference
Front tire5.00-12Reference
Rear tire8-16Reference
Ag front5.00-12Reference
Ag rear8-16Reference
Length214 cmReference
Width103 cmReference
Height (ROPS)186 cmReference
Ground clearance21 cmReference
Front tread76 cmReference
Rear tread76 to 87 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
