Tractor · 2018Unverified

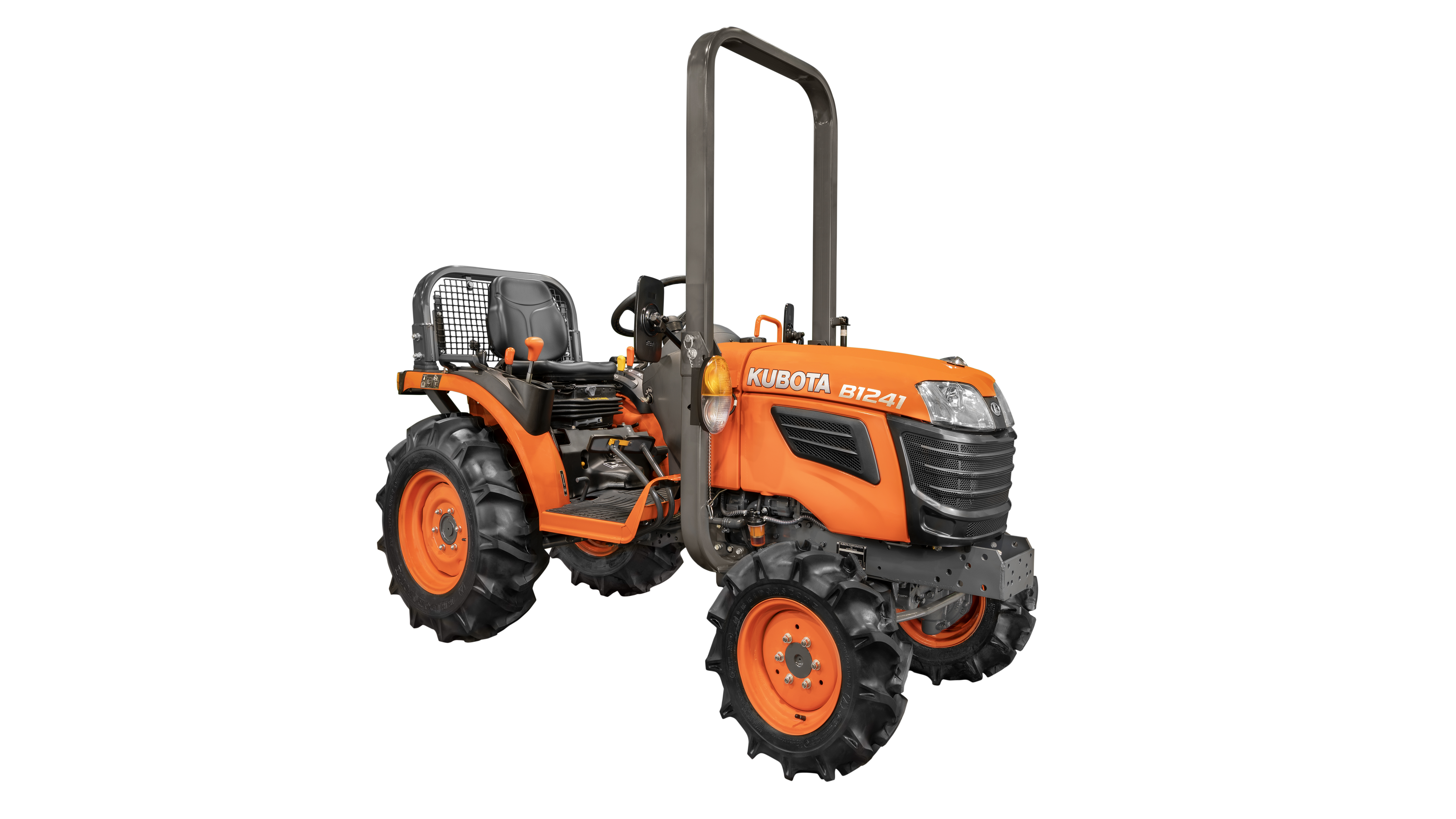

Kubota B1241
Kubota B1241 — B1 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
739 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank26.1 LReference
Engine (net)16.0 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Rated Power (net)16.0 kWReference
Air cleanerdry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Pump flow17.0 lpmReference
Rear TypeIReference
Rear lift (at ends)615 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight739 kgReference
Front tire23x10.50-12Reference
Rear tire280/70R18Reference
Standard tires (ag)Front: 23x10.50-12. Rear: 280/70R18Reference
Length241 cmReference
Width99 cmReference
Height (ROPS)221 cmReference
Ground clearance26 cmReference
Front tread79 to 81 cmReference
Rear tread75 to 100 cmReference
Kubota B1241 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
