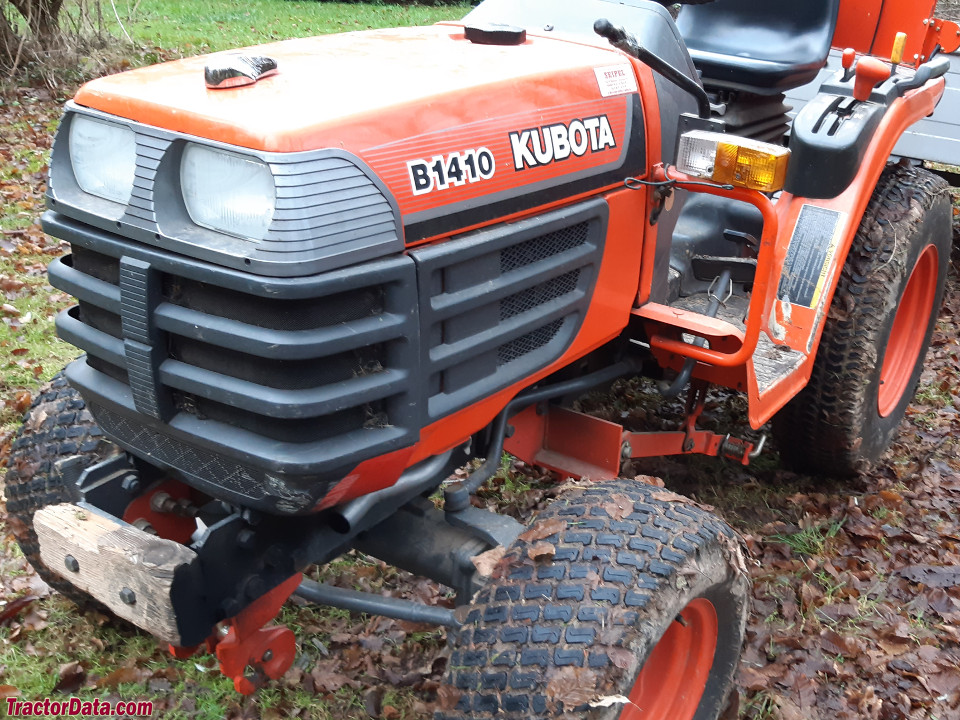

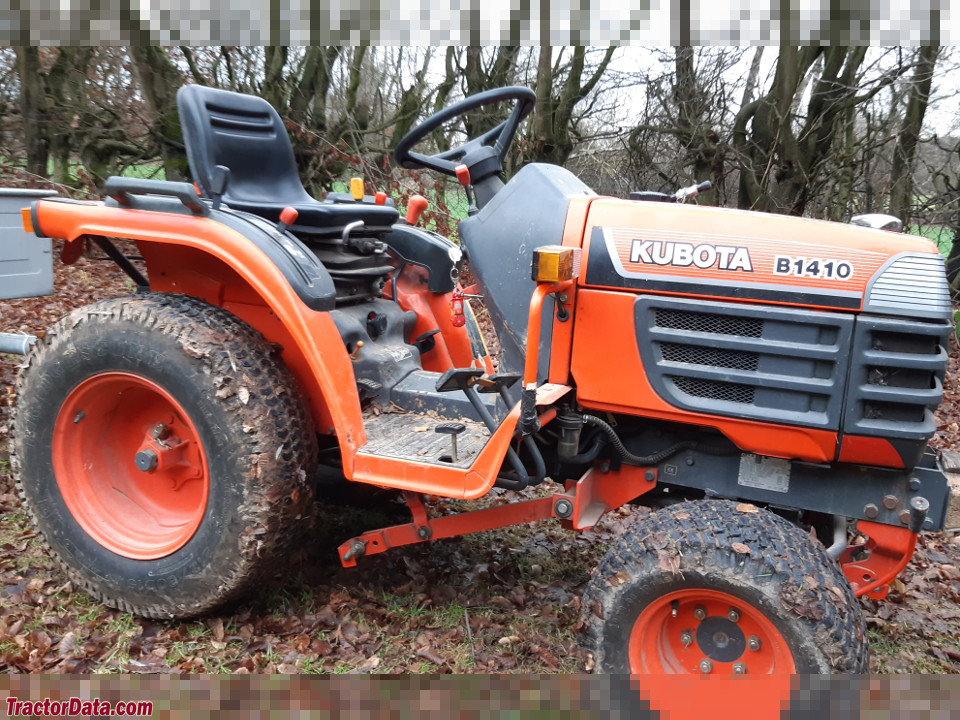

Kubota B1410
Kubota B1410 — Super B SeriesSub-Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
The Kubota B1410 is a tractor model rated at 14 hp — making it one of the more compact options in its class. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 6-speed gearbox. Listed weight is 509 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
509 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
14 hp
Recorded weight
509 kg
Transmissions
6-speed
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanicalReference
Wet disc brakesReference
Open operator station.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine (gross)10.3 kWReference
Engine (net)9.6 kWReference
Kubota D662Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke64 x 68 mmReference
Power (net)9.6 kWReference
Power (gross)10.3 kWReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)8.1 kWReference
Rear TypeIReference
Rear lift (at ends)539 kgReference
Rear PTO Type540/1000 (1.375)Reference
Mid PTO Type2545Reference
Dimensions
Wheelbase127 cmReference
Weight509 kgReference
Front tire4.5-10Reference
Rear tire7-16Reference
Ag front4.5-10Reference
Ag rear7-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear212/80D-15Reference
Length203 cmReference
Width93 cmReference
Height123 cmReference
Ground clearance24 cmReference
Front tread77 cmReference
Rear tread71 to 103 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
