Tractor · 1980Unverified

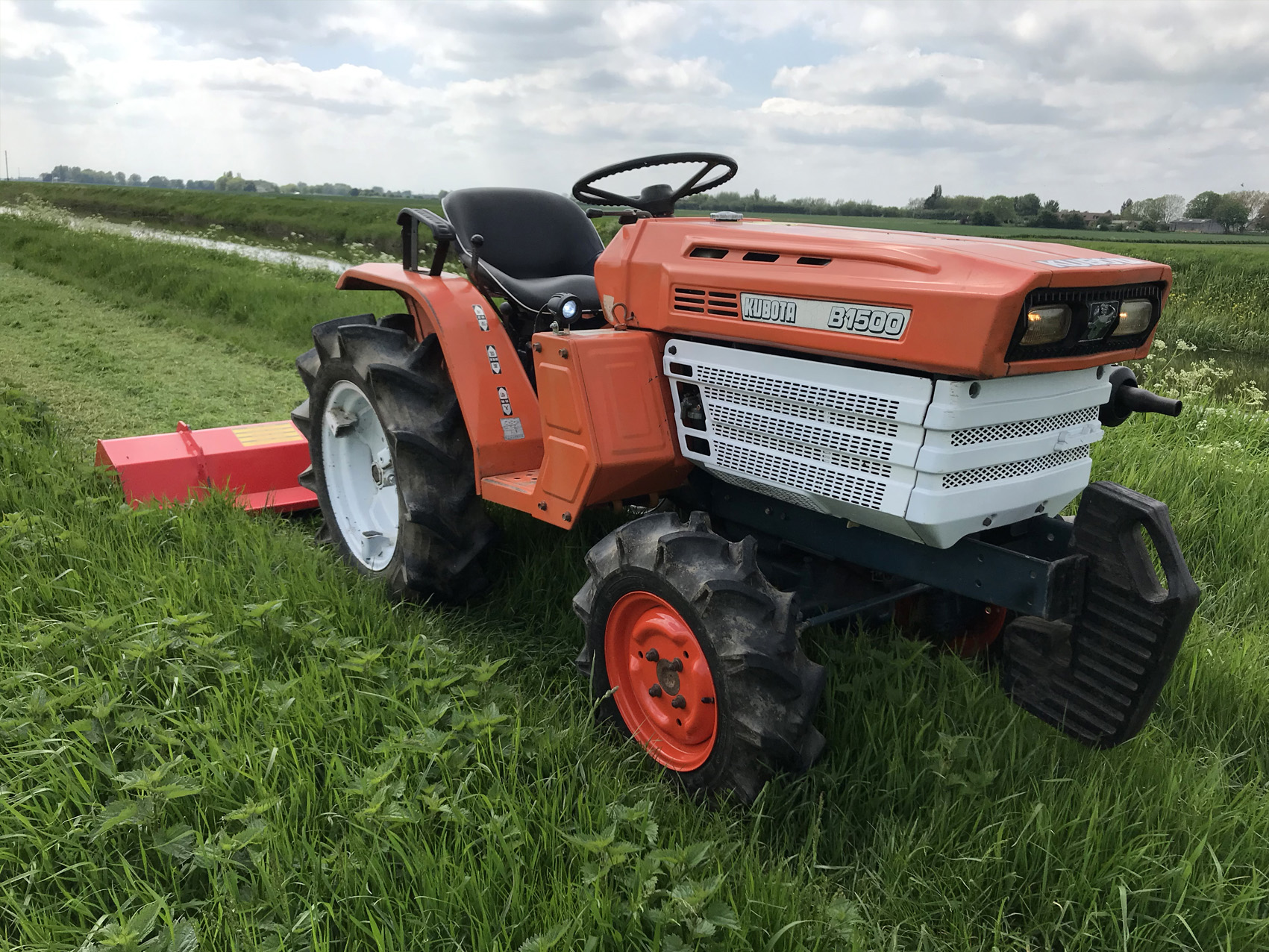

Kubota B1500
Kubota B1500 — B00 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
544 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
SteeringmanualReference
Open operator station. Two-post ROPS optional.Reference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine14.2 kWReference
Kubota D850Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Power14.2 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Rear TypeIReference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
Wheelbase125 cmReference
Weight544 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Length220 cmReference
Width104 cmReference
Height (ROPS)199 cmReference
Ground clearance23 cmReference
Front tread76 cmReference
Rear tread81 to 85 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
