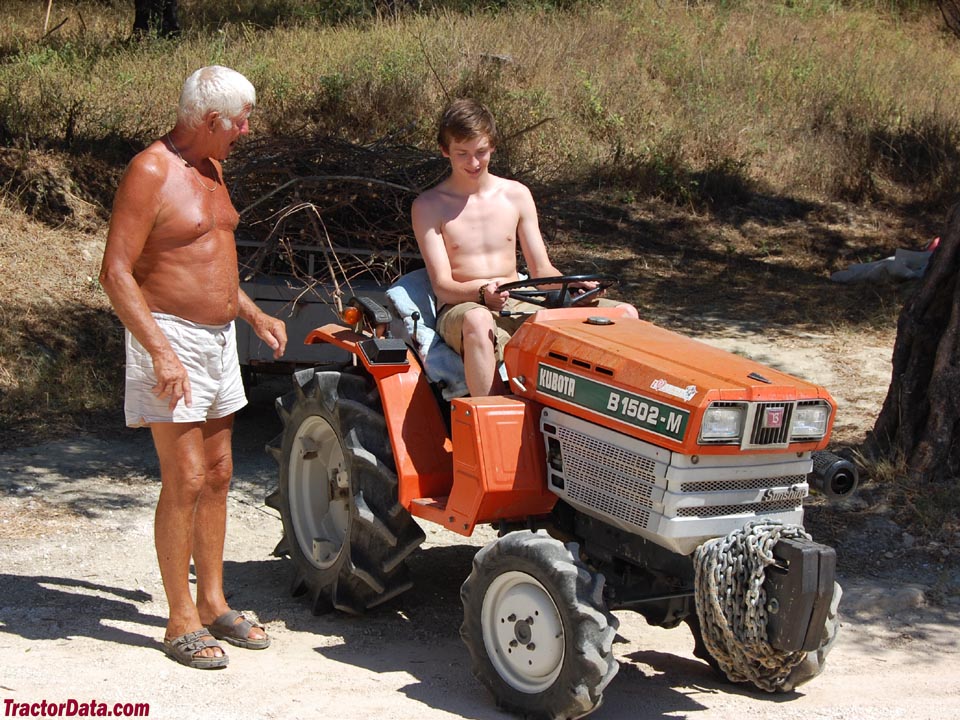

The Kubota B1502 is a compact tractor with a power rating of 15 hp, positioning it among the smaller options in its class. Produced from 1981 to 1985, it features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a 6-speed gearbox. It is suitable for tasks on plots of around up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
15 hp
Transmissions
6-speed unsynchronized gear
Production years
1981-1985
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
B1502E2WDReference
B1502DT4WDReference
ZB1502Zennoh tractorReference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine11.0 kWReference
Kubota D850Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Power11.0 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity3.4 LReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
Oil type[-17o↔37oC]Reference
0o↔100oF [-17o↔37oC]: SAE 10W-30Reference
Capacities
Front hubs0.5 LReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540/750/1000Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Dimensions
Length250 cmReference
Width95 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
