Tractor · 1988Unverified

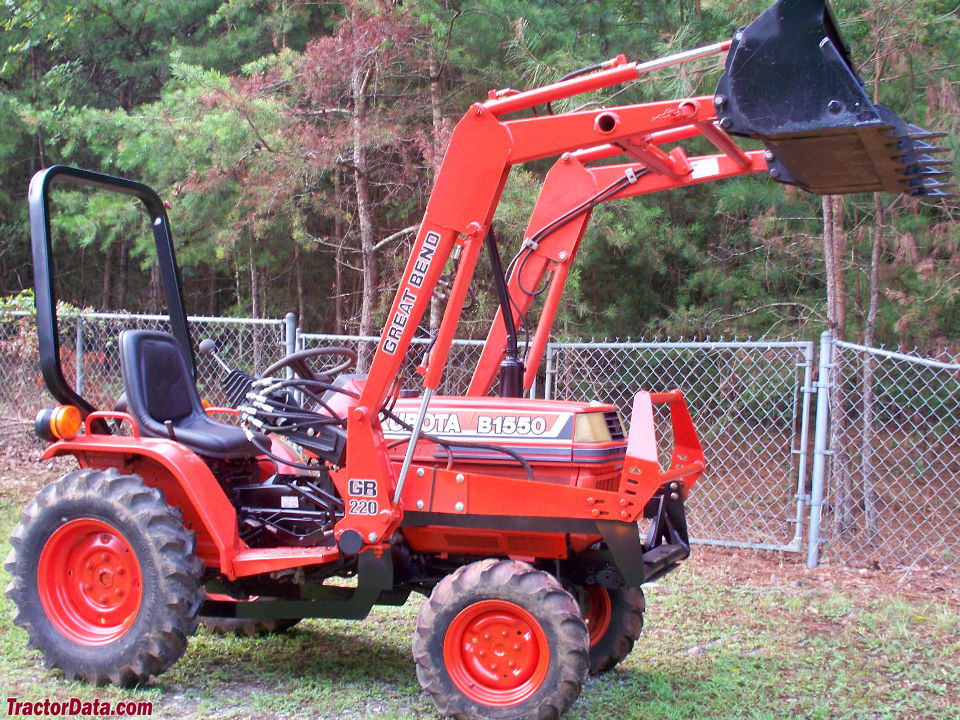

Kubota B1550

Kubota B1550 — B Series · 17 hp. Reference specifications; pending source verification.

The Kubota B1550 is a compact tractor with a power rating of 17 hp. Manufactured from 1988 to 1997, it features a 3-cylinder diesel liquid-cooled engine and a hydrostatic transmission driving through four-wheel drive. The listed operating weight ranges from 1224 to 1389 pounds, making it suitable for tasks requiring up to 200 acres of coverage.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
17 hp
Weight
1224 to 1389 pounds

Catalogue coverage

Variants represented
2
Richest spec table
128 rows
Recorded power
17 hp
Transmissions
6-speed gear
Production years
1988-1997
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower optionalReference
Dry disc brakesReference
Two-post ROPS.Reference

Engine

Kubota 0.9L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine (gross)12.7 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Power (gross)12.7 kWReference
Rated RPM2600Reference
Starter volts12Reference
Fuel TypeDieselReference
No of Cylinders3-cylinderReference
Rated engine speed2,600Reference
Bore and stroke2.835x2.756 inchesReference
Cooling systemliquid-cooledReference

Transmission

6-speed gearReference
hydrostaticReference
2WD gear Shipping555 kgReference
4WD gear Shipping610 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

Gear PTO (claimed)10.4 kWReference
Hydro PTO (claimed)9.3 kWReference
Typeopen centerReference
Pump flow20.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift375 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2517Reference
Engine RPM858@2517Reference
Mid PTOliveReference
Mid PTO Type2455 (Kubota 10 tooth)Reference
Engine RPM2455@2517Reference
Front PTOoptionalReference

Dimensions

Wheelbase147 cmReference
Weight1224 to 1389 poundsReference
Front tire5.00-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 5.00-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8-16Reference
Length256 cmReference
Width99 cmReference
Height187 cmReference
Flange rear axleReference
2WD Front tread71 cmReference
4WD Front tread79 cmReference
Rear tread78 to 90 cmReference
2WD hydro Shipping570 kgReference
4WD hydro Shipping630 kgReference

Kubota B1550 attachments

48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference

Electrical

GroundnegativeReference
Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Kubota B1640A loaderReference
Kubota LA300 loaderReference
BackhoeReference

Kubota BL4520B Backhoe

Backhoe typeKubota BL4520B BackhoeReference
Transport height150 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth205 cmReference
Reach from pivot246 cmReference
Loading height151 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force607 kgReference

Kubota B4572 Backhoe

Backhoe typeKubota B4572 BackhoeReference
Transport height179 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference

Kubota B4672 Backhoe

Backhoe typeKubota B4672 BackhoeReference
Transport height179 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference

General

Make & ModelKubotaReference

Capacities

Capacity52.2 ciReference

PTO

Rear PTO PowerAvailableReference
Front PTO PowerAvailableReference

Hydraulics

Hydraulics Typeopen centerReference
Rear Hitch category (SAE designation)Category IReference
Rear Hitch maximum lift capacity375.1 kgReference
Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Height187.2 cmReference
Overall Length256.5 cmReference
Overall Width99.1 cmReference

Steering & brakes

Steering typemanual, power optionalReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
