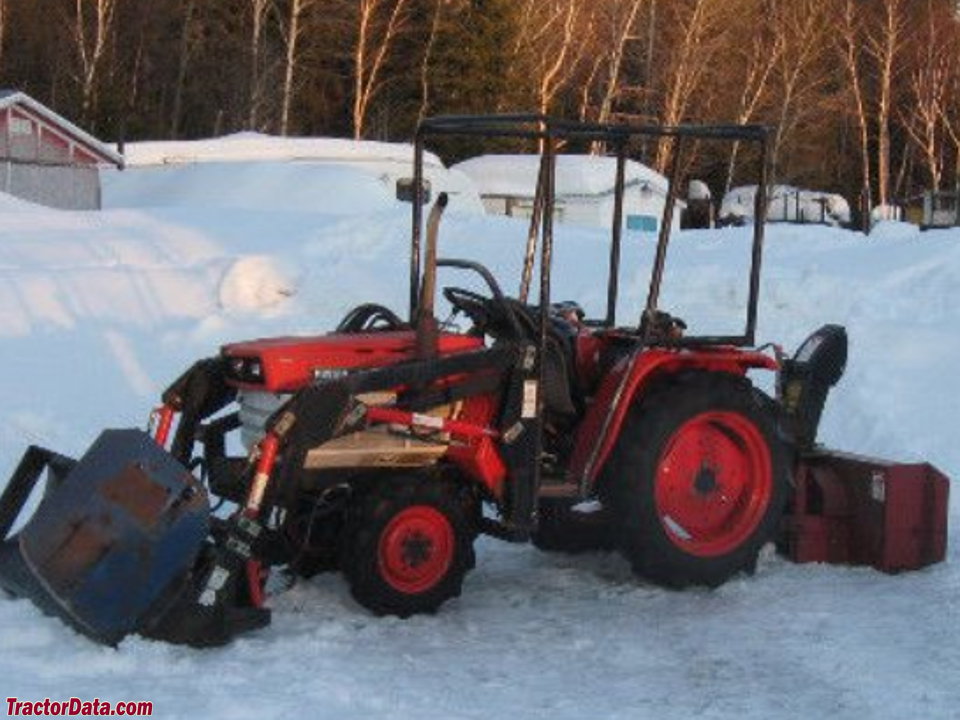

The Kubota B1600 is a compact tractor, featuring a 16 hp rated output. It was manufactured from 1979 to 1982 and is equipped with a 3-cylinder diesel liquid-cooled engine, which powers mechanical front-wheel drive via a 12-speed gearbox. The tractor has a listed weight of 639 kg and is designed for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
639 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
16 hp
Recorded weight
639 kg
Transmissions
12-speed unsynchronized gear
Production years
1979-1982
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
SteeringmanualReference
Open operator station. Two-post ROPS optional.Reference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine14.9 kWReference
Kubota D950Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Power14.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
Rear TypeIReference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
Wheelbase135 cmReference
Weight639 kgReference
Front tire5.00-12Reference
Rear tire8.3-22Reference
Ag front5.00-12Reference
Ag rear8.3-22Reference
Length242 cmReference
Width108 cmReference
Height (ROPS)189 cmReference
Ground clearance23 cmReference
Front tread76 cmReference
Rear tread85 to 97 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
