Tractor · Unverified

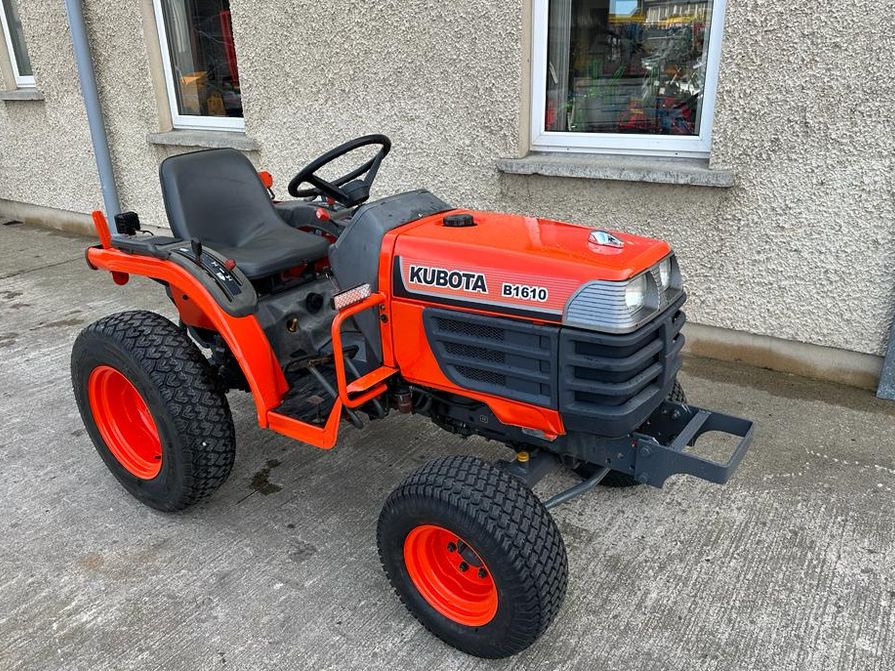

Kubota B1610
Kubota B1610 — Super B SeriesSub-Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
The Kubota B1610 is a tractor model with a rated power of 16 hp, positioning it at the lighter end of its class. It features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 6-speed gearbox. The tractor has a listed operating weight of 522 kg, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
522 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
16 hp
Recorded weight
522 kg
Transmissions
6-speed
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanicalReference
Wet disc brakesReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine (gross)11.7 kWReference
Engine (net)10.7 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Power (net)10.7 kWReference
Power (gross)11.7 kWReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)9.2 kWReference
Rear Type1Reference
Rear lift (at ends)539 kgReference
Rear PTO Type540/1000 (1.375)Reference
Mid PTO Type2545Reference
Dimensions
Wheelbase127 cmReference
Weight522 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Ag front5-12Reference
Ag rear8-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear212/80D-15Reference
Length203 cmReference
Min Width92 cmReference
Height125 cmReference
Ground clearance26 cmReference
Front tread76 cmReference
Rear tread71 to 103 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
