Tractor · 2015Unverified

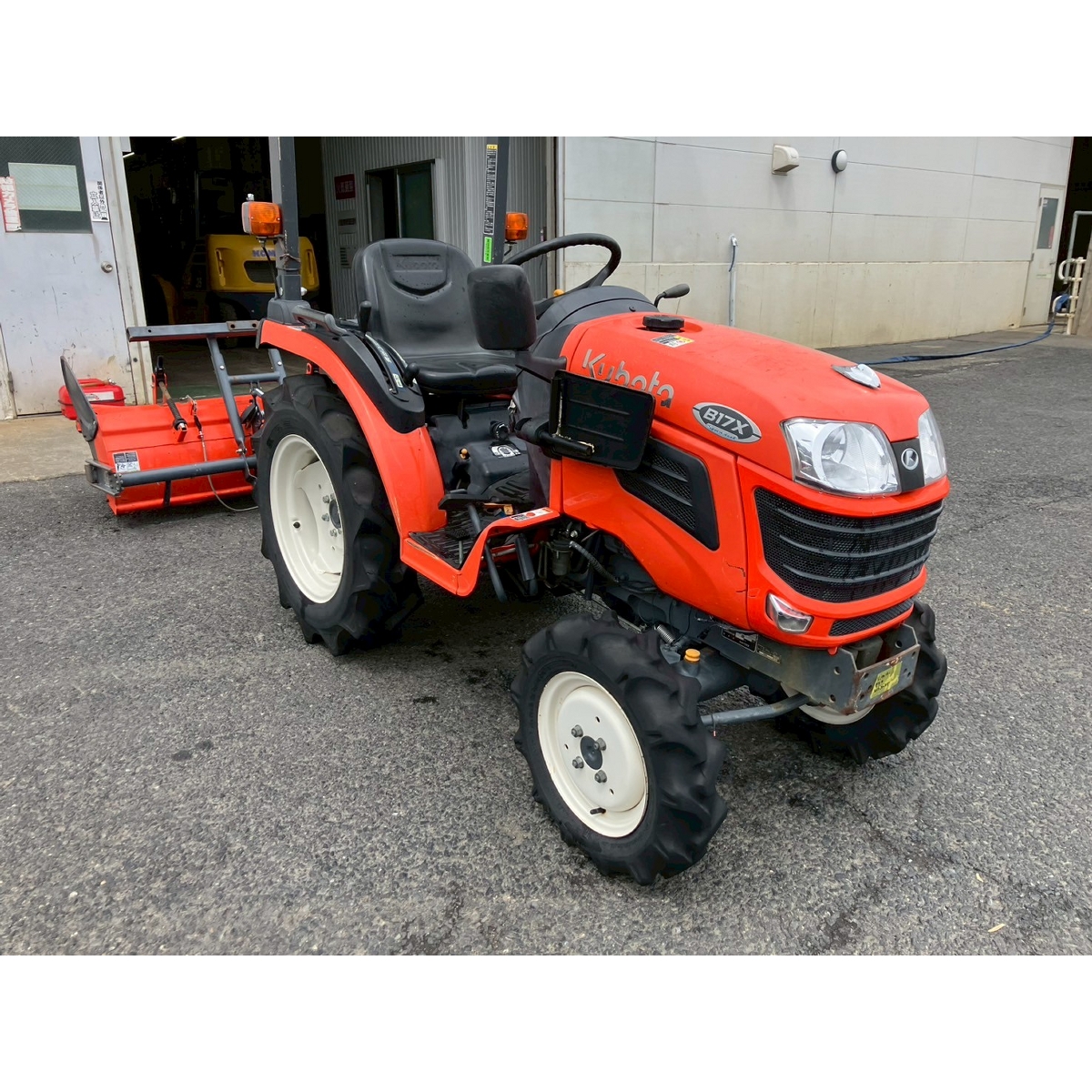

Kubota B17X
Kubota B17X — Sub-Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
575 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine12.5 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power12.5 kWReference
Rated RPM2600Reference
StarterelecttricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM551@2600Reference
Engine RPM967@2600Reference
Engine RPM-540@2600Reference
Dimensions
Wheelbase127 cmReference
Weight575 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length204 cmReference
Width90 cmReference
Height (ROPS)183 cmReference
Ground clearance28 cmReference
Front tread74 cmReference
Rear tread72/76 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
