Tractor · 2007Unverified

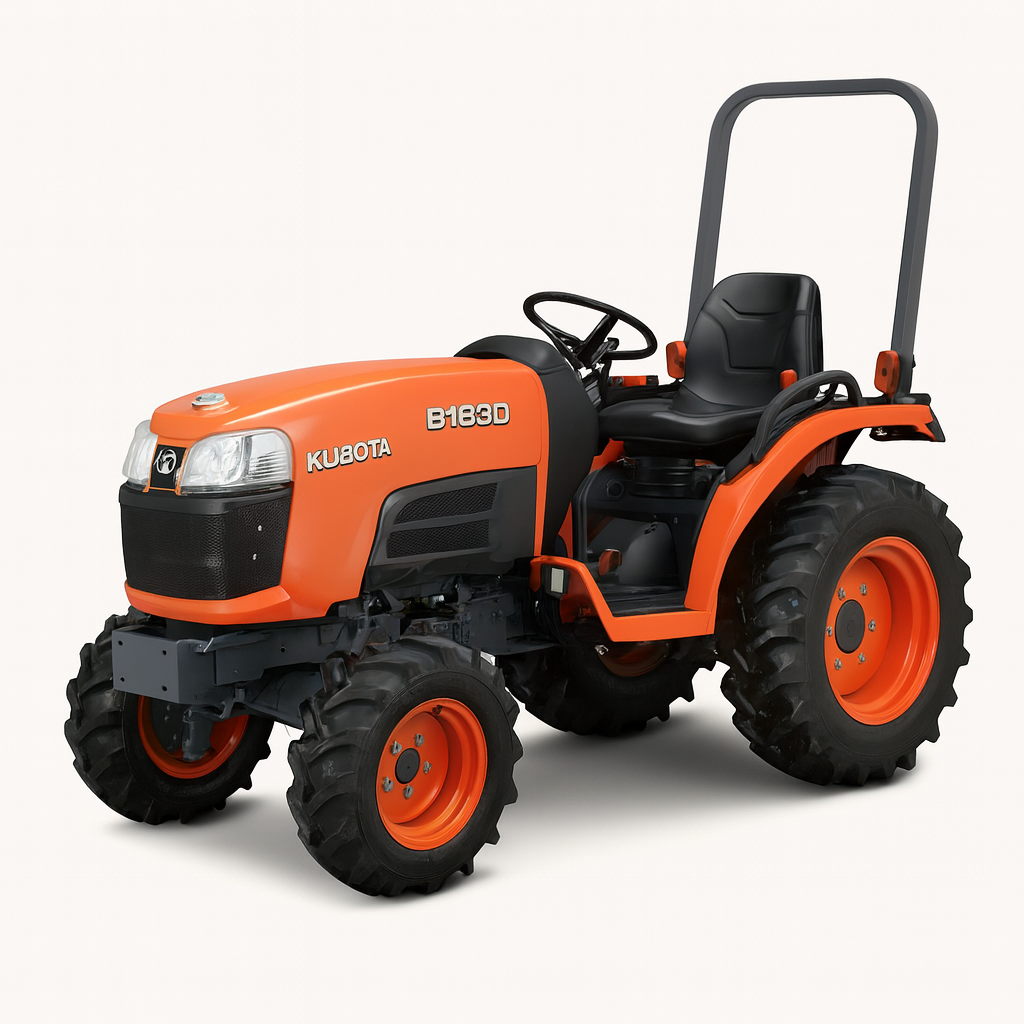

Kubota B1830

Name: Kubota B1830
Brand: Kubota

Kubota B1830 — B30 Series · 18 hp. Reference specifications; pending source verification.

The Kubota B1830 is a tractor model with a rated power output of 18 hp, positioning it at the lighter end of its class. It was manufactured from 2007 to 2013. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a 9-speed gearbox. Its operating weight is listed at 704 kg, with a suitable operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

17.7 hp

Weight

704 kg

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

18 hp

Recorded weight

704 kg

Transmissions

9-speed mechanical shuttle

Production years

2007-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Kubota 0.9L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)13.2 kWReference

Engine (net)12.9 kWReference

Kubota D905Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Bore/Stroke72 x 84 mmReference

Rated Power (net)12.9 kWReference

Power (gross)13.2 kWReference

Air cleanerdry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke2.83x3.29 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears9 forward and reverseReference

Transmission TypeMechanical ShuttleReference

forward and reverse optionsmechanical shuttle - 9F and 9RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)11.0 kWReference

Pressure152.0 barReference

Pump flow20.4 lpmReference

Total flow36.0 lpmReference

Steering flow15.5 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)969 kgReference

Rear PTOtransmissionReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2592Reference

Mid PTOoptionalReference

Mid PTO Type2500 (Kubota 10-tooth #5)Reference

Engine RPM2500@2600Reference

Dimensions

Wheelbase150 cmReference

Weight704 kgReference

Front tire6-12Reference

Rear tire8-16Reference

Standard tires (ag)Front: 6-12. Rear: 8-16Reference

Lawn/turf front22x8.50-12Reference

Lawn/turf rear31x13.5-15Reference

Length273 cmReference

Width102 cmReference

Height (ROPS)224 cmReference

Ground clearance22 cmReference

Front tread83 cmReference

Rear tread80 to 97 cmReference

B1830 Serial Numbers

Location:Serial number plate on the right side of the tractor frame, above and forward of the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Speeds

With 8-16 rear tires. Reverse speeds are 1% faster than forward.Reference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity54.8 ciReference

Power

Max Power17.7 hpReference

Rated Power17.3 hpReference

PTO

PTO Power14.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Rear PTO speed540@2,592 RPMReference

Engine Speed on Mid PTO speed2,500@2,600 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)9.5 gpmReference

Maximum operating pressure2,205 psiReference

Steering & Implements flow4.1 gpm (5.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity969.8 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS224 cmReference

Overall Length273.6 cmReference

Overall Width102.6 cmReference

Overall weight704.9 kgReference

Wheels & tyres

Rear Wheel Type45,520Reference

Rear wheel tread range31.5 to 38.2 inchesReference

Front Wheel Type6-12.Reference

Front Wheel tread range83.6 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
