Tractor · 1981Unverified
Kubota B1902
Kubota B1902 — B02 Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1587 to 1664 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Open operator station.Reference
Variants
B1902E2WDReference
B1902DT4WDReference
ZB1902Zennoh CO-OP versionReference

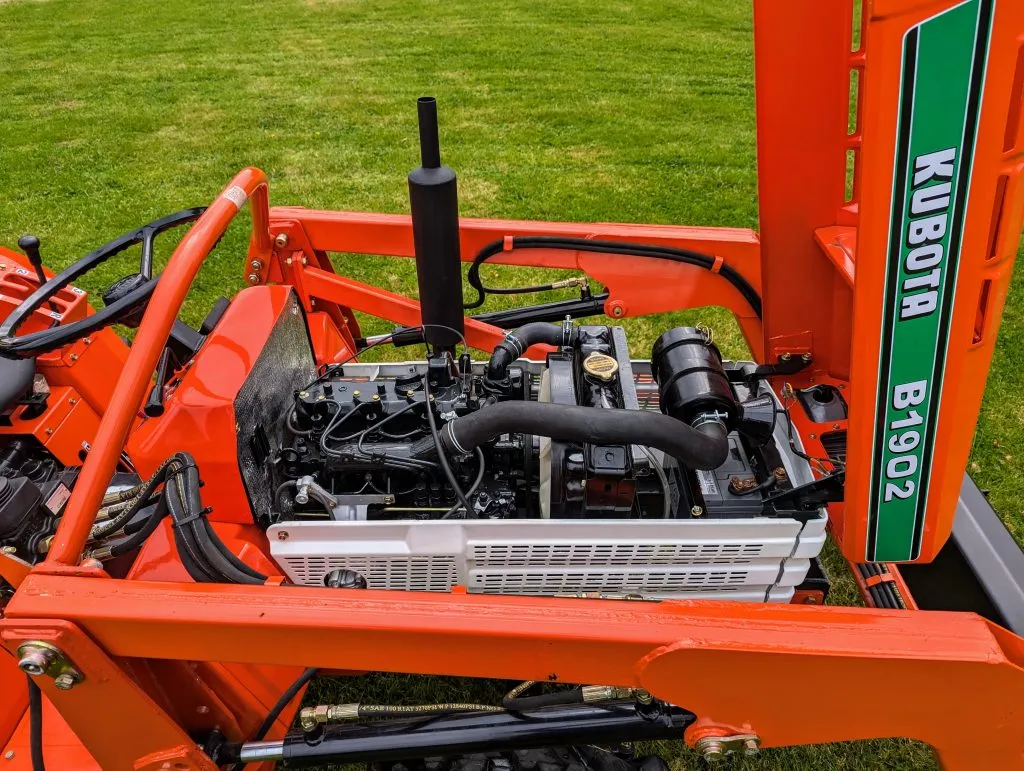

Engine
Kubota 1.1L 3-cyl dieselReference
Engine13.9 kWReference
Kubota DM1102Reference
dieselReference
3-cylinder 6-valveReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke76 x 82 mmReference
Power13.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase145 cmReference
Weight1587 to 1664 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length242 cmReference
Width107 cmReference
Height189 cmReference
2WD Weight719 kgReference
4WD Weight754 kgReference
2WD Ground clearance30 cmReference
4WD Ground clearance24 cmReference
2WD Front tread79 cmReference
4WD Front tread87 cmReference
Rear tread90/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
