Tractor · 1995Unverified

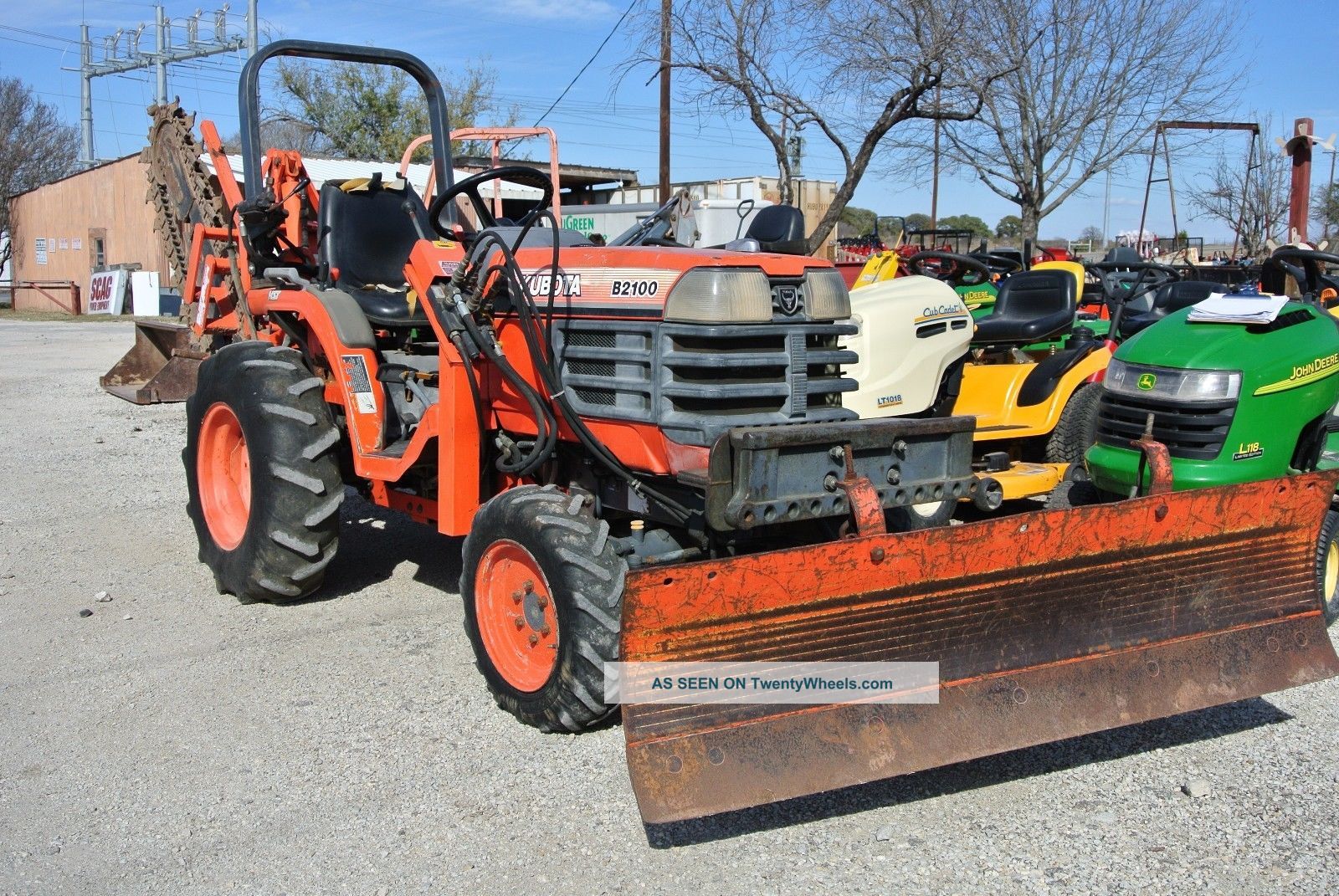

Kubota B2100
Kubota B2100 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
680 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Engine (gross)15.7 kWReference
Kubota D1005-D10Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power (gross)15.7 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Torque59.7 NmReference
Starter volts12Reference
Oil capacity3.4 LReference
Coolant capacity3.4 LReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity6.0 LReference
PTO & Hydraulics
Gear PTO (claimed)12.7 kWReference
Hydro PTO (claimed)11.9 kWReference
Hydraulic system11.0 LReference
Typeopen centerReference
Capacity11.0 LReference
Pump flow22.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)580 kgReference
Rear lift (at 24"/610mm)460 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2584Reference
Mid PTO Type2537Reference
Engine RPM2537@2600Reference
Capacities
Fuel23.8 LReference
Dimensions
Wheelbase149 cmReference
Weight680 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12 (4WD)Reference
Ag rear9.5-16Reference
Length230 cmReference
Width107 cmReference
Height131 cmReference
Height (ROPS)194 cmReference
Ground clearance30 cmReference
4WD Front tread83 cmReference
Rear tread83 to 100 cmReference
Kubota B2100 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
B2100 Serial Numbers
Location:Clutch/transmission case on right side.Reference
Electrical
GroundnegativeReference
Battery CCA390Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
Kubota B4672 Backhoe
Backhoe typeKubota B4672 BackhoeReference
Speeds
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
